Home/Catalogue/TP-Link/IES208G
Drag to turn · 5 views
TP-LinkNetwork Switches

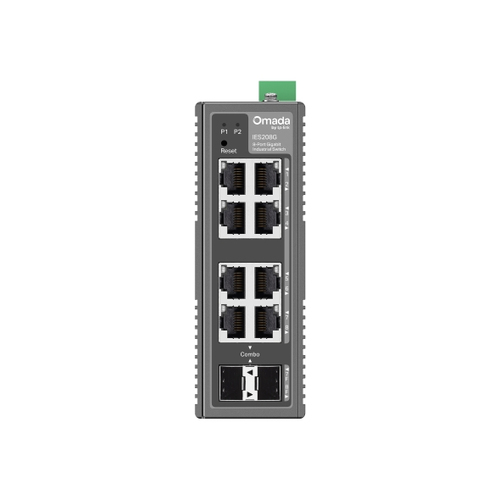

Omada 8Port Gigabit Industrial Easy Managed Switch
- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Enhanced Networking Stability and Security
01
1+1 Redundant Power Input
Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Easy Operation and Maintenance with Omada’s Free Cloud Management
Specifications
Management features
- Switch type
- Managed
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
- Cloud-managed
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity
- 2
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
- Auto-negotiation
- Yes
Data transmission
- Switching capacity
- 16 Gbit/s
- Forwarding rate
- 11.9 Mpps
- MAC address table
- 8000 entries
- Jumbo frames support
- Yes
- Jumbo frames
- 15000
Security
- IGMP snooping
- Yes
- Static port security
- Yes
Design
- Wall mountable
- Yes
- DIN rail mounting
- Yes
Power
- Power source
- DC
- Redundant power supply (RPS) support
- Yes
- DC input voltage
- 9.6 - 60 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Weight & dimensions
- Width
- 129 mm
- Depth
- 95 mm
- Height
- 45 mm
Downloads
