TP-LinkNetwork Switches
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
01
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
02
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
03
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
04
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
05
- PoE Auto Recovery
Multiple Application Scenarios
06
Surveillance
Works with IP Cameras
07
Conference Call
Works with IP Phones
08
Wi-Fi Coverage
Works with Access Points
09
Wired Connections
10
Works with Non-PoE Devices such as PCs and Printers
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Specifications
Management features
- Switch type
- Managed
- Quality of Service (QoS) support
- Yes
- Cloud-managed
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
- 10G support
- No
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- MTU VLAN, Port-based VLAN, Tagged VLAN
Optical fiber
- Transmission distance (max)
- 0.25 km
Data transmission
- Switching capacity
- 10 Gbit/s
- Forwarding rate
- 7.4 Mpps
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 15
- Packet buffer memory
- 4 MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Loop protection
- Yes
Design
- Product colour
- Black
- Reset button
- Yes
- LED indicators
- Yes
- Wall mountable
- Yes
Performance
- Fanless
- Yes
Power
- Power source
- AC/DC
- Power supply included
- Yes
- DC input voltage
- 53.5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 65 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 100 mm
- Depth
- 98 mm
- Height
- 25 mm
Packaging content
- User guide
- Yes
Packaging data
- Package type
- Box
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
More in Switches 4 to 10 Ports
TP-LinkOmada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot PORTES206X-M2

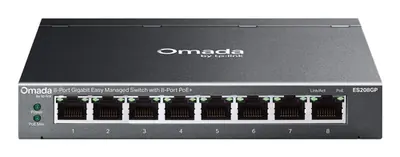

TP-LinkOmada 8Port Gigabit Easy Managed Switch with 8Port PoE+. PORT: 8 GigabES208GP
TP-LinkOmada 5Port Gigabit Smart Switch with 1Port PoE++ In and 4Port PoE+ OuSG2005P-PD
TP-Link8 10/100/1000 Mbps RJ45 Ports (Ports 1?4 Support 802.3at/af PoE+). L2/SG2008P
TP-Link8 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/ASG2210MP

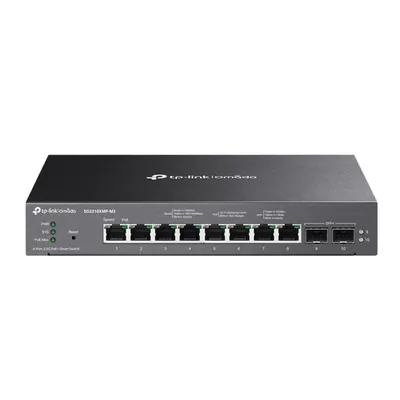

TP-LinkOmada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port SG2210XMP-M2
TP-LinkOmada 8-Port 2.5GBASE-T L2+ Managed Switch with 2 10GE SFP+ Slots PORTSG3210X-M2

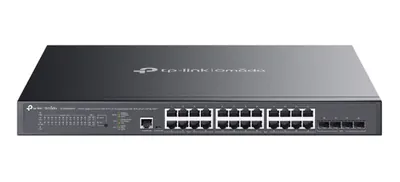

TP-LinkOmada 24Port Gigabit and 4Port 10GE SFP+ L2+ Managed Switch with 16PorSG3428XMPP
