Home/Catalogue/TP-Link/IES206GPP
Drag to turn · 4 views
TP-LinkNetwork Switches

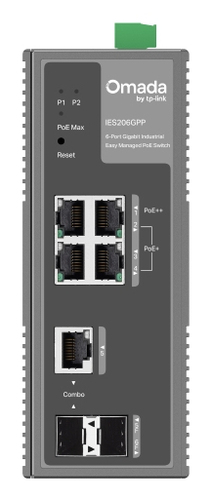

Omada 6Port Gigabit Industrial Easy Managed Switch with 3Port PoE+ and 1Port PoE++
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Industrial-Grade Protection Built for Harsh Environments
01
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
Specifications
Management features
- Switch type
- Managed
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity
- 1
- SFP module slots quantity
- 1
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- 10G support
- No
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Auto-negotiation
- Yes
Data transmission
- Switching capacity
- 12 Gbit/s
- Forwarding rate
- 8.93 Mpps
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 15000
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Black
- Wall mountable
- Yes
- DIN rail mounting
- Yes
Performance
- Fanless
- Yes
Power
- Power source
- DC/PoE
- Redundant power supply (RPS) support
- Yes
- DC input voltage
- 12 - 57 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) type supported
- PoE+, PoE++ (4PPoE)
- Power over Ethernet plus (PoE+) ports quantity
- 3
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 1
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 120 W
Operational conditions
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 155 mm
- Depth
- 120 mm
- Height
- 60 mm
Packaging content
- Quick start guide
- Yes
Certificates
- Certification
- FCC, CE, RoHS
Downloads
