TP-LinkNetwork Switches

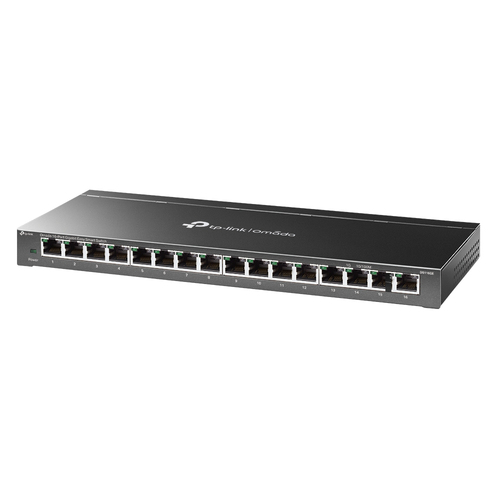

Omada 16Port Gigabit Easy Smart SwitchPORT: 16 Gigabit RJ45 PortsSPEC: Desktop Steel CaseFEATURE
- 16× 10/100/1000Mbps RJ45 ports
- Plug and play for instant connectivity
- Simple configuration via web-based user interface and management utility*
- Durable metal casing of superior quality and professional appearance
- Green technology reduces power consumption
- Note: This Omada Easy Smart switch does not support Omada SDN central management
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Omada 16Port Gigabit Easy Smart SwitchPORT: 16 Gigabit RJ45 PortsSPEC: Desktop Steel CaseFEATURE: MTU/Port/Tagbased VLAN, QoS, IGMP Snooping, Web/Utility Management, Plug and Play
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 16
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- AC-in jack
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Auto-negotiation
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, Tagged VLAN
- Number of VLANs
- 32
Data transmission
- Switching capacity
- 32 Gbit/s
- Forwarding rate
- 23.81 Mpps
- MAC address table
- 8000 entries
- Store-and-forward
- Yes
- Number of queues
- 4
- Jumbo frames support
- Yes
- Jumbo frames
- 9
- Packet buffer memory
- 4.1 MB
Security
- IGMP snooping
- Yes
- Loop protection
- Yes
- Queue scheduling algorithms
- Priority queuing (PQ)
Design
- Product colour
- Black
- Housing material
- Steel
- Reset button
- Yes
- LED indicators
- Yes
Performance
- Fanless
- Yes
Power
- Power source
- AC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Power consumption (max)
- 9.19 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 31.36 BTU/h
Weight & dimensions
- Width
- 268 mm
- Depth
- 111.7 mm
- Height
- 25.4 mm
Packaging content
- Cables included
- Power
- User guide
- Yes
- Rack mount kit
- Yes
Packaging data
- Rubber feet
- Yes
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), Industry Canada (IC), RoHS
