TP-LinkNetwork Switches

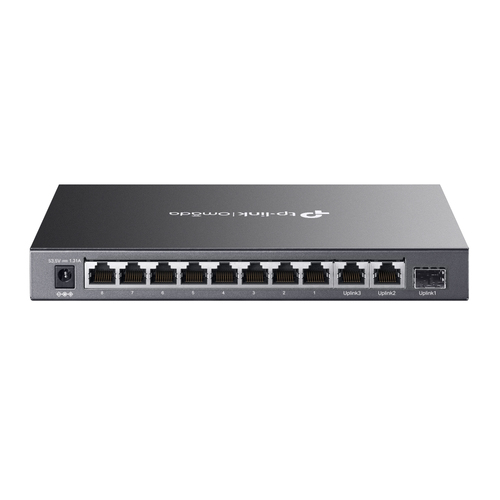

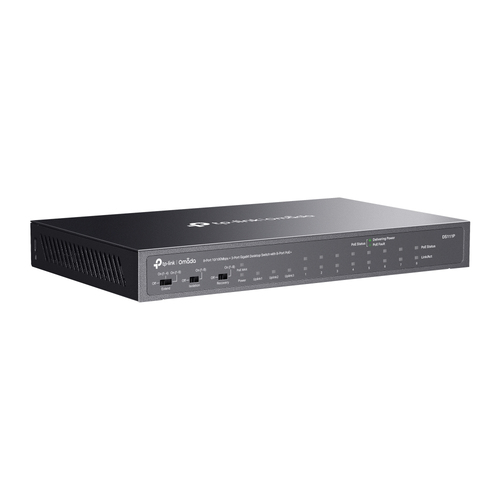

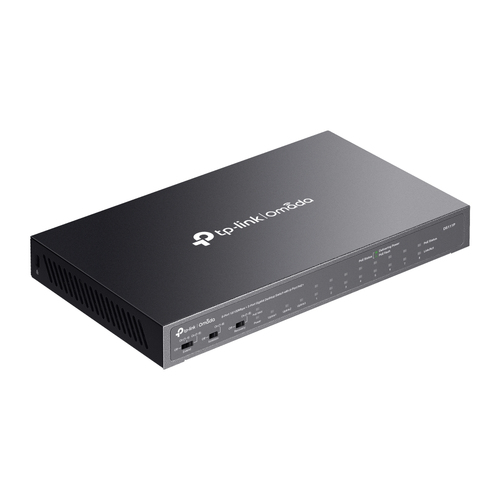

Omada 8Port 10/100Mbps + 3Port Gigabit Desktop Switch with 8Port PoE+ PORT: 8 10/100 Mbps PoE+
- 8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports
- Up to 250 m (802 ft) data and power transmitting range under Extend Mode
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Omada 8Port 10/100Mbps + 3Port Gigabit Desktop Switch with 8Port PoE+ PORT: 8 10/100 Mbps PoE+ Ports, 2 Gigabit NonPoE Ports, 1 Gigabit SFP Slots SPEC: 802.3at / af, 65 W PoE Power, Desktop Steel Case FEATURE: Extend Mode for 250m PoE Transmitting, Isolation Mode, PoE Auto Recovery, Plug and Play
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 10
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- Fast Ethernet (copper) ports quantity
- 8
- Gigabit Ethernet (copper) ports quantity
- 2
- SFP module slots quantity
- 1
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100 Mbit/s
- Auto-negotiation
- Yes
- MAC address auto-learning supported
- Yes
- MAC address auto-aging supported
- Yes
Data transmission
- Switching capacity
- 7.6 Gbit/s
- Forwarding rate
- 5.6544 Mpps
- MAC address table
- 2000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 16
Design
- Product colour
- Black
- Housing material
- Metal
- LED indicators
- Activity, Link, PoE, Power
- Wall mountable
- Yes
Performance
- Fanless
- Yes
Power
- Power source
- DC
- Power supply included
- Yes
- DC input voltage
- 53.5 V
- Input current
- 1.31 A
- Power consumption (max)
- 77.32 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 8
- Power over Ethernet (PoE) power per port
- 30 W
- Total Power over Ethernet (PoE) budget
- 65 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 263.7 BTU/h
Weight & dimensions
- Width
- 209 mm
- Depth
- 126 mm
- Height
- 26 mm
Packaging content
- Cables included
- Power
- User guide
- Yes
Packaging data
- Rubber feet
- Yes
Certificates
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
