TP-LinkNetwork Switches

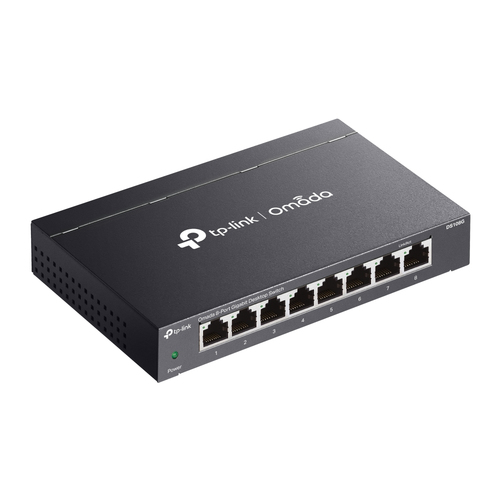

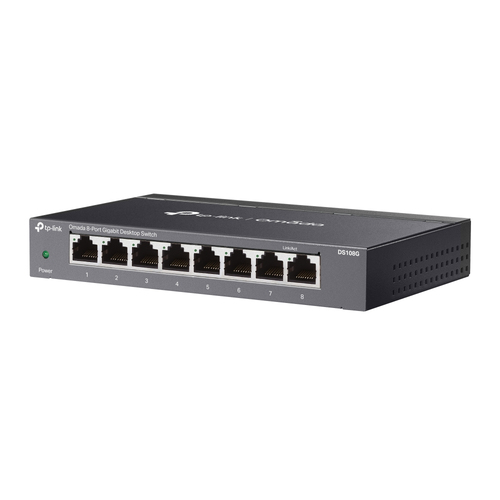

Omada 8-Port Gigabit Desktop Switch PORT: 8 Gigabit RJ45 Port SPEC: Desktop Steel Case FEATURE: Plug and Play
- 8× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer

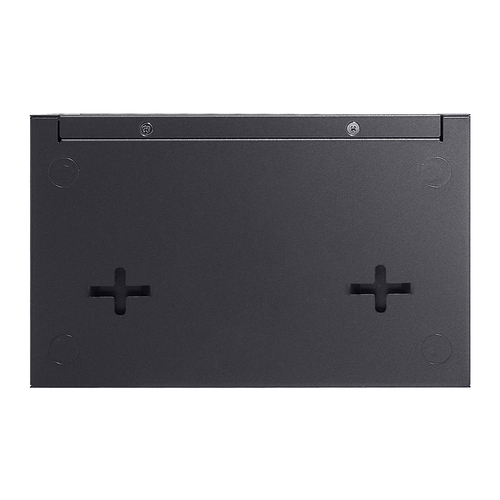

- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, no configuration needed
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 8
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)

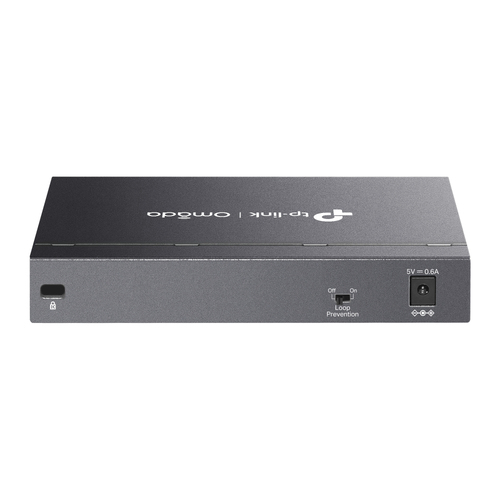

- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Auto-negotiation
- Yes
Data transmission
- Switching capacity
- 16 Gbit/s
- Forwarding rate
- 11.9 Mpps
- MAC address table
- 4000 entries
- Store-and-forward
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 16
Security
- IGMP snooping
- Yes
- Loop protection
- Yes
Design
- Product colour
- Black
- Housing material
- Metal
- Reset button
- Yes
- LED indicators
- Activity, Link, Power
- Wall mountable
- Yes
Performance
- Fanless
- Yes
Power
- Power source
- DC
- Power supply included
- Yes
- DC input voltage
- 5 V
- Input current
- 0.6 A
- Power consumption (max)
- 3.92 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 13.37 BTU/h
Weight & dimensions
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 25 mm
Packaging content
- Cables included
- Power
- User guide
- Yes
Certificates
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
