TP-LinkNetwork Switches

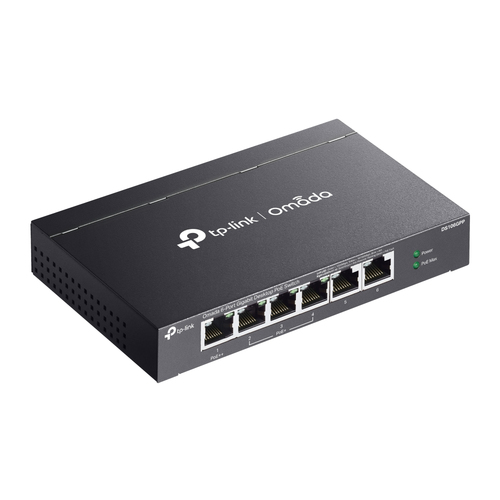

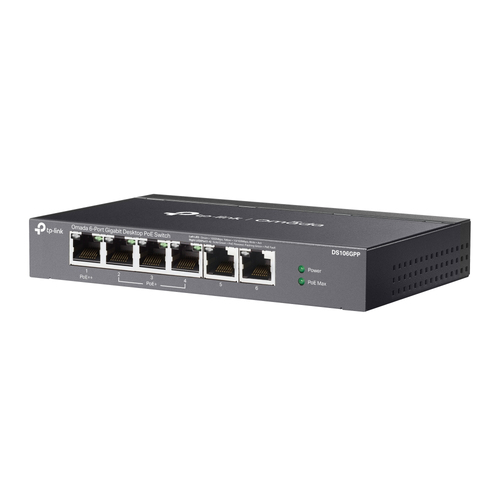

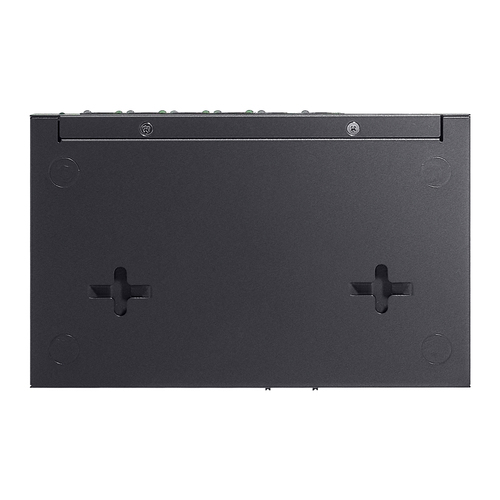

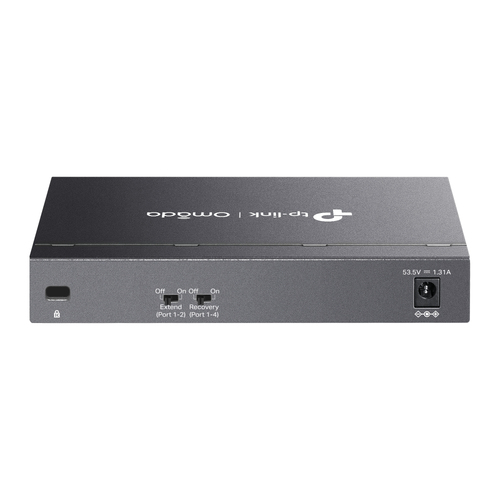

Omada 6Port Gigabit Desktop Switch with 3Port PoE+ and 1Port PoE++PORT: 1 Gigabit PoE++ Port, 3
- 6× 10/100/1000 Mbps RJ45 ports
- With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
- Supports PoE Power up to 64 W for all PoE ports
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Omada 6Port Gigabit Desktop Switch with 3Port PoE+ and 1Port PoE++PORT: 1 Gigabit PoE++ Port, 3 Gigabit PoE+ Ports, 2x Gigabit NonPoE PortsSPEC: 802.3af/at/bt type3, 64 W PoE Power, Desktop Steel CaseFEATURE: Extend Mode for 250m PoE Transmitting for Port12, PoE Auto Recovery for Port14, Plug and Play
Specifications
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 6
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- Power connector
- DC-in jack
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Auto-negotiation
- Yes
Data transmission
- Switching capacity
- 12 Gbit/s
- Forwarding rate
- 8.928 Mpps
- MAC address table
- 4000 entries
- Store-and-forward
- Yes
Security
- IGMP snooping
- Yes
Design
- Product colour
- Black
- Housing material
- Steel
- Reset button
- Yes
Performance
- Fanless
- Yes
Power
- Power source
- AC/DC
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50/60 Hz
- Input voltage
- 53.5 V
- Power consumption (max)
- 71.46 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) ports quantity
- 4
- Power over Ethernet plus (PoE+) ports quantity
- 3
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 1
- Power over Ethernet (PoE) power per port
- 64 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 243.68 BTU/h
Weight & dimensions
- Width
- 158 mm
- Depth
- 101 mm
- Height
- 25 mm
Packaging content
- Cables included
- Power
- User guide
- Yes
Packaging data
- Rubber feet
- Yes
Certificates
- Compliance certificates
- CE, EAC, Federal Communications Commission (FCC), Industry Canada (IC), RoHS, UKCA
