TP-LinkOptical Line Terminals (OLTs)

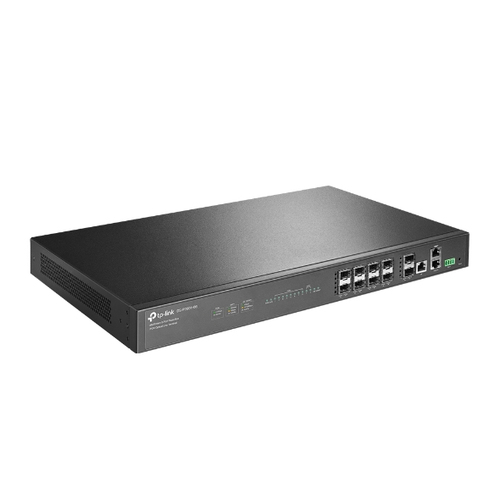

DeltaStream 8-port Pizza-box GPON Optical Line Terminal
- 8 GPON Ports: Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device
- High-Speed Uplink Ports: Provides 2× 10GE SFP+ ports and 1× gigabit uplink port
- Redundant Dual Power Supplies: Carrier-class reliability with dual hot-swapping AC+DC power supplies
- Complete L2 & Advanced L3 Functions: Satisfies the need for numerous commercial requirements
- Centralized Management: Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
- Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more meet the requirement for different applications
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
8-Port GPON Optical Line Terminal
8 GPON Ports,
01
Supports 1024 ONUs
Supports 1:128 splitting ratio for every port—up to 1024 ONTs by one device.
02
Free Centralized Management
03
Via DeltaStream PON Management System (DPMS)
Easy maintenance and centralized management makes your life a breeze. Configure and update all your devices at once via DeltaStream PON Management System (DPMS), SNMP, CLI and Web UI.
04
- No Additional Expense
05
- Improve Management Efficiency And Reduce Maintenance Costs
- The Easy-to-Use Dashboard Ensures Hassle-Free Configuration
06
Compact Size, Flexible Deployment
Mount in a rack for flexible deployment with all your other products.
07

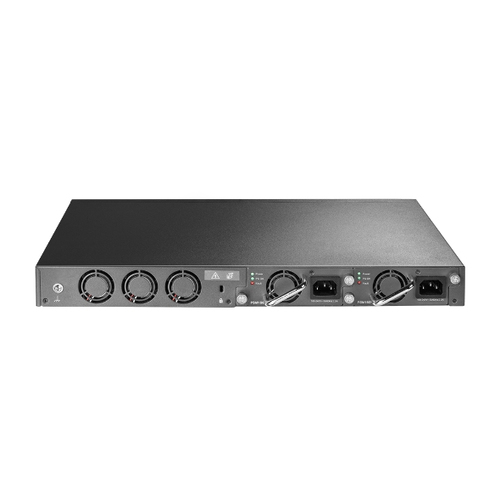

Constant Reliability Through Dual Redundant Power Supplies
Dual redundant power supplies ensures carrier-class reliability. AC, DC and mixed power input supported.
Specifications
Features
- Static route
- Yes
- DHCP server
- Yes
- DHCP relay
- Yes
- IGMP snooping
- Yes
- Multicast Listener Discovery (MLD) snooping
- Y
- Quality of Service (QoS) support
- Yes
- GPON split ratio (max)
- 1:128
- Maximum operating distance (GPON)
- 20000 m
- Access Control List (ACL)
- Yes
Ports & interfaces
- Upstream ports
- Gigabit Ethernet
- Ethernet LAN (RJ-45) ports
- 2
- GPON ports quantity
- 8
- SFP/SFP+ slots quantity
- 2
Power
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- DC voltage range
- 38.4 - 72 V
- Power consumption (max)
- 70 W
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 440 mm
- Depth
- 260 mm
- Height
- 44 mm
