10 Outlet Rack Mount Power Strip 125V/16 Amp - 1U Horizontal 19" Rackmount PDU - NEMA 5-20P Input
- 10x 5-15/20R outlet 1U rack mount power strip
- Power Specs: 16 Amps | Max Input/Output: 125V | 8ft long NEMA 5-20P to IEC 60320 C19 power cord | UL Listed PDU
- Rackmount PDU (Power Distribution Unit) is compatible with all 19" server/network racks and cabinets 4" or deeper incl. StarTech.com's 2-post/4-post racks
- Rack-mountable power bar for 19 inch Racks | Front Power Switch | Horizontal Mount | Built-in 20A Circuit Breaker | Mounting Holes
- 2-year StarTech.com warranty
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Rackmount PDU | 16 Amps | 10 Outlets | UL Listed | For 2-Post or 4-Post Racks

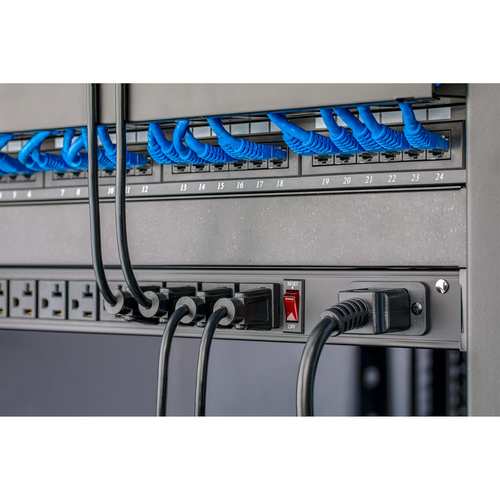

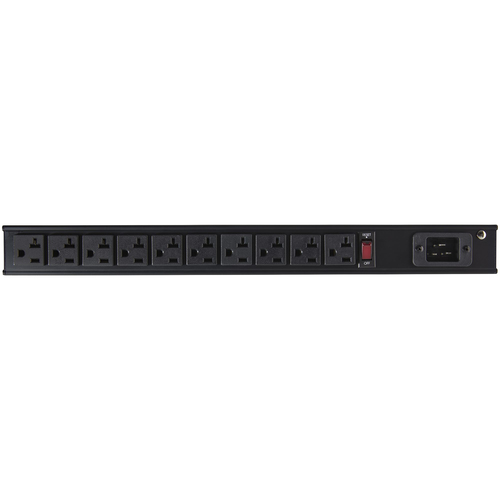

This 10-outlet (125V 16A) Rack PDU delivers a power distribution solution for your server rack/cabinet. The business-grade 1U power distribution unit can be mounted horizontally in any 19 inch server rack 4" in depth or greater, to provide ten 125V (16A) power outlets. You can access ten plugs on the front of the horizontal-mount network rack PDU.
Consolidate Power Sources
This power distribution system consolidates your power source and enables you to control all powered devices from one switch. The front of the rackmount power strip features two LEDs that indicate proper ground and surge detection, while enabling you to control the power state with an illuminated power/reset switch. This PDU includes an 8 ft long power cord.
Built to Last
To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in 20 Amp (20A) circuit breaker and reset switch, ensuring dependable performance of vital equipment. To ensure maximum durability, the power distribution unit itself features a rugged steel casing.
This RKPW101920 rack mount power strip is backed by a 2-year StarTech.com warranty with free technical support.
Specifications
Design
- Rack mounting
- Yes
- Rack capacity
- 1U
- Mounting
- Horizontal
- Product colour
- Black
- On/off switch
- Yes
Ports & interfaces
- AC outlets quantity
- 10 AC outlet(s)
- Power plug
- C20 coupler
- AC outlet types
- C19 coupler, NEMA 5–20R
Features
- Cable length
- 2.4 m
Power
- Nominal input voltage
- 125 V
- Maximum current
- 20 A
- Nominal output voltage
- 125 V
- Output voltage
- 125 V
- Load capacity
- 2500 VA
- Maximum input current per phase
- 20 A
Certificates
- Compliance certificates
- RoHS
Sustainability
- Sustainability certificates
- UL ECOLOGO
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 445 mm
- Depth
- 130 mm
- Height
- 50 mm
- Weight
- 1.2 kg
Packaging content
- Cables included
- AC
- Manual
- Yes
- Packaging content

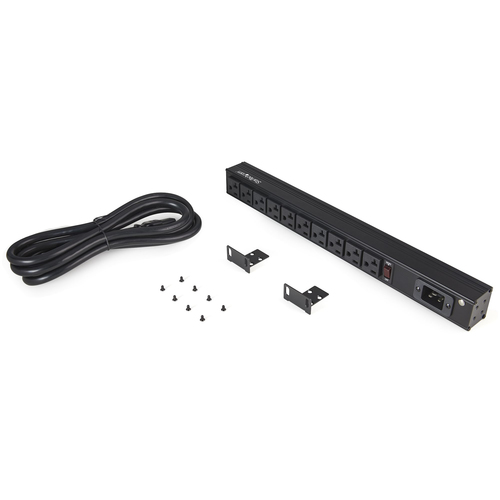

- 8 ft NEMA 5-20P to IEC 60320 C19 Power Cord
Packaging data
- Package weight
- 1.2 kg
- Package width
- 559 mm
- Package depth
- 159 mm
- Package height
- 101 mm
Logistics data
- Master (outer) case width
- 580 mm
- Master (outer) case length
- 527 mm
- Master (outer) case height
- 356 mm
- Products per master (outer) case
- 10 pc(s)
