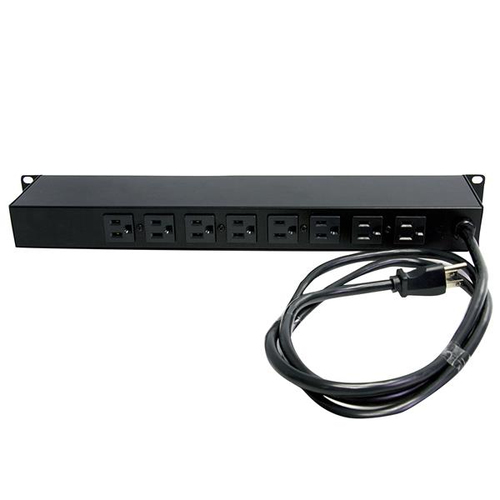

Rackmount PDU with 8 Outlets and Surge Protection - 1U
- Organize and add additional power outlets to your rack solution
- Compatible with StarTech.com 4POSTRACKBK
- 1U Server Rack PDU/Rackmount Power Distribution Unit/8 Outlet Rack Mount Power Strip
- Integrated 6ft power cord
- LED indicators for ground and surge detection
- Illuminated power and reset switch
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Protect your equipment while adding eight additional power outlets to your server rack, with this 19in power distribution unit
This 8-outlet (120V 15A)(12A UL) Rack PDU delivers a cost-effective power distribution solution for your server rack/cabinet. The 1U PDU can be mounted horizontally in any server rack 4in in depth or greater, to provide eight 120V 15A power ports/outlets, and features a rugged steel casing to ensure maximum durability.
The front of the PDU features two LEDs to indicate proper ground and surge detection while enabling you to control the power state with an illuminated power/reset switch.
To prevent costly breakdowns of connected devices, the rackmount PDU features a built-in circuit breaker and reset switch, ensuring dependable performance of vital equipment.
Specifications
Design
- Rack capacity
- 1U
- Mounting
- Horizontal
- Housing material
- Steel
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- NEMA 5–15
- AC outlet types
- NEMA 5–15
Features
- LED indicators
- Yes
- Cable length
- 1.8 m
Power
- Nominal input voltage
- 120 V
- Maximum current
- 15 A
- Nominal output voltage
- 120 V
- Output voltage
- 125 V
- Load capacity
- 1800 VA
- Maximum total current draw per phase
- 15 A
- Surge energy rating
- 1800 J
Certificates
- Compliance certificates
- RoHS
- Certification
- UL, REACH
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
Weight & dimensions
- Width
- 96 mm
- Depth
- 483 mm
- Height
- 43 mm
- Weight
- 1.9 kg
Packaging content
- Manual
- Yes
Packaging data
- Package weight
- 2.2 kg
- Package width
- 521 mm
- Package depth
- 233 mm
- Package height
- 62 mm
Logistics data
- Master (outer) case width
- 539 mm
- Master (outer) case length
- 282 mm
- Master (outer) case height
- 371 mm
- Products per master (outer) case
- 6 pc(s)
