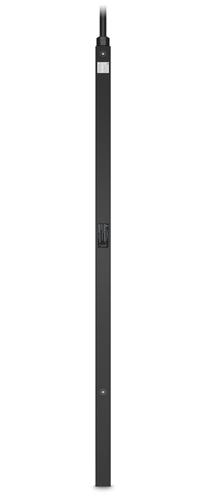

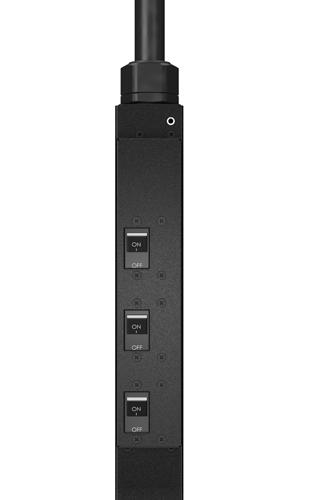

Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (7) C13, (2) C19
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Total Cost of Ownership
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Marketing Features
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specifications
Design
- PDU types
- Basic
- Mounting
- Vertical
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 27 AC outlet(s)
- AC outlet types
- C13 coupler, C19 coupler
- Input connection type
- IEC 309 60A 3P+PE
Features
- Cable length
- 3.05 m
Power
- Nominal input voltage
- 208 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 60 A
- Nominal output voltage
- 208 V
- Maximum input current per phase
- 60 A
- Maximum total current draw per phase
- 60 A
Certificates
- Compliance certificates
- RoHS
- Certification
- cUL, UL
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -15 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
Weight & dimensions
- Width
- 56 mm
- Depth
- 43 mm
- Height
- 1626 mm
- Weight
- 9.18 kg
Packaging data
- Package weight
- 11 kg
- Package width
- 226 mm
- Package depth
- 135 mm
- Package height
- 1875 mm
