APCPower Distribution Units (PDUs)

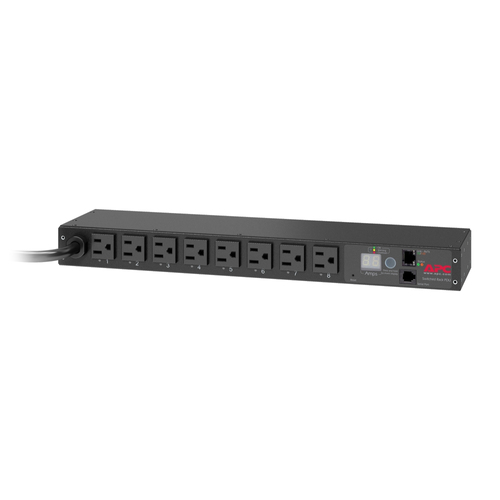

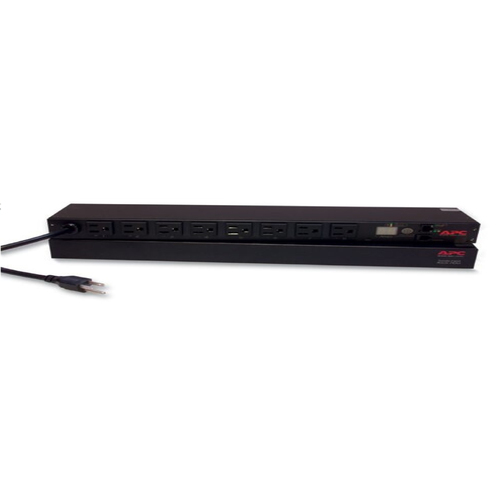

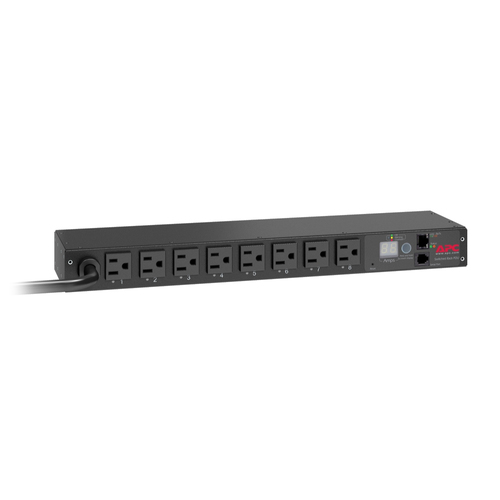

NetShelter Switched Rack PDU, 1U, 1.4kW, 120V, 15A, 8 NEMA 5-15R outlet
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
This APC Switched Rack PDU AP7900B power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)5-15. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Specifications
Design
- PDU types
- Switched
- Rack capacity
- 1U
- Mounting
- Horizontal
- Product colour
- Black
Ports & interfaces
- AC outlets quantity
- 8 AC outlet(s)
- Power plug
- NEMA 5–15P
- AC outlet types
- NEMA 5–15P
Features
- LED indicators
- Yes
- Cable length
- 3.65 m
Power
- Nominal input voltage
- 100 - 120 V
- AC input frequency
- 50 - 60 Hz
- Maximum current
- 15 A
- Nominal output voltage
- 120 V
- Maximum total current draw per phase
- 15 A
Certificates
- Compliance certificates
- RoHS
- Certification
- UL/cUL, PSE, FCC Part 15 Class A, IC ES-003 Class A, VCCI Class A
Operational conditions
- Operating temperature (T-T)
- -5 - 45 °C
- Storage temperature (T-T)
- -25 - 65 °C
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 23 - 113 °F
Weight & dimensions
- Width
- 444.5 mm
- Depth
- 108 mm
- Height
- 44.5 mm
- Weight
- 2.26 kg
Packaging data
- Package weight
- 3.4 kg
Logistics data
- Total carbon footprint (kg of CO2e)
- 915.89
Downloads
