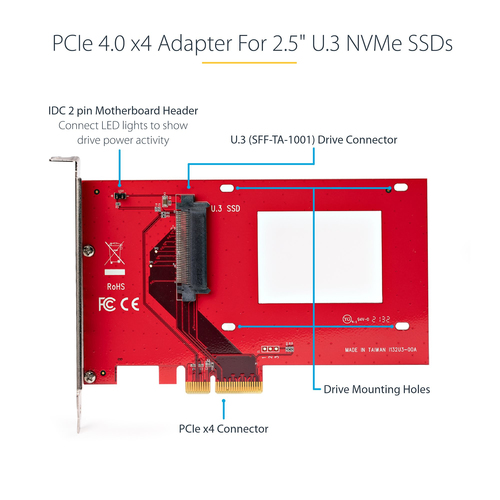

U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express
- Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws
- Supports SFF-TA-1001 drives up to 15mm in height
- Backwards compatible with PCI Express 3.0 motherboards
- Not compatible with U.2 drives

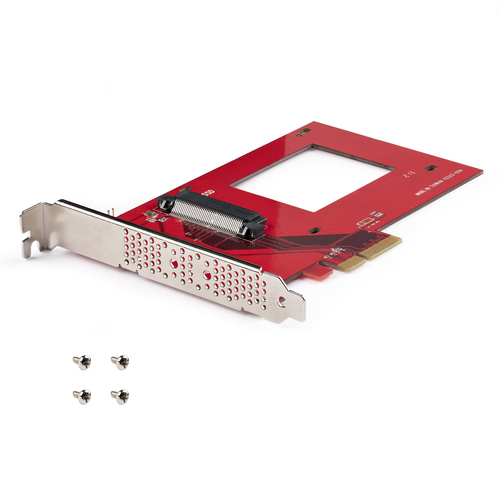

- Vented full-profile bracket and hollow PCB allow for better airflow and heat dissipation

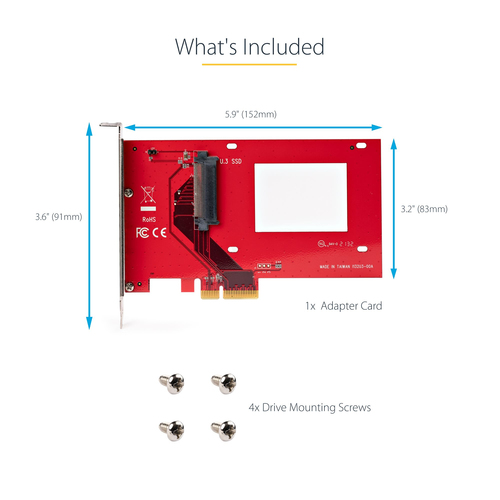

- Pre-installed full-profile bracket and included drive mounting screws
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

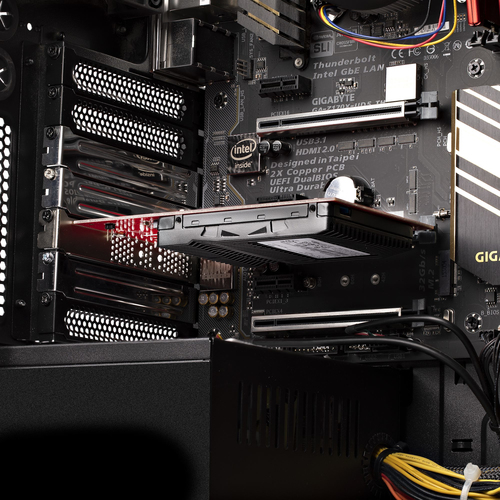

Mount a 2.5" U.3 NVMe SSD into a desktop computer or server, utilizing a PCIe x4 expansion slot
Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

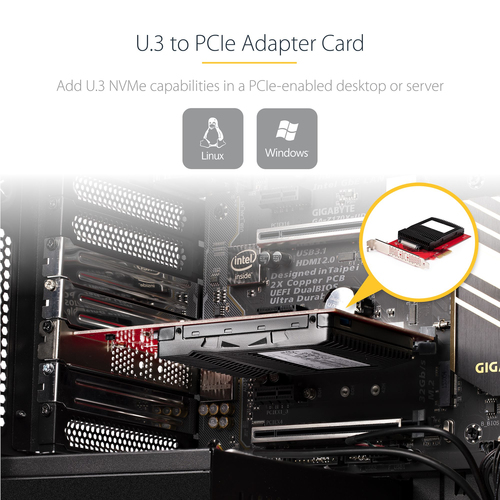

Add U.3 Capabilities to a Desktop or Server
Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.
Universal Compatibility
The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.
Optimal Airflow and Reliable Performance
The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.
Specifications
Ports & interfaces
- Host interface
- PCIe
- Output interface
- U.3
Design
- Internal
- Yes
- Product colour
- Red
- LED indicators
- Activity, Power
- Mean time between failures (MTBF)
- 21693912 h
- Hot-swap
- No
Features
- Plug and Play
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -40 - 80 °C
- Operating relative humidity (H-H)
- 20 - 80%
System requirements
- Supported storage drive heights
- 5,7,9.5,12.5,15 mm
Weight & dimensions
- Width
- 90 mm
- Depth
- 154 mm
- Height
- 1.5 mm
- Weight
- 62 g
Packaging data
- Screws included
- Yes
- Quick installation guide
- Yes
- Package width
- 220 mm
- Package depth
- 158 mm
- Package height
- 33 mm
- Package weight
- 130 g
Logistics data
- Products per master (outer) case
- 60 pc(s)
- Master (outer) case width
- 455 mm
- Master (outer) case length
- 340 mm
- Master (outer) case height
- 495 mm
