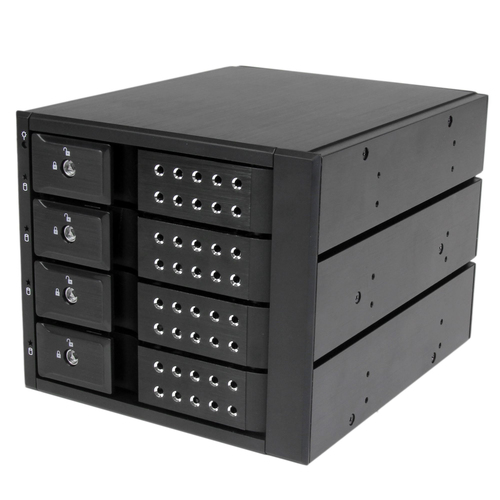

4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
- Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25" bays, with support for SATA 6 Gbps
- Compatible with Servers and Desktop computers with 3 available 5.25in bays and SATA or SAS hard drives
- Trayless SATA Backplane/Hot Swap Bay/Backplane/Mobile Rack/SATA 6 Gbps/Key Lock/70mm Fan
- Onsite data backup as a secure alternative to cloud storage
- Add a hot-swap bay to a server or workstation computer that you can use as a removable backup
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

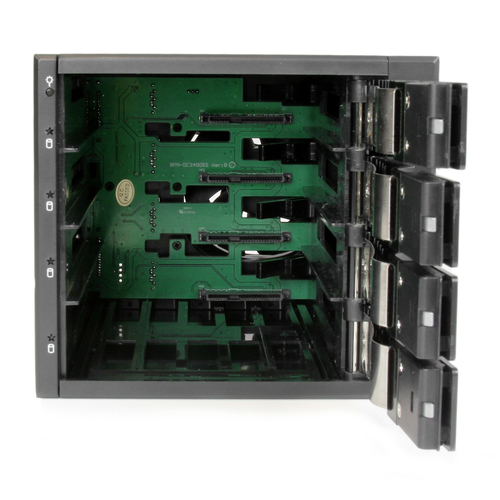

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.

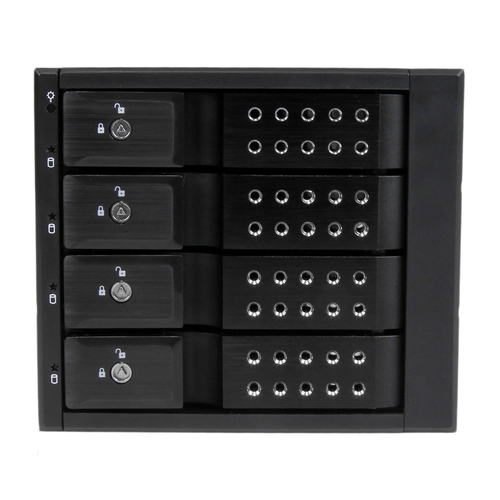

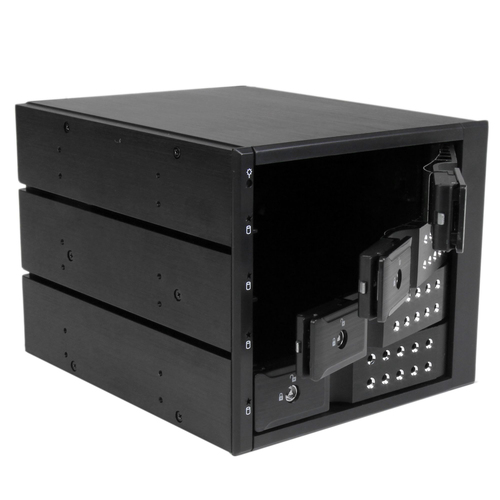

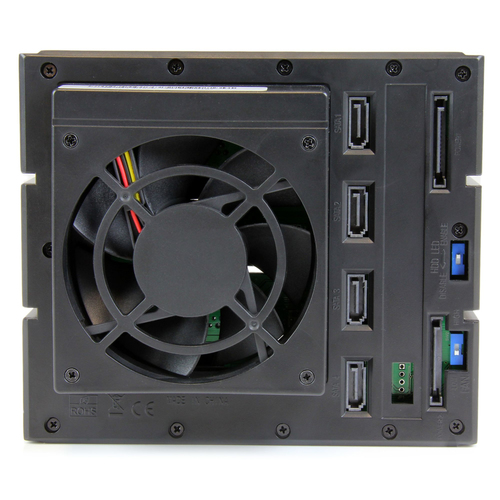

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Features
- Product colour
- Black
- Material
- Aluminium
- Hot-swap
- Yes
- Number of fans
- 1 fan(s)
- Fan diameter
- 7 cm
- Data transfer rate
- 6 Gbit/s
- LED indicators
- Activity, Power
- Key lock
- Yes
- Certification
- CE, FCC
Ports & interfaces
- External SATA ports quantity
- 4
Weight & dimensions
- Width
- 145 mm
- Depth
- 197 mm
- Height
- 124 mm
- Weight
- 1.3 kg
Packaging data
- Package width
- 254 mm
- Package depth
- 169 mm
- Package height
- 185 mm
- Package weight
- 1.59 kg
Packaging content
- Cables included
- SATA
- Screws included
- Yes
- Manual
- Yes
Operational conditions
- Storage temperature (T-T)
- -20 - 65 °C
- Operating temperature (T-T)
- 0 - 55 °C
- Operating relative humidity (H-H)
- 5 - 85%
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 6 pc(s)
- Master (outer) case width
- 531 mm
- Master (outer) case length
- 392 mm
- Master (outer) case height
- 288 mm
- Harmonized System (HS) code
- 84733080
More in Serial ATA Frames/Carriers
StarTech.comAccess M.2 NVMe and 2.5in/3.5in SATA drives via USBC or USBA at up to USB31CSAT3M2E
StarTech.com1U cable management bar is ideal for organizing network and power cabl12S-CABLE-LACING-BAR
StarTech.comDual M.2 NGFF SATA Adapter with RAID - 2x M.2 SSDs to 2.5in SATA (6Gbp25S22M2NGFFR
StarTech.com4-bay backplane adds 4x U.2 SFF-8639 NVMe drive bays to a desktop/serv4U2525-SAS-BACKPLANE
StarTech.comAluminum Black Serial ATA Hard Drive Drawer Rack - Harness the power oDRW150SATBK
StarTech.comEasy trayless removal and insertion of dual 2.5in SATA hard drives froHSB220SAT25B

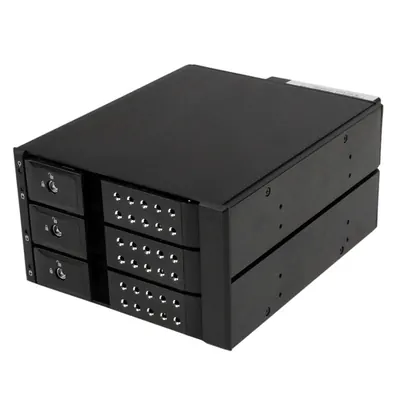

StarTech.comEasily connect and hot swap up to three 3.5? SATA/SAS hard drives fromHSB3SATSASBA
