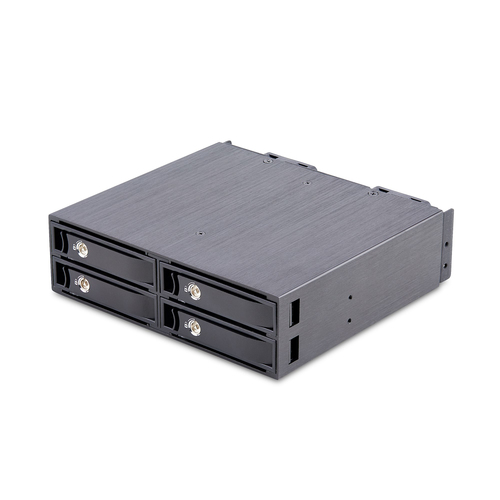

4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch
- 4-bay backplane adds 4x U.2 SFF-8639 NVMe drive bays to a desktop/server
- Supports 7mm to 15mm 2.5" SSDs
- Up to 32Gbps per drive via Mini-SAS SFF-8643 ports
- Lockable and removeable drive trays/caddies with 2x keys included
- Mobile rack features two rear fans and front air vents to keep drives cool for optimal performance
- Fan switch for high/low settings
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

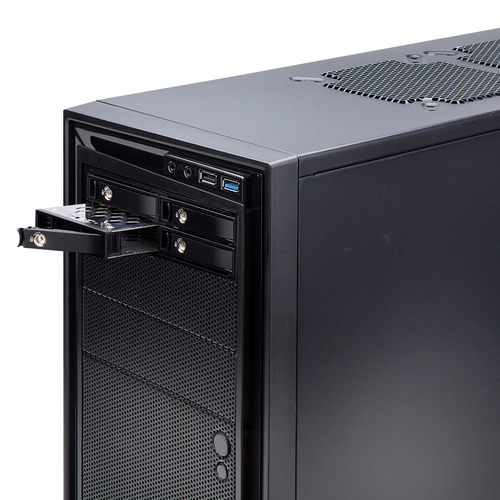

Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays
This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design

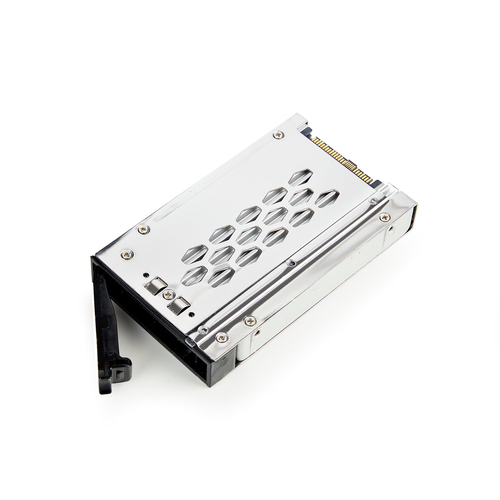

Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity.
*Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented

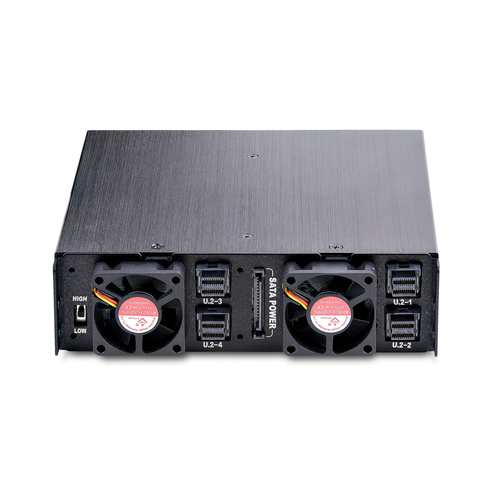

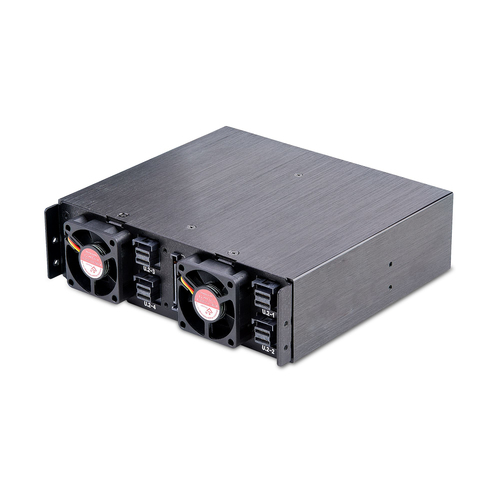

The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup

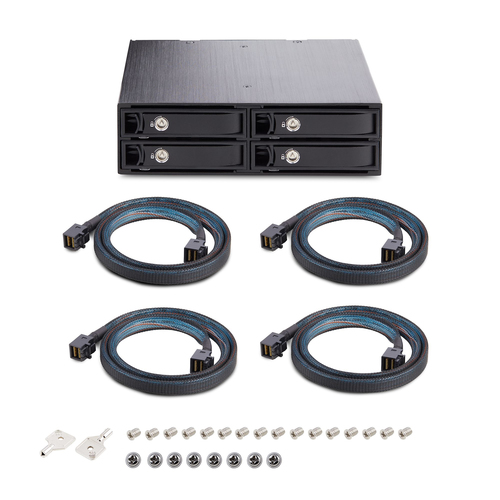

This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
Specifications
Features
- Size (imperial)
- 13.3 cm (5.25")
- Type
- Storage drive tray
- Product colour
- Black
- Number of SSDs supported
- 4
- SSD form factor
- U.2
- Material
- Aluminium
- Number of cycles
- 500
- Supported storage drive heights
- 7,9.5,12.5,15 mm
- Hot-swap
- Yes
- Airflow (imperial)
- 2.47 cfm
- Noise level
- 21.3 dB
- Number of fans
- 2 fan(s)
- Fan diameter
- 3.5 cm
- Data transfer rate
- 32 Gbit/s
- LED indicators
- Yes
- Key lock
- Yes
- Bearing type
- Sleeve bearing
- Mean time between failures (MTBF)
- 30000 h
Ports & interfaces
- Port multiplier
- No
Packaging data
- Package width
- 218 mm
- Package depth
- 185 mm
- Package height
- 136 mm
- Package weight
- 1.1 kg
Packaging content
- Quantity per pack
- 1 pc(s)
- Quick start guide
- Yes
- Cables included
- MiniSAS
- Screws included
- Yes
- Number of lock keys included
- 2 pc(s)
- Number of screws
- 24
Operational conditions
- Storage temperature (T-T)
- 0 - 55 °C
- Operating temperature (T-T)
- -20 - 55 °C
- Operating relative humidity (H-H)
- 5 - 65%
Sustainability
- Sustainability compliance
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 6 pc(s)
- Master (outer) case width
- 469 mm
- Master (outer) case length
- 430 mm
- Master (outer) case height
- 215 mm
