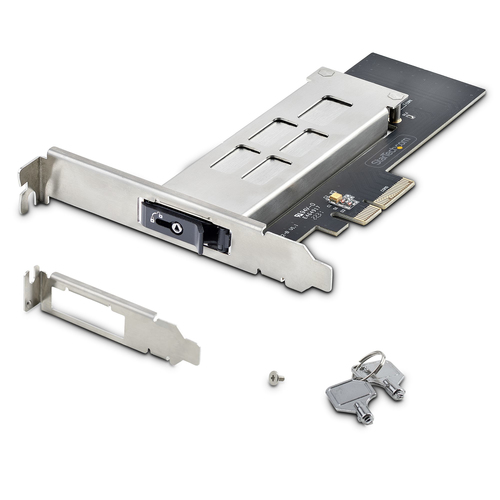

M.2 NVMe SSD to PCIe x4 Mobile Rack/Backplane with Removable Tray for PCI Express Expansion Slot
- Utilize a PCIe x4/x8/x16 expansion slot as a removable drive bay for M.2 NVMe SSDs (up to 2280)
- Capable of read/write speeds up to 64Gbps
- Toolless installation of drive to tray and tray to bay
- Lockable Drive Tray (2 keys incl.)
- Vented frame aids heat dissipation
- Tray features thermal pad/anti-vibration springs
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

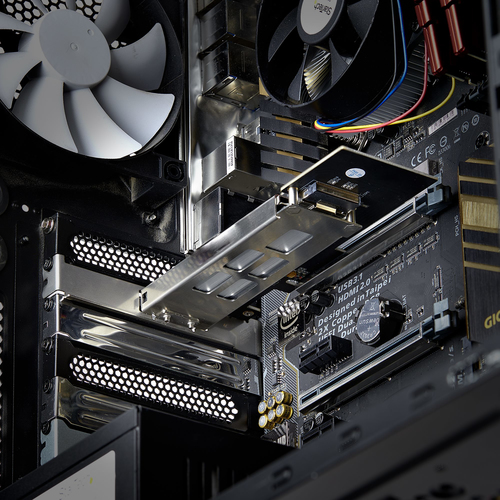

Install into a PCIe x 4 (and up) expansion slot to add a removable and lockable M.2 NVMe drive tray (drive not included)
Utilize an available PCIe 4.0 x4 expansion slot for the installation, removal, or interchange of PCIe M.2 SSDs. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.
Toolless Installation
Install an M.2 drive into the drive tray and insert the tray into the drive bay, without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.
Optimal Performance
The vented stainless-steel frame and tray with thermal pads aids heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during installation and enhance the overall stability and longevity of the drive. A low-profile bracket is included for small form-factor systems.
Hot-Swappable
Additional drive trays (TR-M2-REMOVABLE-PCIE, sold separately) provide flexibility and convenience when managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard, and for instructions regarding how to enable this feature.
Specifications
Ports & interfaces
- Host interface
- PCIe
- Output interface
- M.2
- Expansion card standard
- PCIe 4.0
Design
- Internal
- Yes
- Product colour
- Black, Silver
- Purpose
- PC
- Number of fans
- 0 fan(s)
- LED indicators
- Yes
- Mean time between failures (MTBF)
- 10000 h
- Hot-swap
- Yes
Features
- Data transfer rate (max)
- 64 Gbit/s
- S.M.A.R.T. support
- Yes
- TRIM support
- Yes
- Plug and Play
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 65 °C
- Storage temperature (T-T)
- -35 - 70 °C
- Operating relative humidity (H-H)
- 0 - 90%
Technical details
- Sustainability compliance
- Yes
- Compliance certificates
- RoHS
Weight & dimensions
- Width
- 120 mm
- Depth
- 167 mm
- Height
- 19 mm
- Weight
- 65 g
Packaging data
- Mounting brackets included
- Yes
- Quick installation guide
- Yes
- Package width
- 119 mm
- Package depth
- 153 mm
- Package height
- 47 mm
- Package weight
- 215 g
Logistics data
- Products per master (outer) case
- 20 pc(s)
- Master (outer) case width
- 325 mm
- Master (outer) case length
- 485 mm
- Master (outer) case height
- 270 mm
