3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD
- Storage mobile rack
- 2.5"
- black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Easily connect and hot swap up to three 3.5” SATA/SAS hard drives from two 5.25” bays

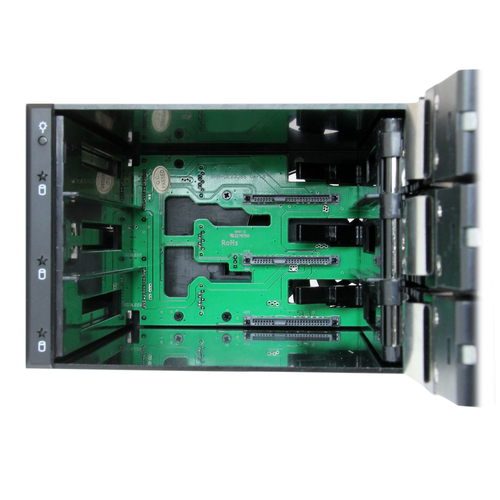

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

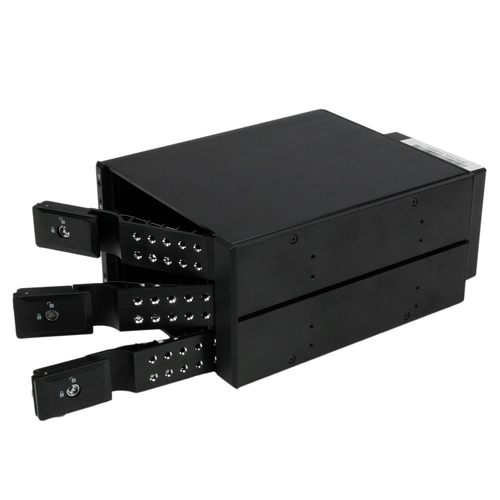

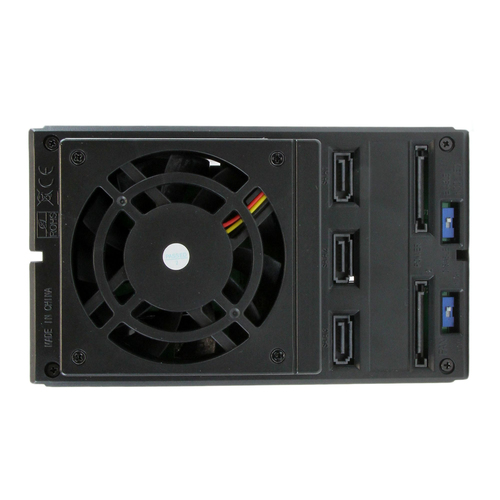

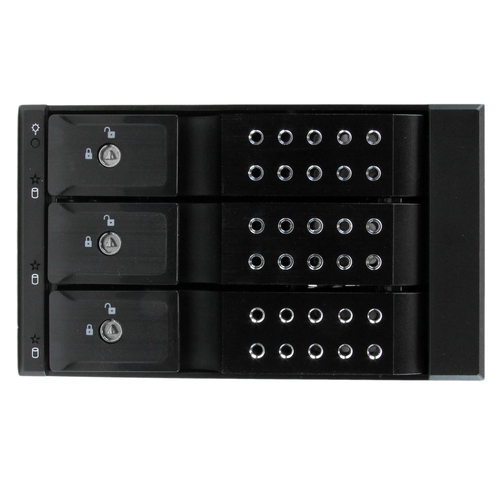

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Storage
- Storage drives installed
- No
- Installed storage drive type
- No
- Total installed storage capacity
- 0 TB
- Supported storage drive types
- HDD
- Number of storage drives supported
- 3
- Maximum supported storage capacity
- 12 TB
- Storage drive interface
- Serial ATA, Serial ATA II, Serial ATA III
- Storage drive size
- 3.5"
- Data transfer rate
- 6 Gbit/s
- Hot-swap drive bays
- Yes
Ports & interfaces
- Host ports
- 3
- SATA host port
- Yes
- Number of SATA power connectors
- 2
- SATA power connector type
- SATA 15-pin
Design
- Internal
- No
- Product colour
- Black
- LED indicators
- Activity, Power
- Number of fans
- 1 fan(s)
Performance
- Backplanes support
- Yes
Weight & dimensions
- Width
- 145 mm
- Depth
- 194.1 mm
- Height
- 110 mm
- Weight
- 1.2 kg
Packaging data
- Package width
- 253 mm
- Package depth
- 184 mm
- Package height
- 126 mm
- Package weight
- 1.2 kg
Packaging content

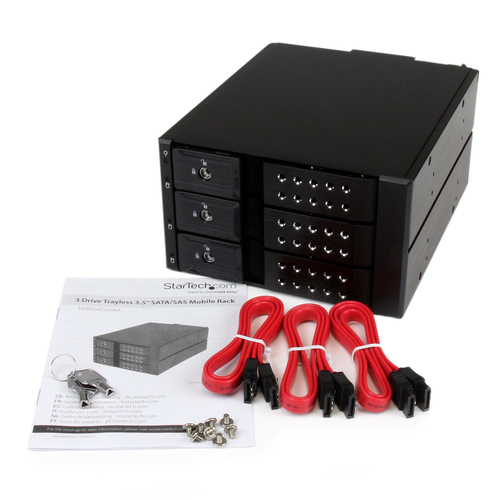

- Cables included
- SATA
Operational conditions
- Operating temperature (T-T)
- 0 - 55 °C
- Operating relative humidity (H-H)
- 5 - 85%
- Storage temperature (T-T)
- -20 - 60 °C
Other features
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 8 pc(s)
- Master (outer) case length
- 391 mm
- Master (outer) case width
- 541 mm
- Master (outer) case height
- 287 mm
- Harmonized System (HS) code
- 84717020
More in Serial ATA Frames/Carriers

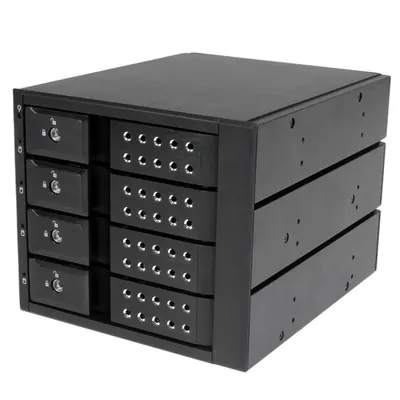

StarTech.comConnect and hot swap four 3.5in SATA III or SAS II hard drives to yourHSB4SATSASBA

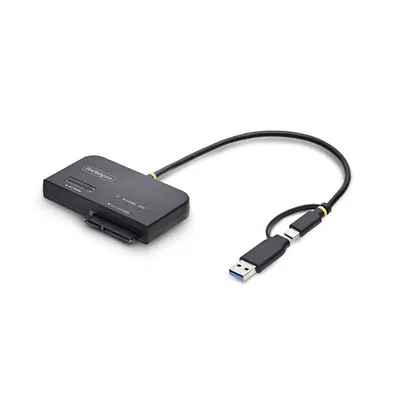

StarTech.comAccess M.2 NVMe and 2.5in/3.5in SATA drives via USBC or USBA at up to USB31CSAT3M2E

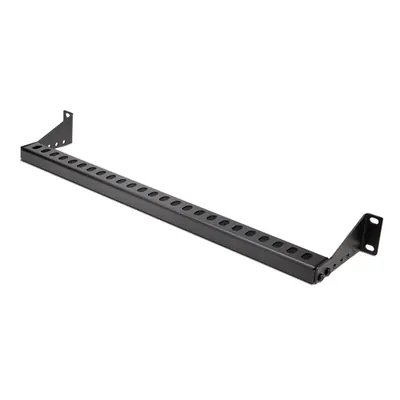

StarTech.com1U cable management bar is ideal for organizing network and power cabl12S-CABLE-LACING-BAR

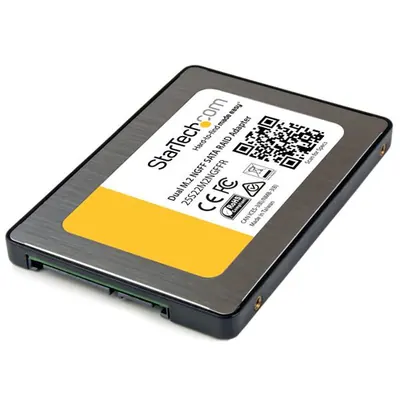

StarTech.comDual M.2 NGFF SATA Adapter with RAID - 2x M.2 SSDs to 2.5in SATA (6Gbp25S22M2NGFFR
StarTech.com4-bay backplane adds 4x U.2 SFF-8639 NVMe drive bays to a desktop/serv4U2525-SAS-BACKPLANE

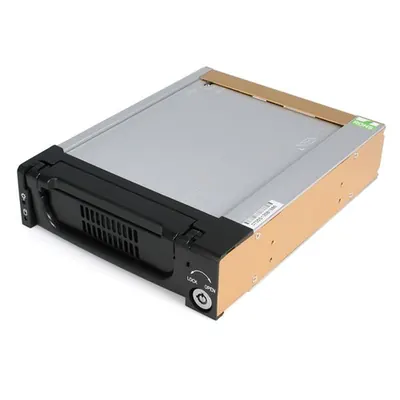

StarTech.comAluminum Black Serial ATA Hard Drive Drawer Rack - Harness the power oDRW150SATBK

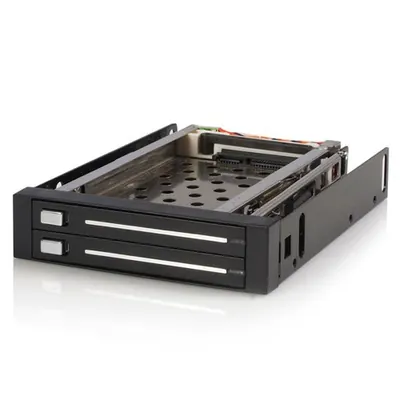

StarTech.comEasy trayless removal and insertion of dual 2.5in SATA hard drives froHSB220SAT25B

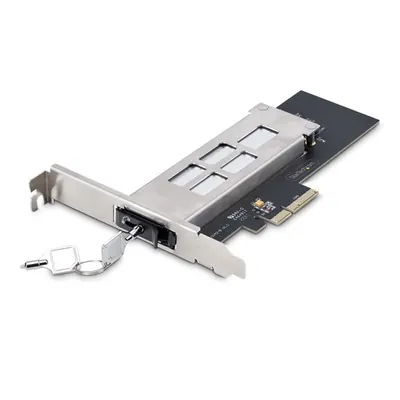

StarTech.comUtilize a PCIe x4/x8/x16 expansion slot as a removable drive bay for MM2-REMOVABLE-PCIE-N1
