Black Aluminum 5.25in Rugged SATA Hard Drive Mobile Rack Drawer
- Turn your 3.5in SATA hard drive into a rugged hot-swap storage solution for a 5.25in bay
- 3.5in SATA mobile rack
- Hard drive mobile rack
- HDD mobile rack drawer fits a single SATA drive into a front accessible 5.25"" bay
- Removable hard drive bay
- Key lockable drive caddy
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Turns any 3.5in SATA hard drive into a rugged, hot-swap storage solution for a 5.25in bay
This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

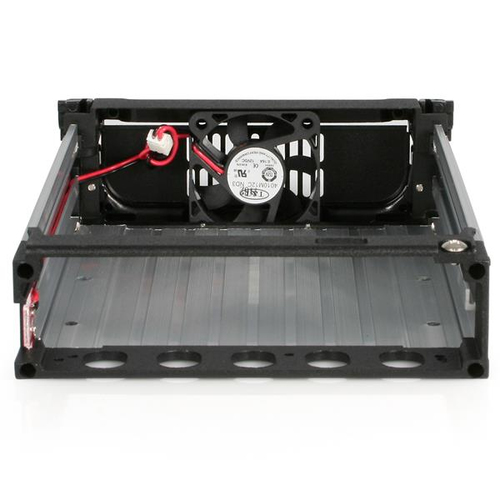

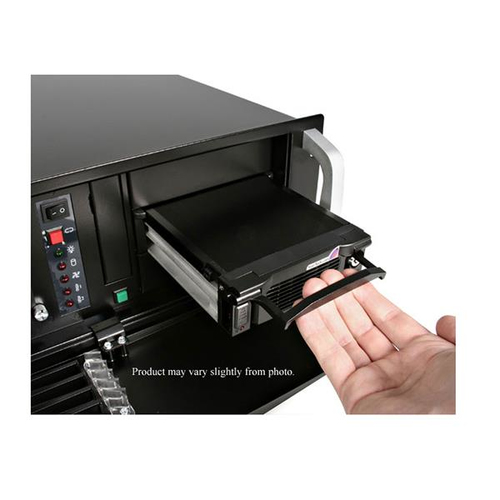

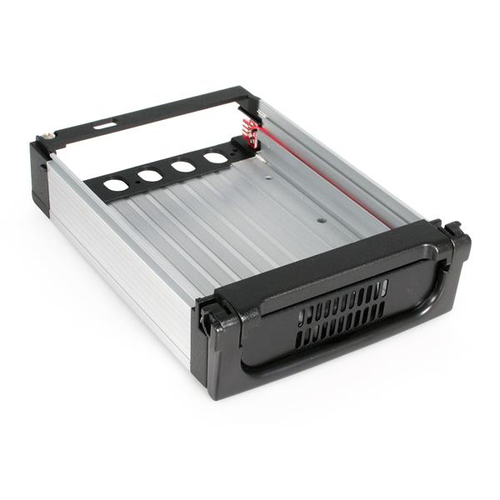

Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.
This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.
Specifications
Features
- Size (imperial)
- 13.3 cm (5.25")
- Type
- Carrier panel
- Product colour
- Black
- Number of HDDs supported
- 1
- HDD size
- 3.5"
- HDD interface
- Serial ATA, Serial ATA II, Serial ATA III
- Material
- Aluminium
- Number of cycles
- 25000
- Number of fans
- 1 fan(s)
- Fan diameter
- 4 cm
- Data transfer rate
- 6 Gbit/s
- LED indicators
- Activity, Power
- Key lock
- Yes
- Certification
- CE, REACH
Weight & dimensions
- Width
- 147 mm
- Depth
- 190 mm
- Height
- 41 mm
- Weight
- 782 g
Packaging data
- Package width
- 195 mm
- Package depth
- 151 mm
- Package height
- 48 mm
- Package weight
- 834 g

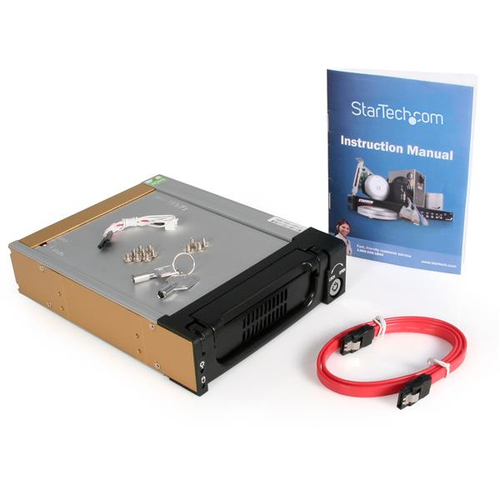

Packaging content
- Dust cover included
- Yes
- Cables included
- SATA
- Screws included
- Yes
- Number of lock keys included
- 2 pc(s)
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 20 pc(s)
- Master (outer) case width
- 426 mm
- Master (outer) case length
- 332 mm
- Master (outer) case height
- 267 mm
- Harmonized System (HS) code
- 84733080
