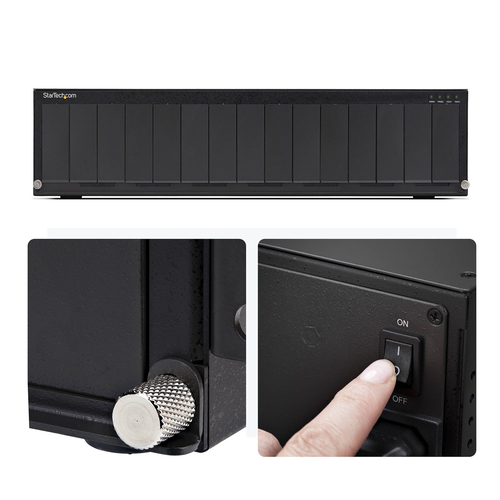

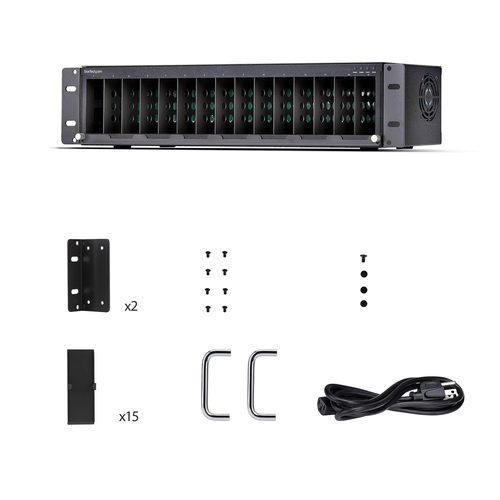

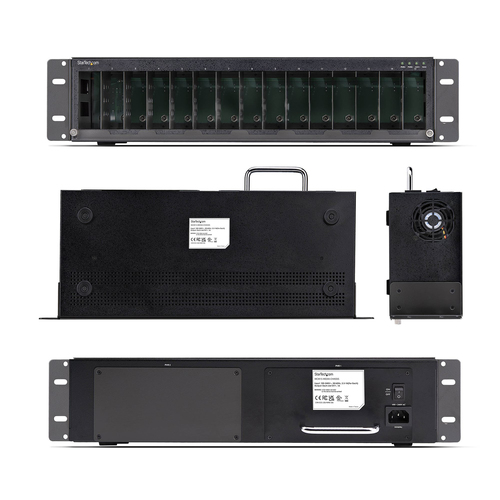

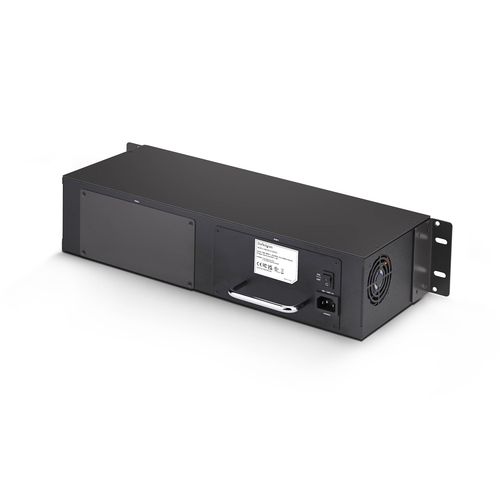

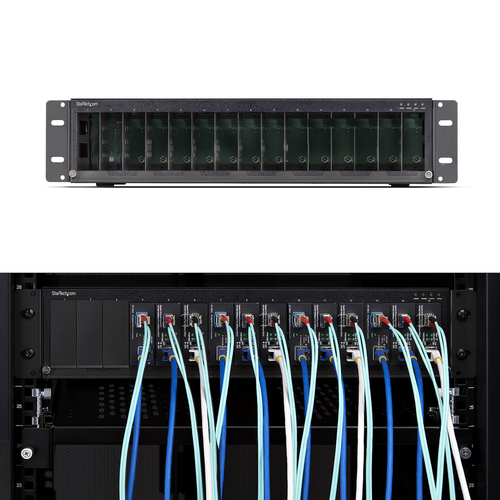

15-Slot Unmanaged Media Converter Chassis for MCM Media Converter Series, Full Power Isolation
- Integrate up to 15 media converters in one 19in rack-mount chassis for simplifying network organization and expanding connectivity in enterprise and data center environments
- For MCM Media Converter Series
- Built-in hot-swappable AC power supply and optional redundant AC or -48V DC PSU
- Independently powered converter bays for easy module replacement without downtime
- Over-voltage protection and FCC CE UL and TAA compliance
- All-metal chassis with dual cooling fans and front LED monitoring
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Centralize edge conversions with a 15-slot rack that simplifies management and adds optional power redundancy for uptime.
The 15-Slot Media Converter Chassis delivers high-density, centralized management for up to fifteen media converters in a compact 19-inch rack-mount form. Designed for enterprise, telecom, and data center networks, it streamlines power distribution, reduces clutter, and supports nonstop operation with an optional hot-swappable Redundant Power System (RPS). the chassis is designed for the MCM Media Converter Series.
Centralized, Scalable Integration
Accommodates Fast, Gigabit, and 10-Gigabit Ethernet, VDSL2, and Serial-over-Ethernet converters in one chassis. Each slot is hot-swappable and independently powered, allowing upgrades or replacements without downtime.
Reliable Power and Protection
Includes one AC power supply with an optional AC or -48V DC backup for continuous service. Electrical isolation and protection against over-voltage, over-current, and short-circuit events ensure stable performance.
Durable, Intelligent Design
This rugged 2.4U metal chassis with dual cooling fans and LED indicators provides efficient heat management and easy status monitoring. FCC, CE, and UL certified, the chassis offers long-term reliability in mission-critical environments.
Specifications
Technical details
- Rack mounting
- Yes
- LED indicators
- Fan, Power
- Material
- Metal
- Number of slots
- 15
- Product colour
- Black
- Number of fans
- 2 fan(s)
- Mean time between failures (MTBF)
- 50000 h
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
- Compatible products
- MCM Series
Power
- AC input voltage
- 100 - 240 V
- Output voltage
- 48 V
- Output current
- 4.2 A
- Included power plug types
- EU, NA, UK
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 438 mm
- Depth
- 200 mm
- Height
- 103 mm
Packaging data
- Cables included
- AC
- Manual
- Yes
- Package width
- 274 mm
- Package depth
- 508 mm
- Package height
- 170 mm
- Package weight
- 5.7 kg
Logistics data
- Master (outer) case width
- 300 mm
- Master (outer) case length
- 540 mm
- Master (outer) case height
- 383 mm
- Products per master (outer) case
- 2 pc(s)
