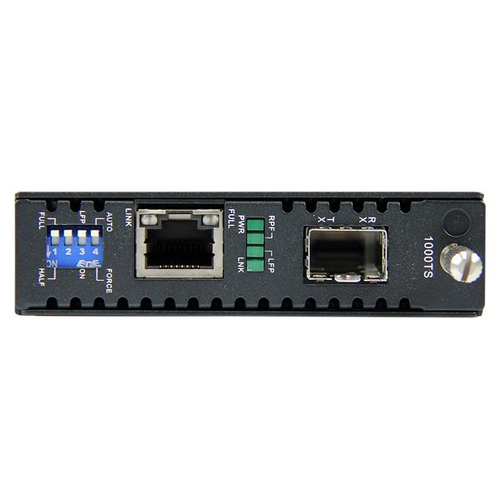

Gigabit Ethernet Fiber Media Converter with Open SFP Slot
- Wired
- 1250 Mbit/s
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1 SFP
- Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Convert and extend a Gigabit Ethernet connection over fiber using the Gigabit SFP of your choice
The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.
A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).
The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.
For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, ETCHS2U" text="2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a ET91000SFP2C" text="Card Module only (ET91000SFP2C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Install the SFP of your choice with the open SFP slot
- Operate as a standalone media converter or install into the ETCHS2U chassis
- Ensure maximum up-time with link-loss forwarding and remote status monitoring
Specifications
Network
- Maximum data transfer rate
- 1250 Mbit/s
- Converter input interface
- 1000Base-T
- Converter output interface
- 1000Base-LX, 1000Base-SX
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 1000 Mbit/s
- Auto MDI/MDI-X
- Yes
- Duplex system
- Full, Half
Performance
- Mean time between failures (MTBF)
- 65000 h
Features
- Internal
- No
- LED indicators
- Yes
- Product colour
- Black
- Housing material
- Steel
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- Fiber optic connector
- SFP
Power
- Input voltage
- 100 - 240 V
- Input current
- 0.36 A
- Output voltage
- 12 V
- Output current
- 1 A
- Power consumption (typical)
- 8 W
- Power over Ethernet (PoE)
- No
- External power adapter
- Yes
Weight & dimensions
- Width
- 95 mm
- Depth
- 160 mm
- Height
- 20 mm
- Weight
- 400 g
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
Packaging content
- Manual
- Yes
Packaging data
- Package width
- 137 mm
- Package depth
- 208 mm
- Package height
- 92 mm
- Package weight
- 786 g
Certificates
- Compliance certificates
- RoHS
- Certification
- FCC
Logistics data
- Harmonized System (HS) code
- 85176990
Downloads
