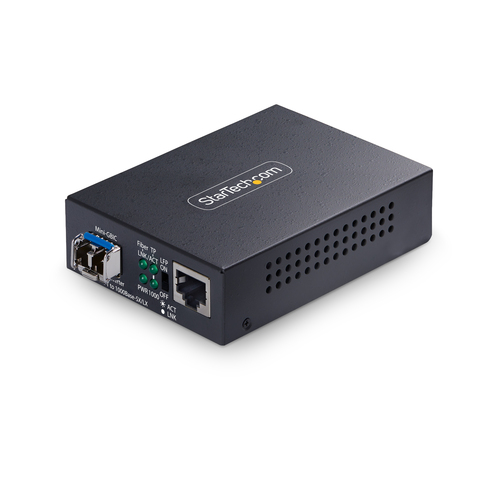

Single-Mode (SM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to
- Convert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit single-mode LC fiber, up to 20km (12.4mi)
- Supports full/half duplex, 9K jumbo frames, auto-negotiation, auto MDI/MDI-X
- DIP switch enables Link Fault Passthrough (LFP) with LLCF/LLR
- All-metal chassis provides strong shielding and long-term durability
- LED indicators (link, power, and activity)
- Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS)
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Convert and extend a Gigabit Ethernet connection up to 20km (12.4 miles) using single-mode LC fiber cable.
This Gigabit Ethernet to fiber media converter offers a reliable way to extend your network up to 20 km (12.4 mi) using single-mode LC fiber, providing increased range, enhanced security, and reduced interference compared to copper-based connections. It's TAA compliant and designed for government and commercial applications where long-distance and rack-mountable fiber access is needed.
Built for Versatility and Performance
Convert 10/100/1000 Mbps RJ-45 to Gigabit LC fiber using a media converter that complies with IEEE 802.3 standards. It supports full/half duplex, auto-negotiation, MDI/MDI-X, and 9K jumbo frames for high-performance networking in mixed copper-fiber environments.
Smart Diagnostics and Rugged Design
Built with a compact full metal chassis, this converter includes LED indicators for power and link activity, plus a DIP switch to enable Link Fault Passthrough (LFP) with LLCF/LLR for easier network troubleshooting and reliability.
Flexible Installation for Any Network Setup
Deploy in minutes with plug-and-play setup and multiple mounting options including wall-mount, DIN-rail, or media chassis installation. It includes a 5V DC, 2A power adapter, making it ideal for server rooms or network closets.
Specifications
Network
- Maximum data transfer rate
- 2000 Mbit/s
- Converter input interface
- 10Base-T, 100Base-TX, 1000Base-T
- Converter output interface
- 1000Base-LX
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Flow control support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Duplex system
- Full, Half
- Link Fault Pass-through (LFP)
- Yes
Performance
- Maximum transfer distance
- 20000 m
- Wavelength
- 1310 nm
- Wavelength-division multiplexing (WDM)
- No
- Fiber mode structure
- Single-mode
- Mean time between failures (MTBF)
- 50000 h
Features
- Internal
- No
- LED indicators
- Yes
- Product colour
- Black
- Housing material
- Metal
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- Fiber optic connector
- LC
- DC-in jack
- Yes
Power
- Input voltage
- 100 - 240 V
- Input current
- 0.4 A
- Output voltage
- 5 V
- Output current
- 2 A
- Power consumption (typical)
- 4.6 W
- Power over Ethernet (PoE)
- No
- External power adapter
- Yes
Weight & dimensions
- Width
- 94 mm
- Depth
- 70 mm
- Height
- 94 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 5 - 95%
Packaging content
- AC adapter included
- Yes
- User guide
- Yes
Packaging data
- Package width
- 133 mm
- Package depth
- 280 mm
- Package height
- 66 mm
- Package weight
- 328 g
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
- Master (outer) case width
- 360 mm
- Master (outer) case length
- 580 mm
- Master (outer) case height
- 305 mm
- Products per master (outer) case
- 20 pc(s)
