Cisco GLC-T Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP
- Cisco GLC-T Compatible SFP 1000BASE-T (1 Gbps) Gigabit Ethernet
- Copper
- Up to 100m (328')
- RJ-45 Connector
- For Cisco switches like: Firepower ASR920 IE2000 IE4000 ASR9000 C9300 IE3000 ME3400
- Hot-Swappable and MSA Compliant
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty
The GLCTST is a Cisco GLC-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
Performance
- SFP transceiver type
- Copper
- Maximum data transfer rate
- 1000 Mbit/s
- Interface type
- SFP
- Maximum transfer distance
- 100 m
- Networking standards
- IEEE 802.3ab
- Ethernet LAN (RJ-45) ports
- 1
- Auto MDI/MDI-X
- Yes
- Digital Diagnostics Monitoring (DDM)
- No
Features
- Product colour
- Silver
- Hot-swap
- Yes
Power
- Power consumption (typical)
- 1.3 W
Certificates
- Compliance certificates
- CE, RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Operating relative humidity (H-H)
- 30 - 75%
Weight & dimensions
- Width
- 12 mm
- Depth
- 68 mm
- Height
- 14 mm
- Weight
- 25 g
Packaging content
- Quantity per pack
- 1 pc(s)
Packaging data
- Package width
- 91 mm
- Package depth
- 113 mm
- Package height
- 34 mm
- Package weight
- 95 g
Logistics data
- Master (outer) case width
- 344 mm
- Master (outer) case length
- 424 mm
- Harmonized System (HS) code
- 85369010
- Master (outer) case height
- 342 mm
- Products per master (outer) case
- 108 pc(s)
- Country of origin
- Taiwan
Downloads
More in Media Converters
StarTech.comGigabit fiber to RJ45 Ethernet media converter dongle; PoE powered; UpD01ML55P-FIBER-MEDIA

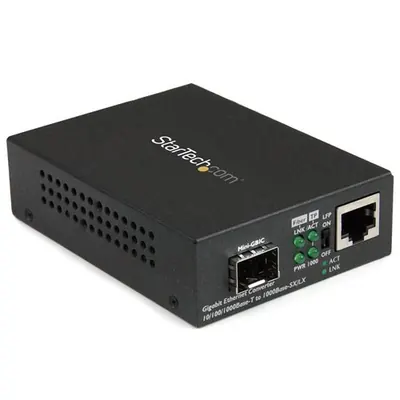

StarTech.comGigabit Ethernet Fiber Media Converter with Open SFP Slot Convert and ET91000SFP2

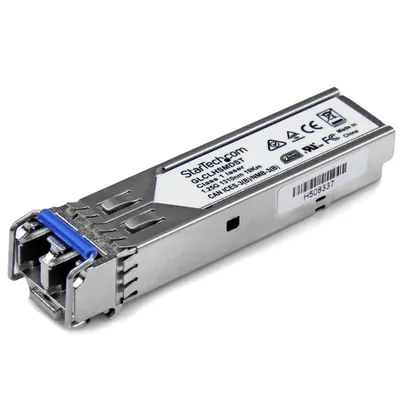

StarTech.comGigabit Fiber SFP Transceiver Module - Cisco GLC-LH-SMD Compatible - SGLCLHSMDST
StarTech.comGigabit Ethernet Fiber Media Converter - Compact - 850nm MM LC - 550m MCM1110MMLC
StarTech.comGigabit Ethernet Fiber Media Converter with Open SFP Slot Convert and MCM1110SFP
StarTech.comConvert and extend a 10/100/1000 Mbps Ethernet signal to Gigabit singlMCM1110SMLC20

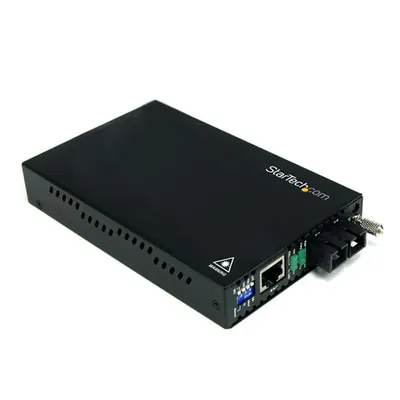

StarTech.com10/100 Mbps Multi Mode Fiber Media Converter SC 2 km Convert and extenET90110SC2

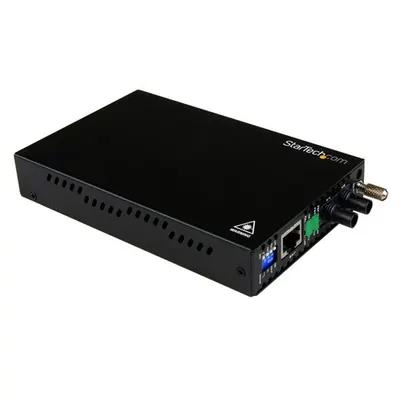

StarTech.com10/100 Mbps Multi Mode Fiber Media Converter ST 2 km Convert and extenET90110ST2
