10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- Wired
- 200 Mbit/s 2000 m 1310 nm
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode Fiber ports quantity: 1 SC
- Black
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

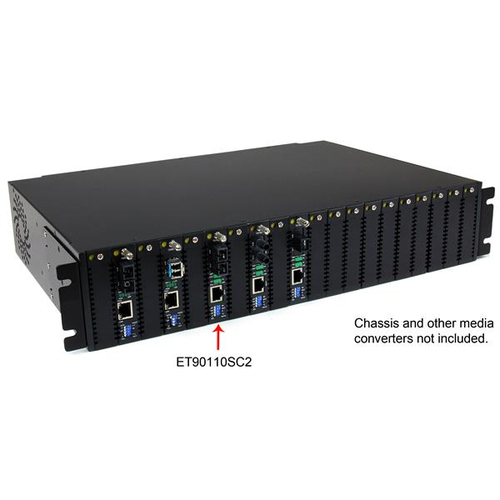

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Specifications
Network
- Maximum data transfer rate
- 200 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Duplex system
- Full, Half
Performance
- Maximum transfer distance
- 2000 m
- Wavelength
- 1310 nm
- Wavelength-division multiplexing (WDM)
- No
- Fiber mode structure
- Multi-mode
Features
- Internal
- No
- Product colour
- Black
- Housing material
- Steel
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- Fiber optic connector
- SC
Power
- Input voltage
- 100 - 240 V
- Output voltage
- 12 V
- Output current
- 1.6 A
- Power over Ethernet (PoE)
- No
- Power plug type
- Type M
Weight & dimensions
- Width
- 87 mm
- Depth
- 153 mm
- Height
- 24 mm
- Weight
- 600 g
Packaging content
- AC adapter included
- Yes
- Manual
- Yes
Packaging data
- Package width
- 190 mm
- Package depth
- 233 mm
- Package height
- 77 mm
- Package weight
- 779 g
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC
Logistics data
- Harmonized System (HS) code
- 85176990
Other features
- Dimensions (WxDxH)
- 95 x 160 x 20 mm
- Full duplex
- Yes
