10GbE Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to 10GBASE-X SFP+

Part # MCM10GSFP2UPC 065030916844Warranty: 2 Years0.88 lb

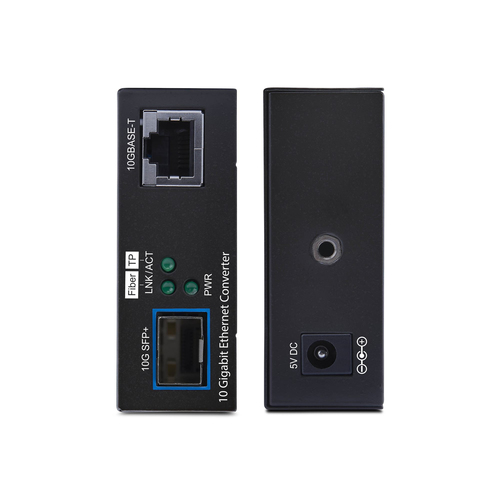

Convert 10GBASE-T copper (RJ-45) to 10G fiber through an open SFP+ slot
Supports multi-mode or single-mode transceivers

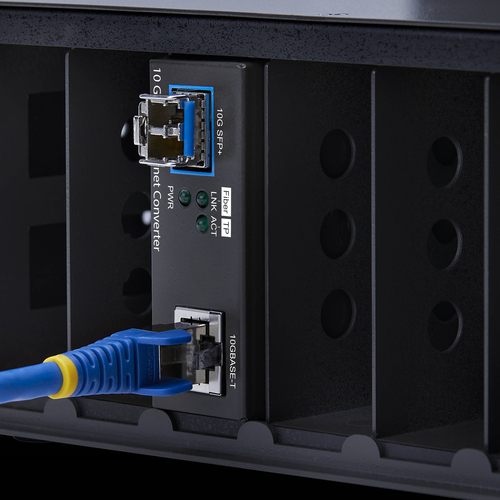

Use as a standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT), chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS)
10GBASE-T, 10GBASE-X, Jumbo Frames (up to 16K), full-duplex, and auto MDI/MDI-X
Plug-and-play across high-speed 10G network links

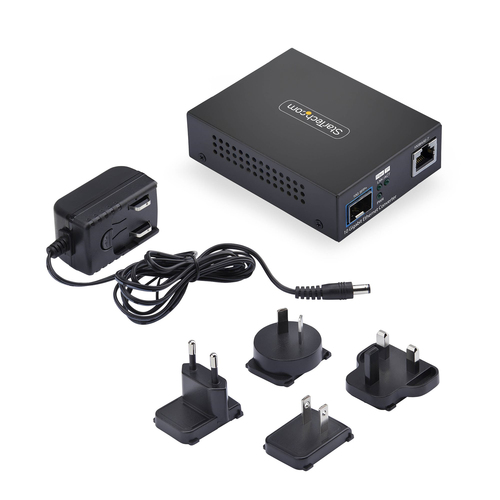

Consumes only 5.3W (typical) via 5V DC input from included power adapter or chassis power supply

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Connect a Gigabit copper network to a Gigabit fiber network using an SFP+ transceiver of your choice.

High-Speed Copper-to-Fiber Conversion

This compact 10G media converter enables seamless copper-to-fiber connectivity for high-speed network upgrades and extended reach. Featuring an open SFP+ slot, it converts 10GBASE-T (RJ-45) to 10G fiber and supports multi-mode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.

Versatile Mounting and Deployment

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.

Optimized for 10Gbps Networks

Built for 10G speeds, the converter supports 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across 10G links.

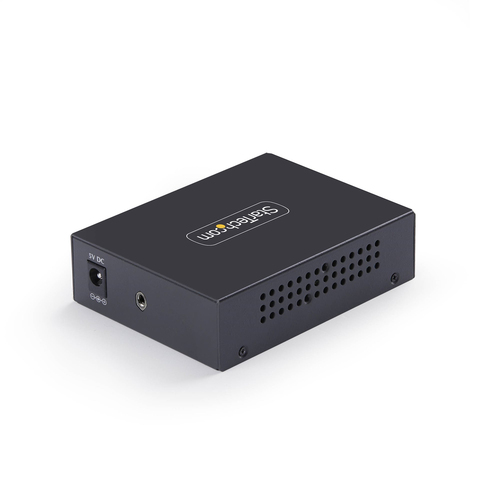

Efficient, Compact Design

With low 5.3W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.

Specifications

Network

Maximum data transfer rate: 10000 Mbit/s
Converter input interface: 10GBase-T
Converter output interface: 10GBase-X
Networking standards: IEEE 802.3
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s
Jumbo frames support: Yes
Jumbo frames: 16000
Flow control support: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Duplex system: Full
