10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to
- Multigigabit fiber Ethernet media converter to convert and extend copper to fiber or fiber to copper w/ a fixed fiber optic connection
- 10Gbps network 10GBASE-T | Unmanaged
- Single/Multimode Fiber | SC Connector Full Duplex | RJ45 | LFP | VLAN | Open SFP+ | Speed and Activity LEDs
- Steel housing w/ mounting brackets ESD Surge + Contact and Air Discharge Protection
- MTBF rating 38400hrs + StarTech.com 2-year warranty and free lifetime 24/5 support
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Fiber to Copper Media Converter | 10GBASE/1000BASE | 10Gbps/1Gbps Unmanaged | Single Mode & Multimode
This Ethernet fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP+ of your choice. It converts a copper RJ45 Ethernet connection to 10Gbps or 1Gbps fiber, to extend your network over longer distances or connect workstations to switches.
Cost-Effective Extensions and Flexible Performance
The RJ45 to fiber media converter provides a cost-efficient way to connect an Ethernet network to remote devices over a fiber backbone. It features an open SFP+ slot that supports the MSA-compliant 10 Gigabit SFP+ or 1 Gigabit SFP that best suits your fiber connection setup (single mode/multimode) and distance requirements.
A Versatile Way to Connect Different Networks
The 10Gb/1Gb fiber media converter supports auto-negotiation while providing versatile connectivity to existing networks and devices, maximizing the usage and performance of legacy equipment.
Network Compatibility:
• 10GBASE-ER
• 10GBASE-LR
• 10GBASE-LW
• 10GBASE-EW
• 10GBASE-R
• 10GBASE-SR
• 10GBASE-SW
• 10GBASE-T
• 1000BASE-T
• 1000BASE-SX
• 1000BASE-LX
Fast and Easy Installation
The unmanaged fiber media converter has a standalone compact design with simple plug-and-play setup to ensure fast and easy installation.
StarTech.com Fiber Media Converters
Overcome the distance limitations of traditional network cables with StarTech.com fiber media converters. Our converters connect different types of network cabling and help you extend networks between buildings and over longer distances. Whether you need to extend a network connection 550 m or 40 km, we can help you.
Specifications
Network
- Maximum data transfer rate
- 10000 Mbit/s
- Networking standards
- IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3an
- Ethernet interface type
- 10 Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000,1200,2500,5000,10000 Mbit/s
- Fiber ethernet cabling technology
- 10GBASE-LR, 10GBASE-SR
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
Performance
- Fiber mode structure
- Multi-mode, Single-mode
Features
- Internal
- No
- LED indicators
- Link, Power
- Product colour
- Black
- Housing material
- Aluminium
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 1
- Fiber optic connector
- SFP+
Power
- Input current
- 250 A
- Output voltage
- 5 V
- Output current
- 2 A
- Power over Ethernet (PoE)
- No
- External power adapter
- Yes
- Power plug type
- Type M
Weight & dimensions
- Width
- 80 mm
- Depth
- 122 mm
- Height
- 30 mm
- Weight
- 274 g
Operational conditions
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -40 - 120 °C
- Operating relative humidity (H-H)
- 10 - 90%

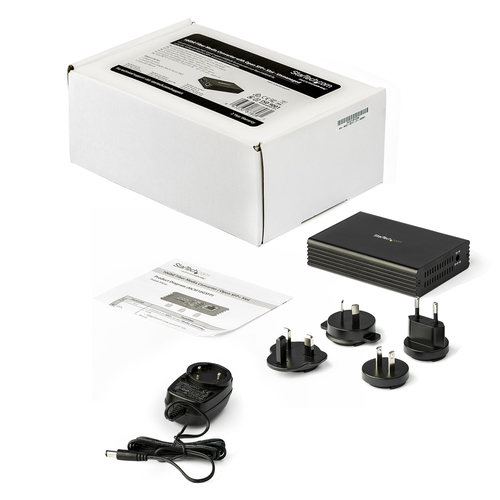

Packaging content
- AC adapter included
- Yes
- Manual
- Yes
Packaging data
- Package width
- 144 mm
- Package depth
- 207 mm
- Package height
- 38 mm
- Package weight
- 350 g
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, FCC, UL, PSE
Logistics data
- Harmonized System (HS) code
- 85176990
- Master (outer) case width
- 320 mm
- Master (outer) case length
- 550 mm
- Master (outer) case height
- 320 mm
- Products per master (outer) case
- 20 pc(s)
