10GbE Multi-Gigabit Open SFP+ Fiber Media Converter, Standalone 10 Gigabit Ethernet RJ-45 to
- Convert 100M to 10GBASE-T copper (RJ-45) to 10G fiber using an open SFP+ slot
- Supports multimode or single-mode transceivers
- Use as standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS)
- Plug-and-play installation supports auto-negotiation of 100Mbps, 1/2.5/5/10Gbps copper speeds, 16K Jumbo Frames, Full-duplex
- Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply
- Does not support PoE
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.
Flexible, High-Speed Copper-to-Fiber Conversion
This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.
Versatile Mounting and Deployment

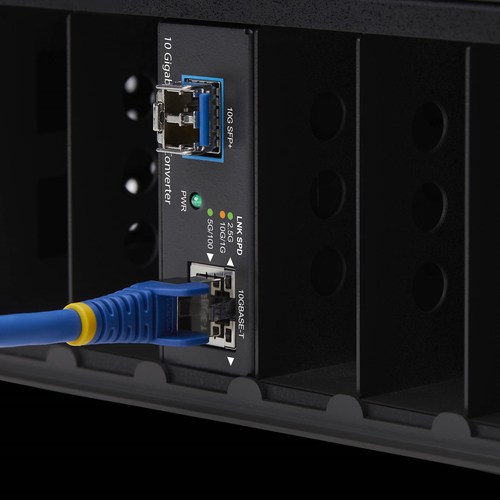

Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.
Optimized for Mixed-Speed Networks
Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.
Efficient, Compact Design
With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.
Specifications
Network
- Maximum data transfer rate
- 10000 Mbit/s
- Converter input interface
- 10GBase-T
- Converter output interface
- 10GBase-X
- Networking standards
- IEEE 802.3
- Ethernet interface type
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates
- 100,1000,2500,5000,10000 Mbit/s
- Jumbo frames support
- Yes
- Jumbo frames
- 16000
- Flow control support
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Duplex system
- Full
Performance
- Fiber mode structure
- Multi-mode, Single-mode
Features
- Internal
- No
- Plug and Play
- Yes
- LED indicators
- Link, Power
- Product colour
- Black
- Housing material
- Metal
Ports & interfaces
- Connectivity technology
- Wired
- Ethernet LAN (RJ-45) ports
- 1
- Fiber optic connector
- SFP+
- DC-in jack
- Yes
Power
- Input voltage
- 100 - 240 V
- Input current
- 0.4 A
- Output voltage
- 5 V
- Output current
- 2 A
- Power consumption (typical)
- 3.75 W
- External power adapter
- Yes
Weight & dimensions
- Width
- 94 mm
- Depth
- 70 mm
- Height
- 26 mm
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 5 - 95%
Packaging content

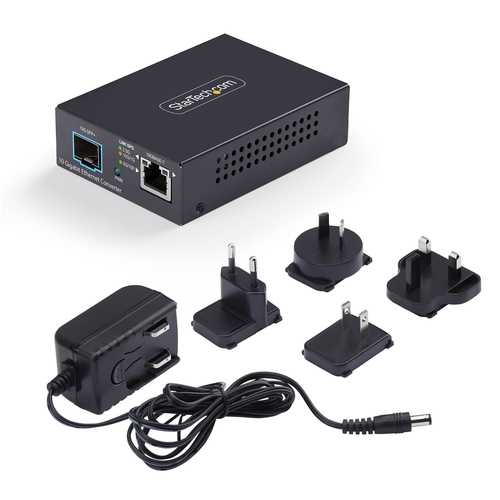

- AC adapter included
- Yes
- User guide
- Yes
Packaging data
- Package width
- 70 mm
- Package depth
- 94 mm
- Package height
- 26 mm
- Package weight
- 500 g
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Logistics data
- Master (outer) case width
- 133 mm
- Master (outer) case length
- 281 mm
- Master (outer) case height
- 66 mm
- Products per master (outer) case
- 20 pc(s)
