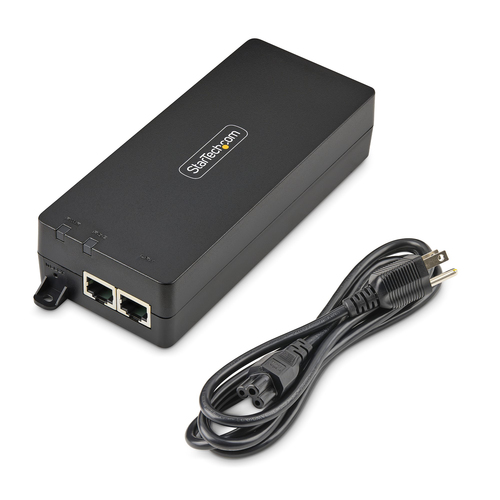

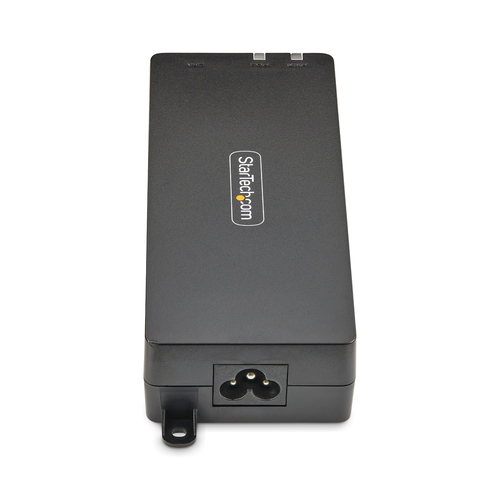

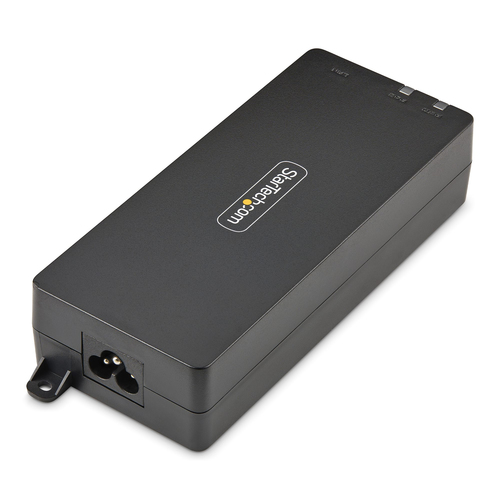

1-Port 10Gbps PoE++ Injector, 90W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall
- Single port unmanaged PoE++ injector supports up to 2.5/5/10G Ethernet and 10/100/1000Mbps
- Up to 90 Watts PoE/PoE+/PoE++ (802.3af/at/bt) output to a remote Powered Device (PD)
- Extend power and Gigabit data at distances of up to 100m
- Features network multi-speed auto-negotiation
- Surge protection up to 2Kv
- No software or drivers required
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Supply power and data to a PoE device over standard Ethernet cabling
This 1-port multi-speed PoE++ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10/100 Mbps/1000Mbps and 1/2.5/5/10Gbps. This TAA-compliant mid-span inline injector can transmit network data and power up to 328ft (100m) for single Powered Devices (PD).
Versatile PoE Injector
Single port PoE+ injector supports the IEEE 802.3af/at & 802.3bt PSE standards, and delivers up to 90W output (56V, 1.7A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design of the PoE injector allows for either desktop or surface-mount use.

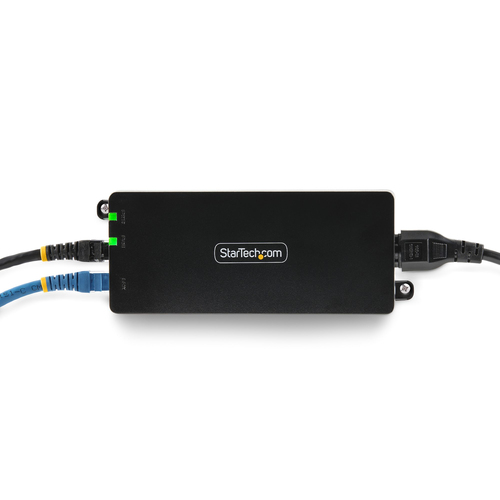

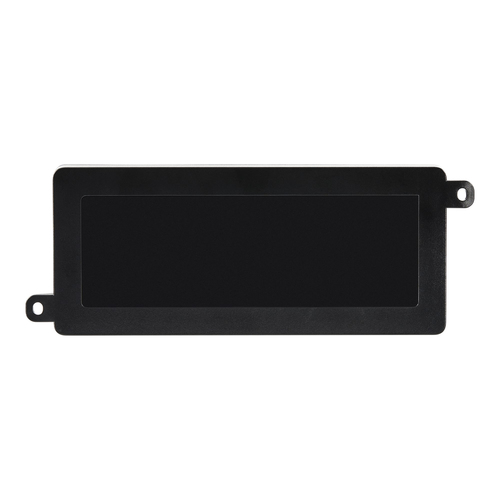

Streamlined Cable Management
With integrated wall-mounting ears, this Gigabit PoE++ injector offers convenient and versatile installation options. All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch / 100x58.4x33.4mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.
Specifications
Network
- Ethernet interface type
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates
- 10000 Mbit/s
- Cabling technology
- 1000/10000
- Power over Ethernet (PoE)
- Yes
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Web-based management
- No
- Chipset
- SkyWorks - Si3471A-A01
Features
- Product colour
- Black
- Housing material
- Plastic
- Wall mountable
- Yes
- Maximum operating distance
- 100 m
- LED indicators
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Power protection features
- Over current, Over voltage, Short circuit
- Auto-negotiation
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
Power
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
- AC adapter output voltage
- 56 V
- Output current
- 1.7 A
- Total Power over Ethernet (PoE) budget
- 90 W
- Suitable for use in country/location
- United States
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -30 - 80 °C
Weight & dimensions
- Width
- 64 mm
- Depth
- 170 mm
- Height
- 34 mm
- Weight
- 350 g
Packaging content
- Power cord included
- Yes
- Quick installation guide
- Yes
Packaging data
- Package width
- 212 mm
- Package depth
- 125 mm
- Package height
- 52 mm
- Package weight
- 600 g
Logistics data
- Master (outer) case width
- 286 mm
- Master (outer) case length
- 522 mm
- Master (outer) case height
- 455 mm
- Products per master (outer) case
- 40 pc(s)
