Home/Catalogue/TP-Link/POE170S
Drag to turn · 7 views
TP-LinkPoE Adapters
Omada PoE++ Injector Adapter
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need

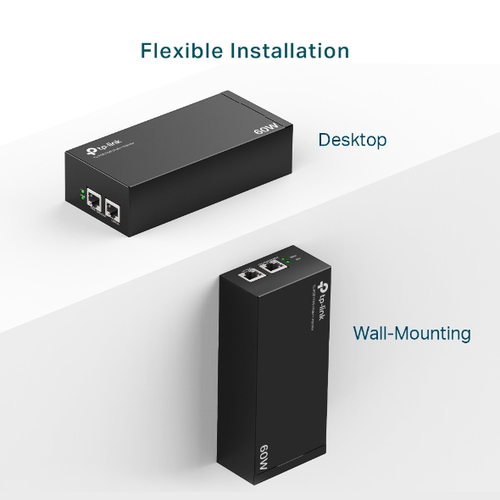

- Wall-mounting and desktop design accommodates most installation scenarios

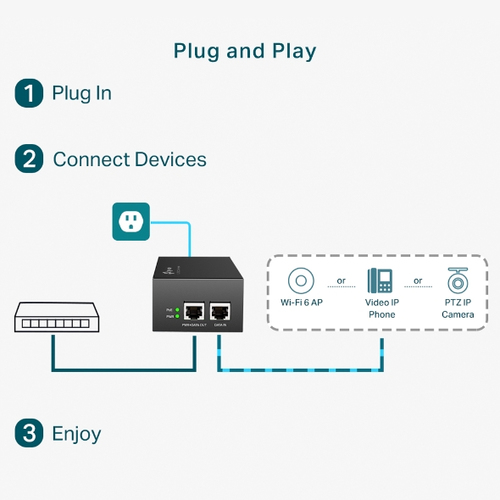

- Plug & Play installation requires no configuration
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
What This Product Does

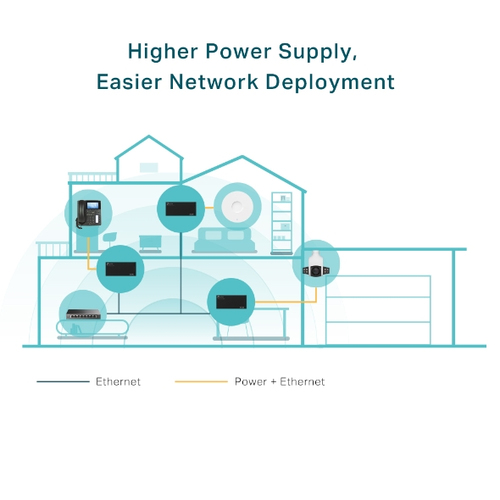

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
Specifications
Network
- Ethernet interface type
- Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cabling technology
- 10/100/1000
- Power over Ethernet (PoE)
- Yes
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e, Cat6
Features
- Product colour
- Black
- Housing material
- Metal
- Wall mountable
- Yes
- Plug and Play
- Yes
Ports & interfaces
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
Power
- Output power
- 60 W
- AC adapter input voltage
- 100 - 240 V
- AC adapter frequency
- 50/60 Hz
Certificates
- Certification
- FCC, CE, RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90%

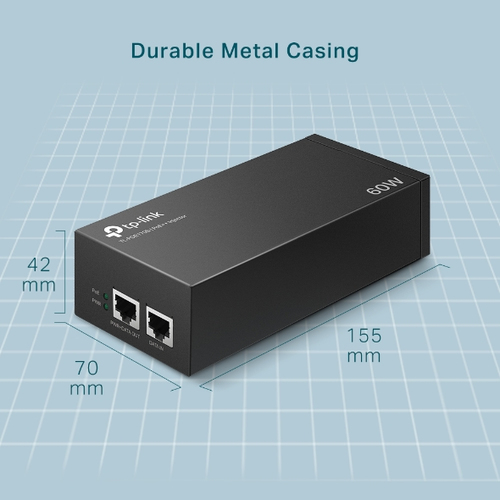

Weight & dimensions
- Width
- 155 mm
- Depth
- 70 mm
- Height
- 42 mm
Packaging content
- Number of products included
- 1 pc(s)
- Quick installation guide
- Yes
Packaging data
- Package width
- 190 mm
- Package depth
- 250 mm
- Package height
- 95 mm
- Package weight
- 920 g
- Package type
- Box
Logistics data
- Harmonized System (HS) code
- 85044095
