TP-LinkPoE Adapters

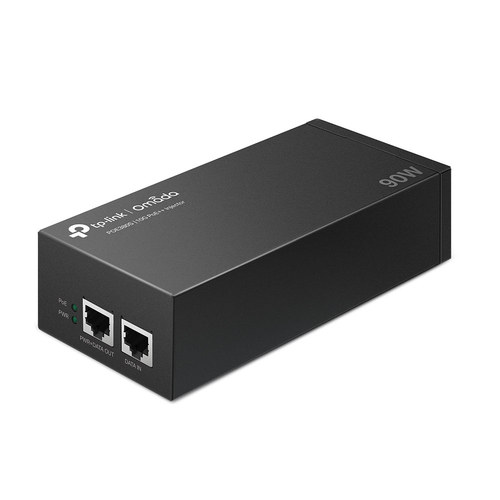

Omada PoE++ Injector
- 2× 10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps/10 Mbps RJ45 ports ensure faster transmission
- Complies with IEEE802.3af/at/bt standards, supplies up to 90 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, no configuration required
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
90W 10G PoE++ Injector
Unlocks peak performance for your 10G/Multi-Gig bandwidth and devices
01
10G Ports Ensure Faster Connection
Auto-negotiation for 6-speed (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps /10 Mbps)
02
Auto Detect the Required Power, Up to 90 W
Standard 802.3af/at/bt for Various Powered Devices
Specifications
Network
- Ethernet interface type
- 10 Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,2500,10000 Mbit/s
- Cabling technology
- 1000/10000
- Power over Ethernet (PoE)
- Yes
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Features
- Product colour
- Black
- LED indicators
- PoE, Power
Ports & interfaces
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
Power
- AC adapter input voltage
- 100 - 240 V
- AC adapter frequency
- 50 - 60 Hz
- Input current
- 1.6 A
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Sustainability
- Sustainability compliance
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 45 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 155 mm
- Depth
- 70 mm
- Height
- 42 mm
Packaging content
- Number of products included
- 1 pc(s)
- Quick installation guide
- Yes
