TP-LinkPoE Adapters
Omada IEEE 802.3af PoE Injector
- IEEE 802.3af compliant

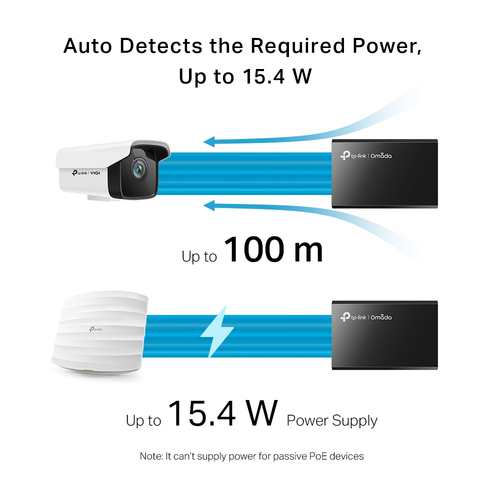

- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, no configuration required
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

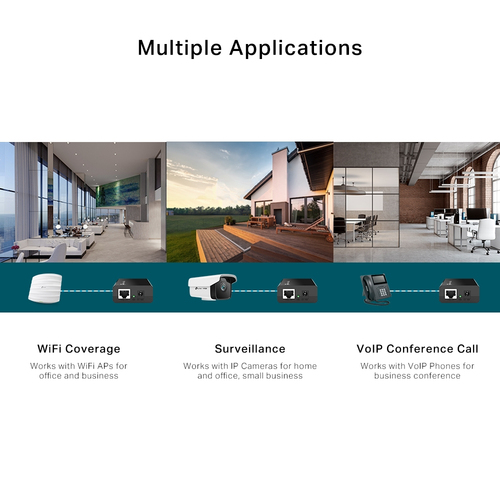

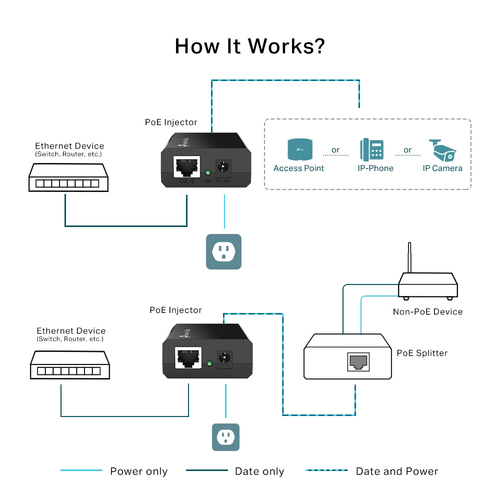

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications
Network
- Ethernet interface type
- Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Cabling technology
- 10/100/1000
- Power over Ethernet (PoE)
- Yes
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
- Cable types supported
- Cat3, Cat4, Cat5, Cat5e, Cat6
Features
- Product colour
- Black
- Plug and Play
- Yes
- Maximum operating distance
- 100 m
- LED indicators
- Yes
- Auto-sensing
- Yes
- Auto-negotiation
- Yes

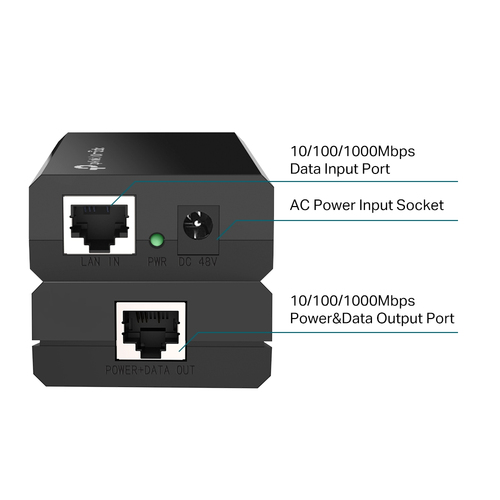

Ports & interfaces
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- DC-in jack
- Yes
Power
- Input voltage
- 48 V
Certificates
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 80.8 mm
- Depth
- 54 mm
- Height
- 24 mm
Packaging content
- Number of products included
- 1 pc(s)
- AC adapter included
- Yes
- Quick installation guide
- Yes
Packaging data
- Package width
- 65 mm
- Package depth
- 198 mm
- Package height
- 65 mm
- Package weight
- 350 g
Downloads
