TP-LinkNetwork Splitters
PoE Splitter Adapter, IEEE802.3af compliant, plug and play
- IEEE 802.3af compliant
- Selectable power output
- Gigabit speed support
- Plug-and-Play, requires no configuration
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview

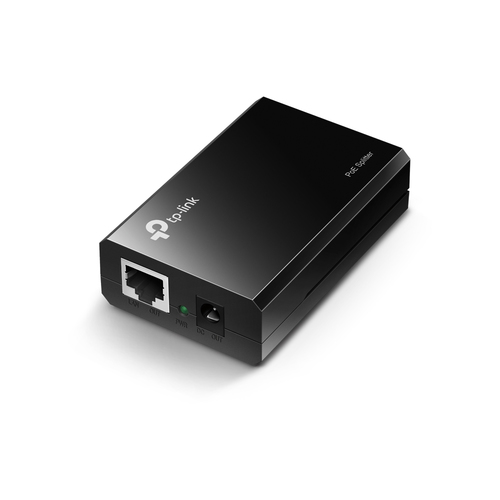

TP-LINK’s PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard. It can receive power and data from all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Injector, such as TP-LINK's TL-SG3424P, TL-SF1008P, TL-POE150S or other equivalent products, then split electric power and data into two cables, so you can install the non-PoE devices like Wireless Access Points, IP Cameras or IP Phones, in remote location where there are no power lines or outlets, where you wish to fix these devices.
Specifications
Features
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
- Power over Ethernet (PoE)
- Yes
- Product colour
- Black
- LED indicators
- Power
- Plug and Play
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 2
- RJ-45 input ports
- 1
- RJ-45 output ports
- 1
- DC-out jack
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Certificates
- Certification
- FCC, CE
Weight & dimensions
- Width
- 80.8 mm
- Depth
- 54 mm
- Height
- 24 mm
Power
- Input voltage
- 5, 9, 12 V
