2U 8x520R 10Ft Cord Cloud 3Yr Wty

Part # PR2200RTXL2UCNUPC 64953293570390.6 lb

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.
Extend runtimes for critical devices by powering down non-critical equipment to free up battery capacity.
Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

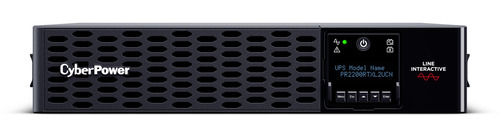

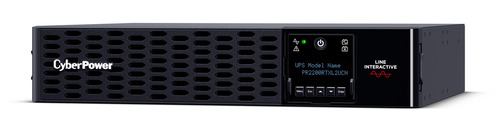

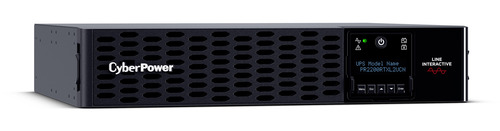

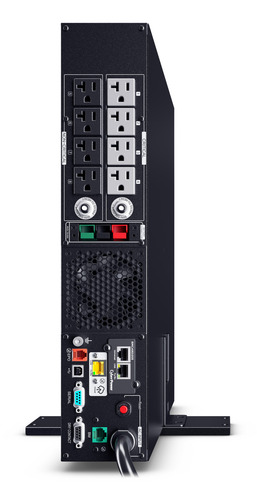

The PR2200RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

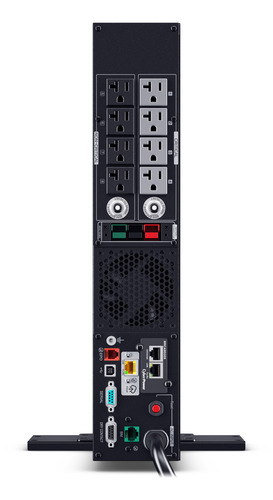

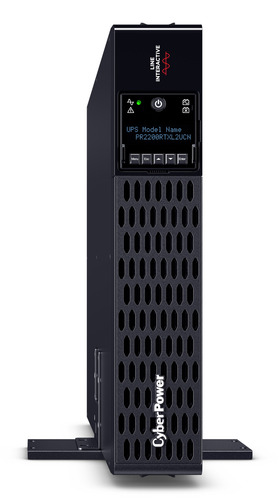

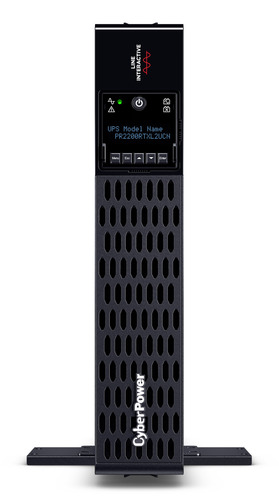

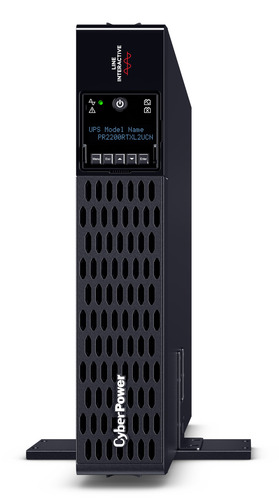

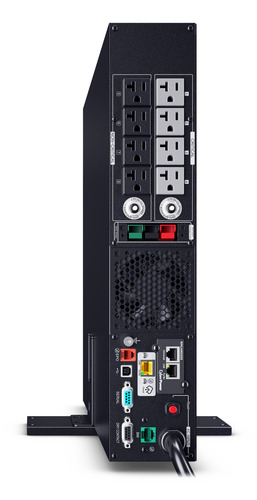

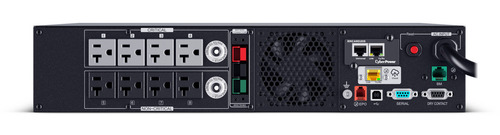

The Smart App Sinewave PR2200RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

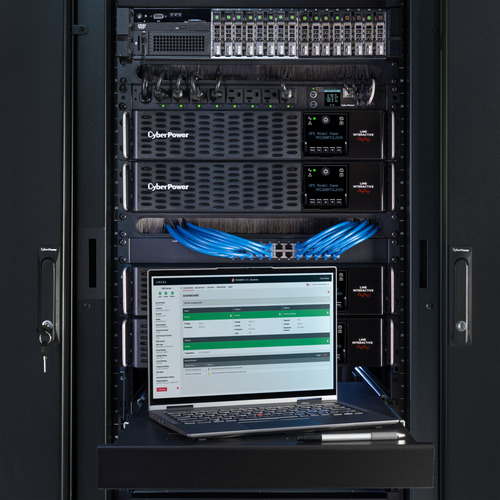

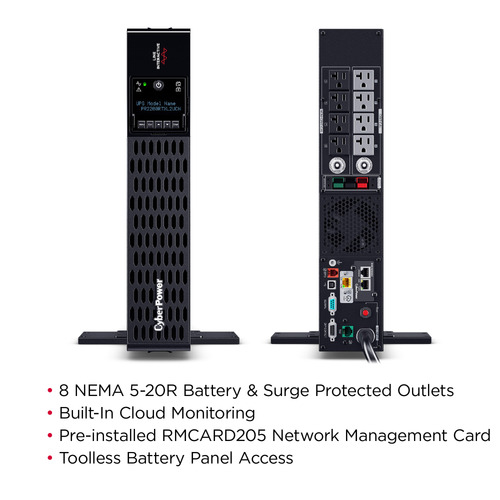

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 2200 W
Waveform: Sine
Input operation voltage (min): 75 V
Input operation voltage (max): 149 V
Input frequency: 47/63 Hz
Output operation voltage (min): 100 V
Output operation voltage (max): 120 V
Output frequency: 50/60 Hz
Output voltage regulation: ±5%
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 2430 J
Response time: 6 ms
Output power factor: 1
Emergency Power Off (EPO): Yes
Noise level: 57.5 dB
Surge protection: Yes
Power protection features: Surge protection, Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm, Fault
