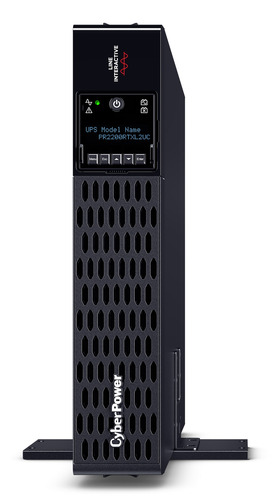

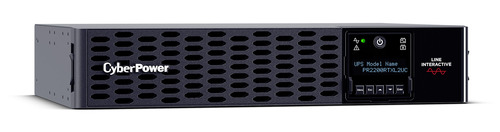

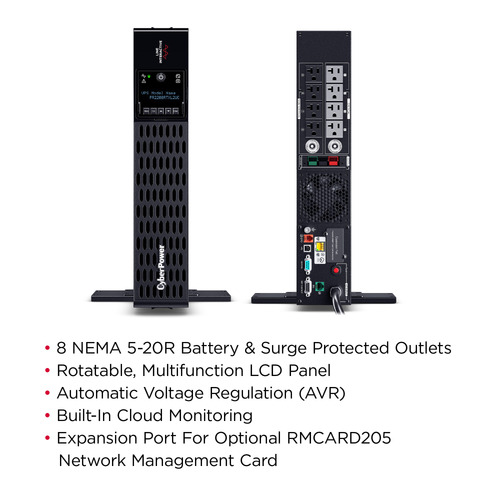

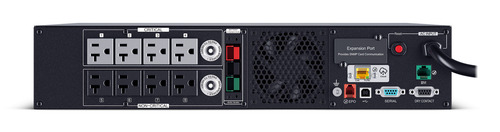

2U 8xNEMA 5-20R 10' Cord Cloud

Part # PR2200RTXL2UCUPC 64953293557490.6 lb

Battery Backup
Surge Protection
Sine Wave Output
Automatic Voltage Regulation (AVR)
Rotatable Multifunction LCD Panel

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

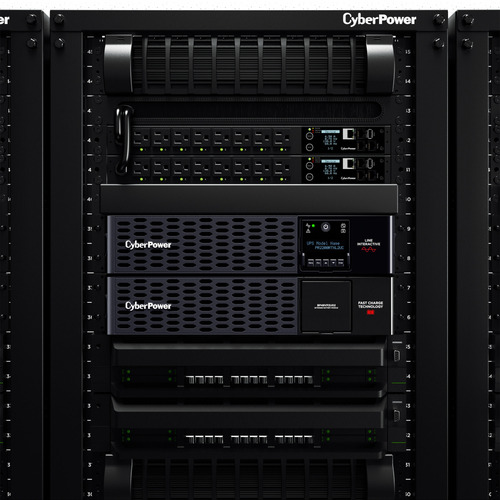

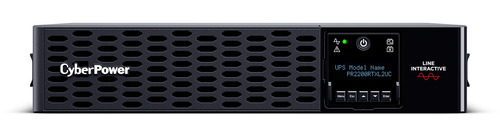

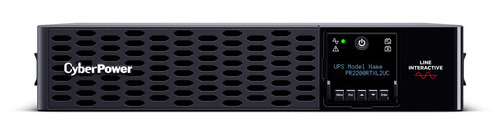

The PR2200RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

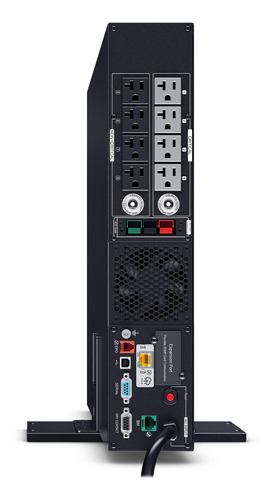

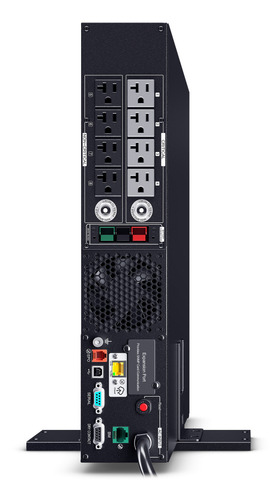

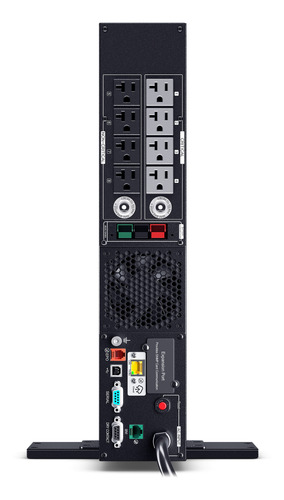

The Smart App Sinewave PR2200RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Sine Wave Output

The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

Automatic Voltage Regulation (AVR)

AVR increases or decreases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

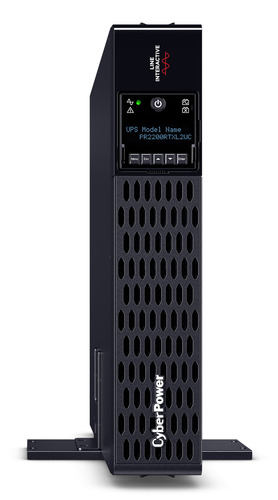

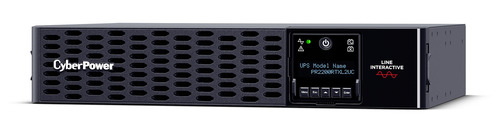

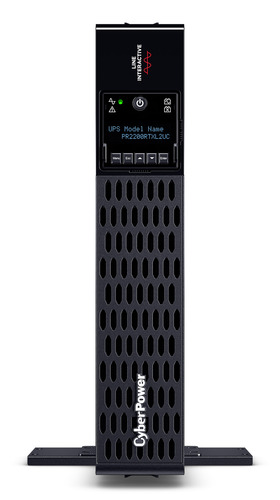

Rotatable Multifunction LCD Panel

Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 2200 W
Waveform: Sine
Input operation voltage (min): 75 V
Input operation voltage (max): 149 V
Input frequency: 47/63 Hz
Output operation voltage (min): 100 V
Output operation voltage (max): 120 V
Output frequency: 50/60 Hz
Output voltage regulation: ±5%
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 2430 J
Response time: 6 ms
Number of input phases: 1
Number of output phases: 1
Output power factor: 1
Emergency Power Off (EPO): Yes
Noise level: 57.5 dB
Surge protection: Yes
Power protection features: Surge protection, Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm, Fault
