Large Lithium* APC Smart-UPS SRT, Lithium-Ion, 2200VA 120V with SmartConnect
- Double-conversion (Online)
- 2.2 kVA 1950 W
- Waveform: Sine
- 5 AC outlet(s)
- Lithium-Ion (Li-Ion) 50 V
- Rackmount Silver
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Description

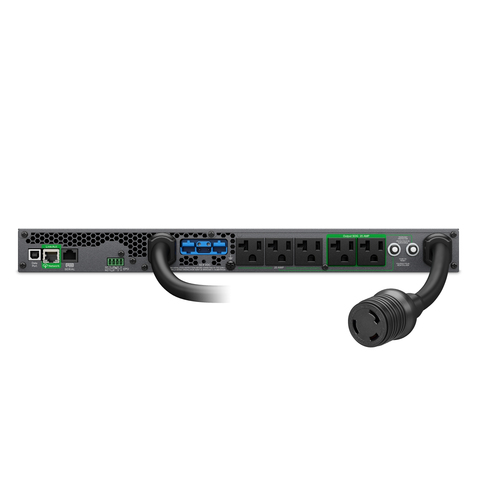

APC Smart-UPS Ultra 2200VA 1U 120V Rack/ Tower/ Wall/ Ceiling/ Desk Under Mount with SmartConnect Ethernet Port. This 2.2kVA on-line 1U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with a NEMA 5-20P inlet, (5) NEMA 5-20R and L5-20R with Pigtail cable outlets. This Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 2.2 kVA
- Output power
- 1950 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input operation voltage (max)
- 125 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 125 V
- Output frequency
- 50/60 Hz
- Crest factor
- 3:1
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- NEMA 5–20R, NEMA L5-20R
- Power plug
- NEMA 5-20P
- AC outlets quantity
- 5 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface
- Yes
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery voltage
- 50 V
- Battery recharge time
- 1.5 h
- Replacement battery cartridge
- APCRBC173-LI
Design
- Form factor
- Rackmount
- Rack capacity
- 1U
- Cable length
- 2.4 m
- Product colour
- Silver
- Display type
- LCD
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Compliance certificates
- UL, cUL
- Certification
- EN/IEC 62040-1
Packaging content
- Rack mount kit
- Yes
- Cables included
- RJ-45, USB cable
Weight & dimensions
- Width
- 432 mm
- Depth
- 560 mm
- Height
- 43 mm
- Weight
- 15.9 kg
Packaging data
- Package width
- 564 mm
- Package depth
- 764 mm
- Package height
- 278.2 mm
- Package weight
- 24.2 kg
