Home/Catalogue/APC/SRTL2K2RM1UWNC
Drag to turn · 8 views
APCUninterruptible Power Supplies (UPSs)
SmartUPS Ultra, 2200VA 208+230V 1U, with LithiumIon Battery, with Network Management Card Embedded
- Double-conversion (Online)
- 2.2 kVA 2200 W
- Waveform: Sine
- 5 AC outlet(s)
- Lithium-Ion (Li-Ion) 50 V
- Rackmount Silver
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Description
With Smart-UPS™ Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. 230V and 208V user selectable output. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 2.2 kVA
- Output power
- 2200 W
- Waveform
- Sine
- Input operation voltage (min)
- 208 V
- Input operation voltage (max)
- 240 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 208 V
- Output operation voltage (max)
- 240 V
- Output frequency
- 50/60 Hz
- Surge energy rating
- 1600 J
- Heat dissipation
- 325 BTU/h
- Efficiency
- 97%
- Crest factor
- 3:1
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 55 dB
- Audible alarm(s)
- Yes
Ports & interfaces
- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- BS1363A
- AC outlets quantity
- 5 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface
- Yes
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
- Emergency Power Off (EPO) connector
- Yes
- SmartSlot
- Yes
Battery
- Battery technology
- Lithium-Ion (Li-Ion)
- Battery voltage
- 50 V
- Battery recharge time
- 1.5 h
- Replacement battery cartridge
- APCRBC173-LI
Design
- Form factor
- Rackmount
- Rack capacity
- 1U
- Cable length
- 2.4 m
- Product colour
- Silver
- Display type
- LCD
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15240 m
Certificates
- Compliance certificates
- CE, EAC, RCM, UKCA, VDE
- Certification
- EN/IEC 62040-1
Packaging content
- Rack mount kit
- Yes
- Cables included
- RJ-45
Weight & dimensions
- Width
- 432 mm
- Depth
- 560 mm
- Height
- 43 mm
- Weight
- 15.9 kg
Packaging data
- Package width
- 564 mm
- Package depth
- 764 mm
- Package height
- 278.2 mm
- Package weight
- 24.2 kg
More in 1501-2999 VA
APCLarge Lithium* APC Smart-UPS SRT, Lithium-Ion, 2200VA 120V with SmartCSRTL2K2RM1UC
EatonEaton 5PX 1500 RT2U G25PX1500RTG2
Eaton5PX G2 UPS 2U 1950 VA 1950W5PX2000RTNG2
EatonEaton 5PX 3000 RT2U G25PX3000RTG2

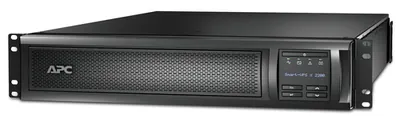

APCAPC Smart-UPS X 2200VA Rack/Tower LCD 200-240V with Network CardSMX2200R2HVNC

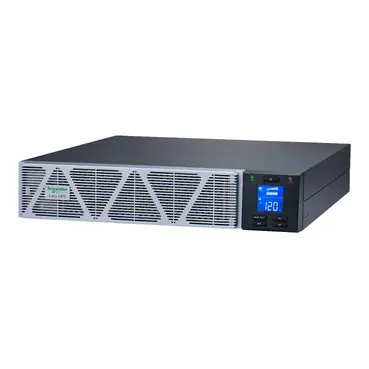

APCSchneider Easy UPS OnLine LiIon SRVL RT 2000VA 120V, with Rail Kit 2U SRVSL2KRARK
