EatonUninterruptible Power Supplies (UPSs)

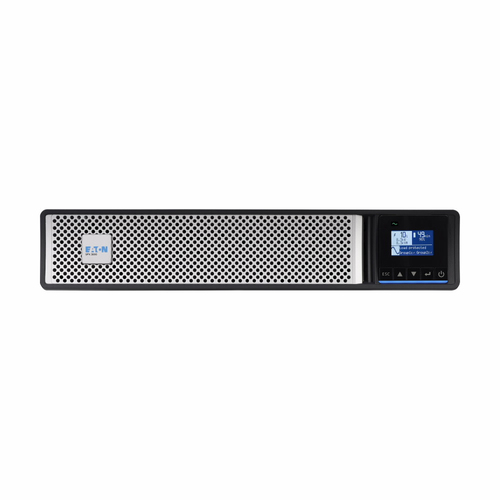

5PX G2 uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 6 AC outlet(s)
- Line-Interactive
- 3 kVA 3000 W
- Waveform: Pure sine
- 6 AC outlet(s)
- Rackmount/Tower Black, Grey
In stockPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Waveform
- Pure sine
- Input operation voltage (min)
- 70 V
- Input operation voltage (max)
- 153 V
- Input frequency
- 50/60 Hz
- Surge energy rating
- 380 J
- Noise level
- 50 dB
- Surge protection
- Yes
- Power protection features
- Overdischarge
Ports & interfaces
- AC outlet types
- NEMA L5-20R
- Power plug
- NEMA 5-20P
- AC outlets quantity
- 6 AC outlet(s)
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- Cabling technology
- 10/100/1000Base-T(X)
Battery
- Typical backup time at half load
- 17 min
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 2U
- Product colour
- Black, Grey
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 50 °C
- Operating relative humidity (H-H)
- 20 - 90%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 10000 m
Certificates
- Compliance certificates
- CE, REACH
- Certification
- CULus RoHS NOM ENERGY STAR certified BSMI IEC 62040-1
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Management card included
- Yes
- Quick installation guide
- Yes
Weight & dimensions
- Width
- 431.8 mm
- Depth
- 601.9 mm
- Height
- 76.2 mm
- Weight
- 33.8 kg
