Home/Catalogue/Eaton/5PX1500HRTG2
Drag to turn · 3 views
EatonUninterruptible Power Supplies (UPSs)

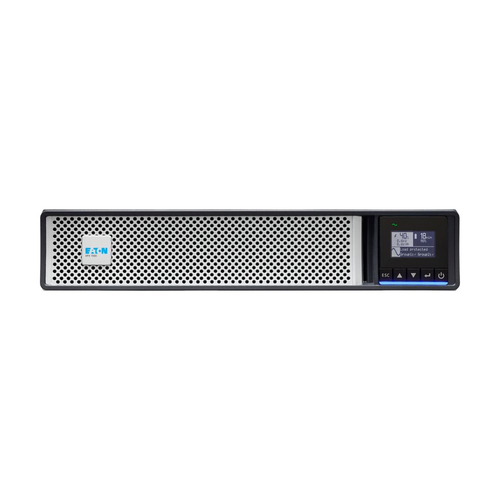

5PX 1500H RT2U G2
- Line-Interactive
- 1.5 kVA 1500 W
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount Black, Silver
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
5PX1500HRTG2
Eaton 5PX G2 UPS, 2U, 1500 VA, 1500 W, C14 input, Outputs: (8) C13, 208V
Specifications
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 1.5 kVA
- Output power
- 1500 W
- Input operation voltage (max)
- 208 V
- Input frequency
- 50/60 Hz
- Heat dissipation
- 699 BTU/h
- Efficiency
- 98%
Ports & interfaces
- AC outlet types
- C13 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 8 AC outlet(s)
Battery
- Battery replacement accessibility
- End-user
- Battery technology
- Sealed Lead Acid (VRLA)
- Typical backup time at full load
- 5 min
- Typical backup time at half load
- 14 min
Design
- Form factor
- Rackmount
- Rack capacity
- 2U
- Product colour
- Black, Silver
- Display type
- LCD
Certificates
- Compliance certificates
- CE, REACH, cULus, RoHS
Packaging content
- Rack mount kit
- Yes
- Cables included
- USB cable, RS-232
- Manual
- Yes
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 436.8 mm
- Depth
- 447 mm
- Height
- 86.3 mm
- Weight
- 22.4 kg
