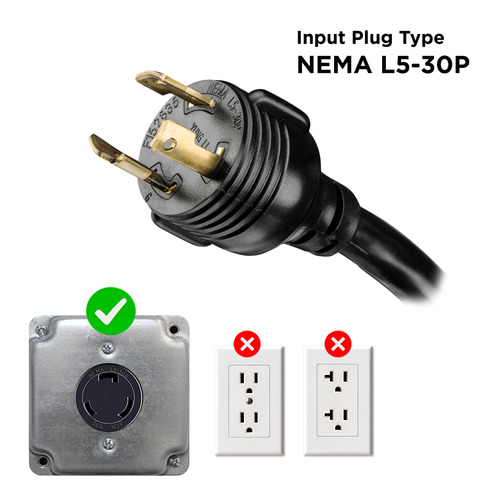

2U 8x520R 10Ft Cord Cloud 3Yr Wty

Part # PR2200RT2UCNUPC 64953293566675.1 lb

Battery Backup
Line-Interactive Topology
Automatic Voltage Regulation (AVR)
Sine Wave Output
Battery Equalization Technology

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Product Overview

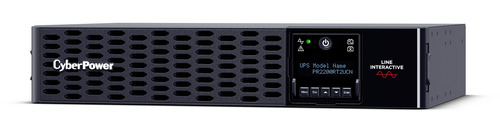

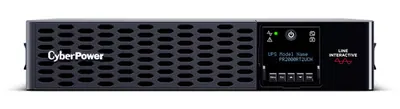

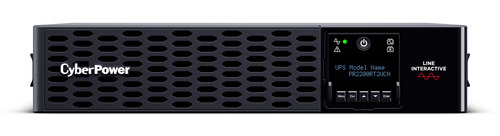

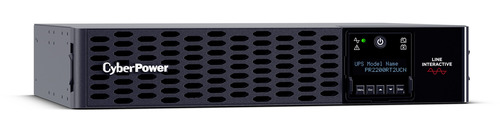

The PR2200RT2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

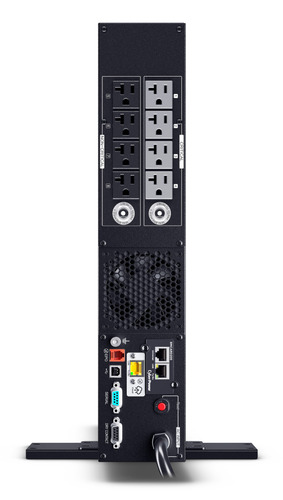

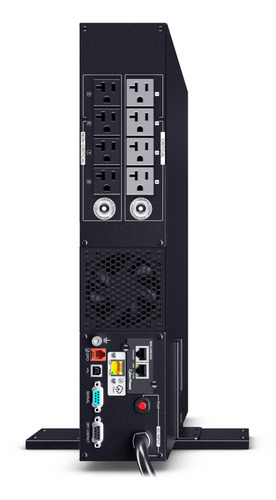

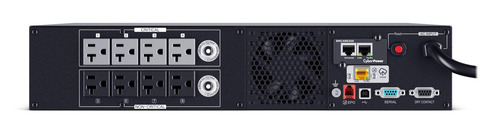

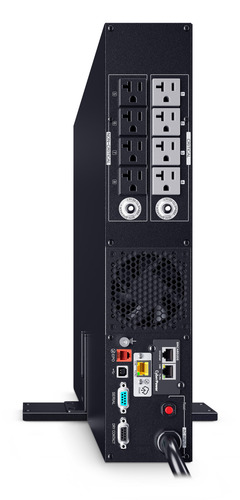

The Smart App Sinewave PR2200RT2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RT2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system and built-in cloud monitoring.

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Line-Interactive Topology

Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)

AVR increases or decreases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

Sine Wave Output

The UPS generates energy that is identical to, or cleaner than the utility company’s power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

Battery Equalization Technology

Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.

Fast Charge Technology

Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.

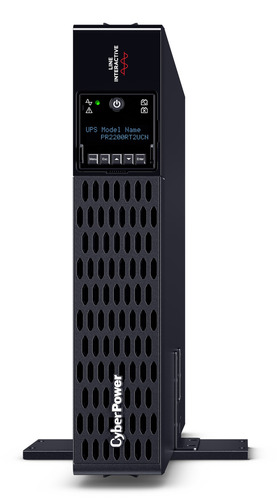

Rotatable Multifunction LCD Panel

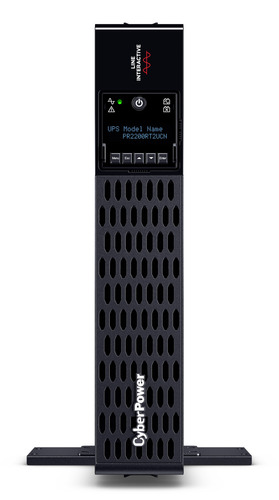

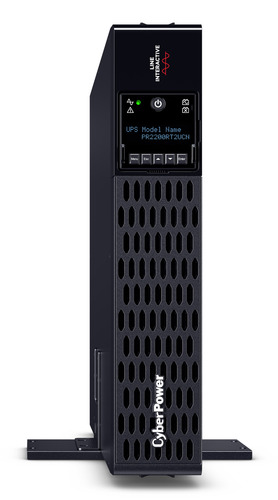

Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.

RMCARD205 Factory Installed

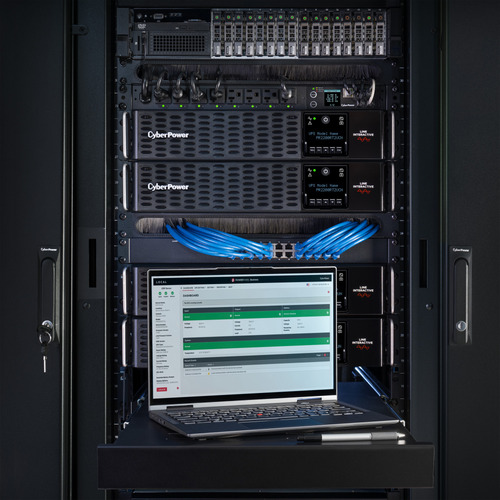

A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors, and controls CyberPower UPS systems via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

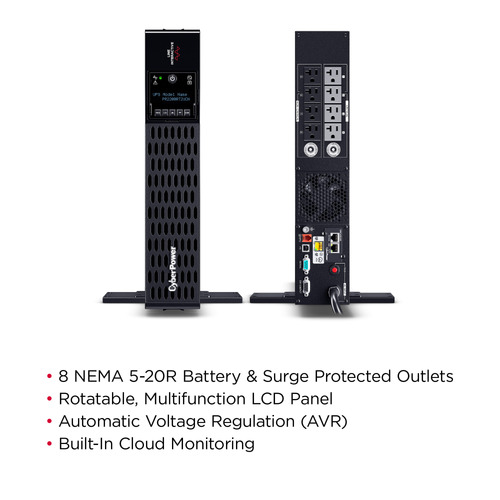

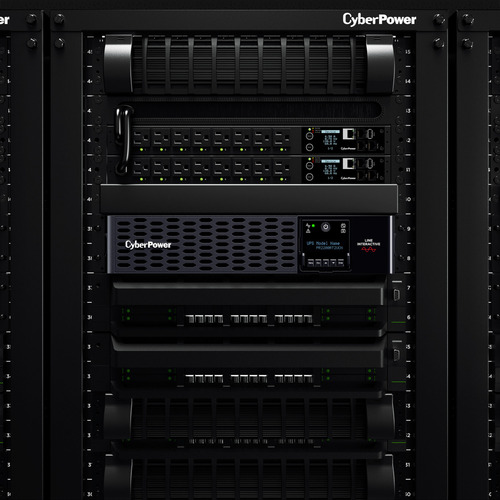

Rack/Tower Versatility

Allows for horizontal rack or vertical tower installation.

PowerPanel® Business Software

Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.

ENERGY STAR

This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Specifications

Features

UPS topology: Line-Interactive
Output power capacity: 2.2 kVA
Output power: 2200 W
Waveform: Sine
Input operation voltage (min): 75 V
Input operation voltage (max): 149 V
Input frequency: 47/63 Hz
Output operation voltage (min): 100 V
Output operation voltage (max): 120 V
Output frequency: 50/60 Hz
Output voltage regulation: ±5%
Automatic Voltage Regulation (AVR): Yes
Surge energy rating: 2430 J
Response time: 6 ms
Output power factor: 1
Emergency Power Off (EPO): Yes
Noise level: 52.5 dB
Surge protection: Yes
Power protection features: Surge protection, Overload
Audible alarm(s): Yes
Audible alarm modes: Alarm when on battery, Low battery alarm, Overload alarm, Fault
