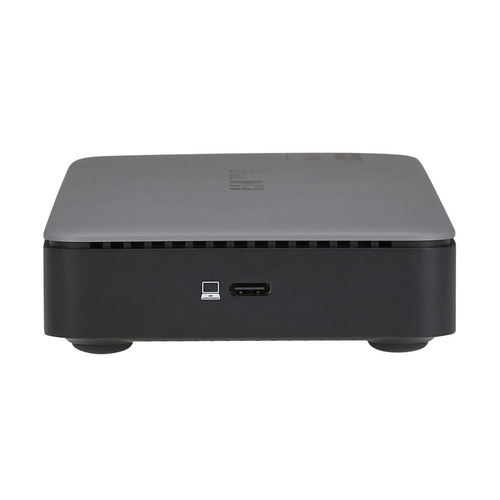

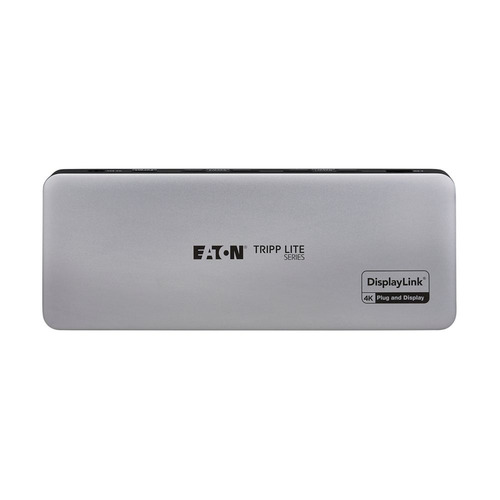

Eaton USBC DOCK 3 DIS 4K HDMI DP USB USB Type-C 10000 Mbit/s Black, Silver

Part # U442-DOCK24DL3AUPC 037332284990Warranty: 1-year2.6 lb

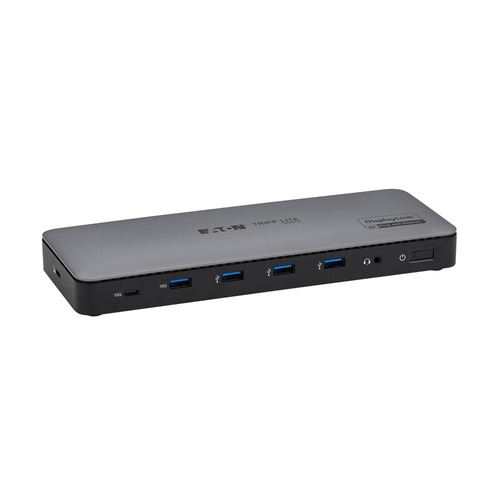

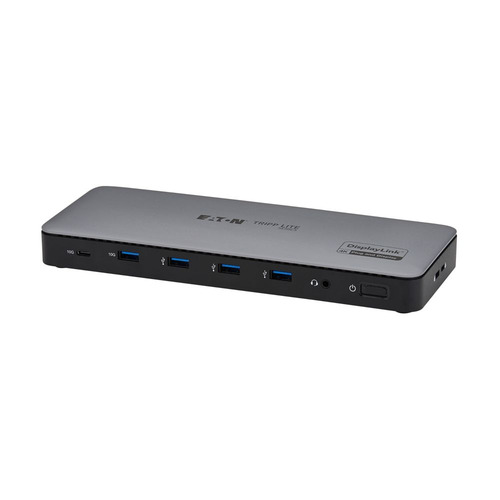

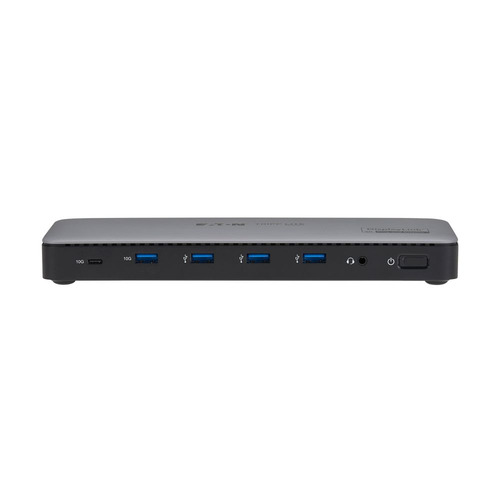

5 USB 3.2 Gen 1/Gen 2 hub ports connect external storage and other peripherals
Joins a wired 2.5 Gbps Ethernet network when no Wi-Fi is available

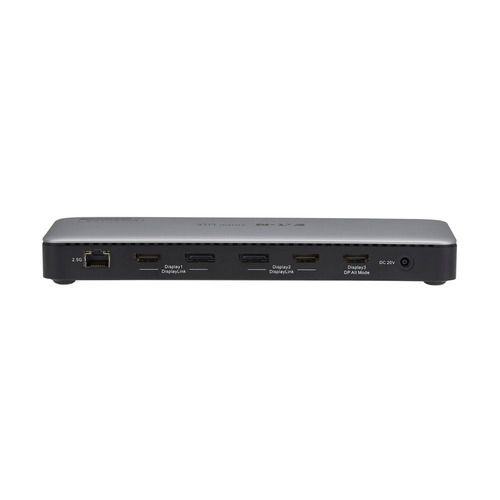

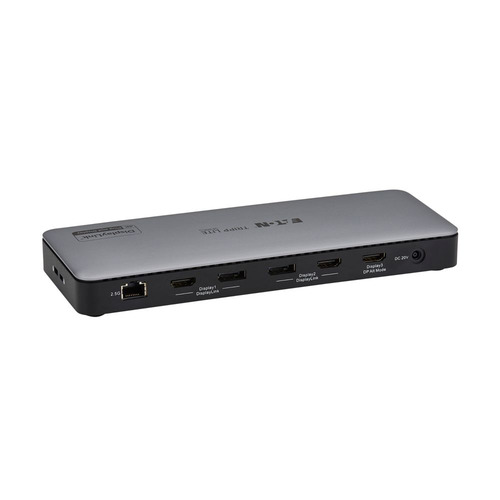

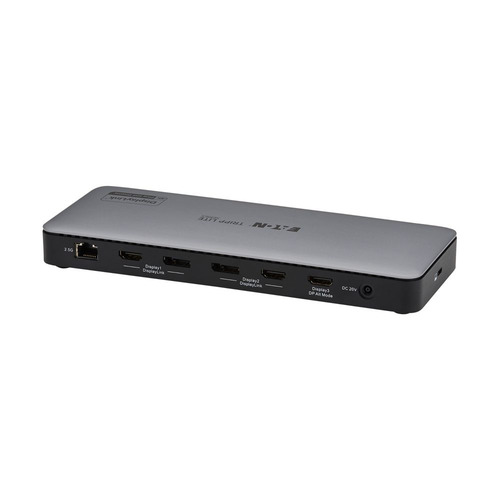

HDMI and DisplayPort video outputs support 4K @ 60 Hz to enhance productivity
USB-C PD 3.0 port supports 100W power output for charging host device

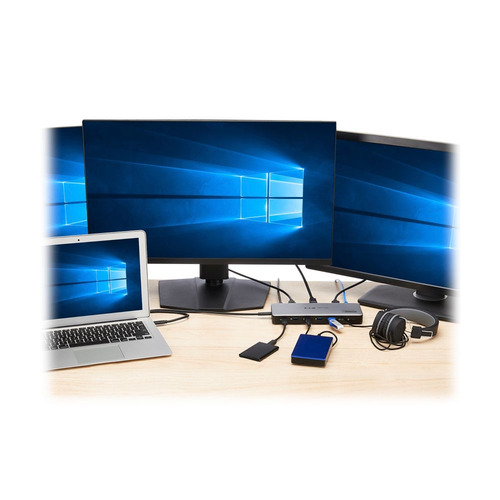

Universal DisplayLink chipset supports triple monitor desktop extension for Windows, Mac OS and Chrome OS

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Universal connectivity for modern workflows

These docking stations unify power, data, video and networking into one streamlined solution, which helps you work faster, smarter and more efficiently. They transform your laptop or tablet into a fully connected workstation, delivering the ports, power and performance modern professionals need. They streamline connectivity, reduce clutter and make it easy to expand your network capabilities in any environment.

Benefits that power productivity

By standardizing on these docking stations, you gain:

- Simplified connectivity with fewer adapters and cables.

- Enhanced productivity through multi-display support and high-speed data transfer.

- Reliable networking with built-in Gigabit Ethernet.

- Future-ready flexibility with support for Thunderbolt 3, USB-C and USB 3.2 devices.

Applications across industries

These docking stations are designed for enterprise IT, education, healthcare, creative studios and remote workforces. In corporate offices, they simplify hot-desking by letting employees connect instantly with one cable. In education, they support hybrid classrooms by enabling laptops to connect to projectors, displays and networks. For those who work from home, they turn a laptop into a desktop-class workstation without sacrificing portability.

Specifications

Ports & interfaces

Host interface: USB Type-C
Hub interfaces: USB Type-C, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 3.5mm, RJ-45, DisplayPort
DisplayPort version: 1.4
Ports quantity: 13
Ethernet LAN (RJ-45) ports: 1

Features

Data transfer rate: 10000 Mbit/s
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
High Dynamic Range (HDR) supported: Yes
3D: Yes
Product colour: Black, Silver
Housing material: Acrylonitrile butadiene styrene (ABS), Polyvinyl chloride (PVC)
HDCP: Yes
HDCP version: 1.4/2.3
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
Mirror mode: Yes
Multi-Stream Transport (MST): Yes
Number of displays supported: 3
Cable jacket material: Polyvinyl chloride (PVC)
Cable length: 0.183 m
Connector contacts plating: Nickel

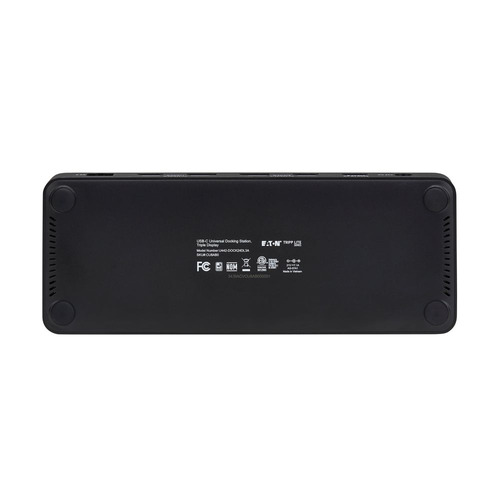

Certification: CSA Std. C22.2 UL 62368-1
