Thunderbolt 4 Dock - Dual 4K Macbook Pro and M4 Air, Quad Monitor 4K Windows, 16 Port 40Gbps Laptop

Part # 132N-TB4USB4DOCKUPC 065030899277Warranty: 3 Years2.85 lb

Thunderbolt 4 Certified docking station
Driverless
Works with all TB 3/4 laptops
2x HDMI and 2x DisplayPort supports up to quad 4K 60Hz w/Intel 12th Gen CPU supporting DP 1.4 w/DSC
Quad displays at lower resolutions or refresh rates without DSC or with earlier Intel revisions
Single display up to 8K 60Hz

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Universal Laptop Dock offering driverless compatibility with Windows and macOS

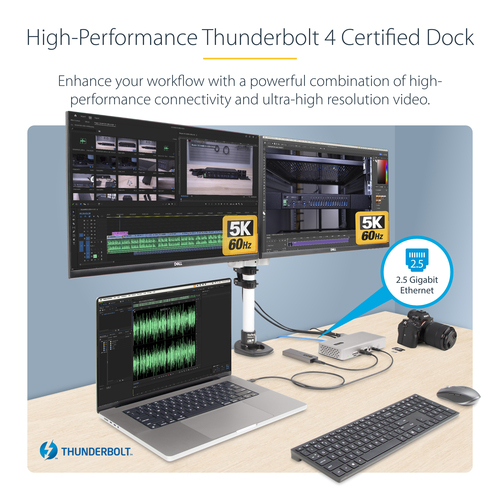

Engineered to maximize performance and future-proof your workspace, this universal USB4 and Thunderbolt 4 dock is Thunderbolt Certified, ensuring reliable connectivity and optimal user experience.

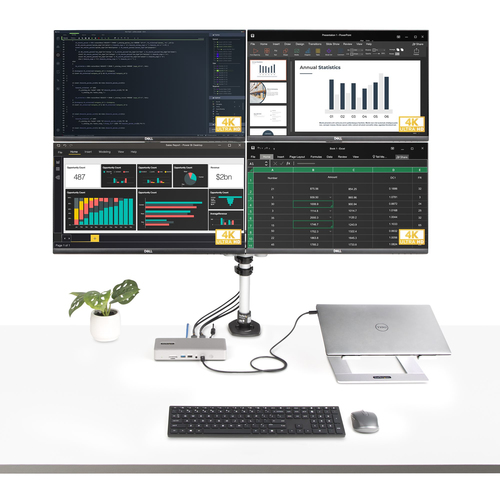

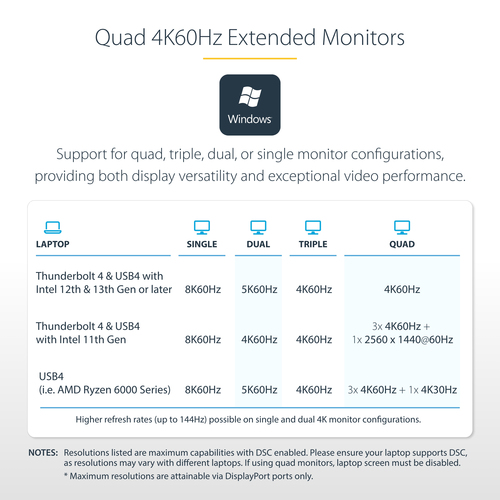

Quad Display on Windows

Push the boundaries of productivity with quad 4K 60Hz displays on Windows laptops running the latest Intel 12th Gen CPUs (or later) and DP 1.4 with DSC. Legacy systems still benefit from flexible dual or triple monitor setups.

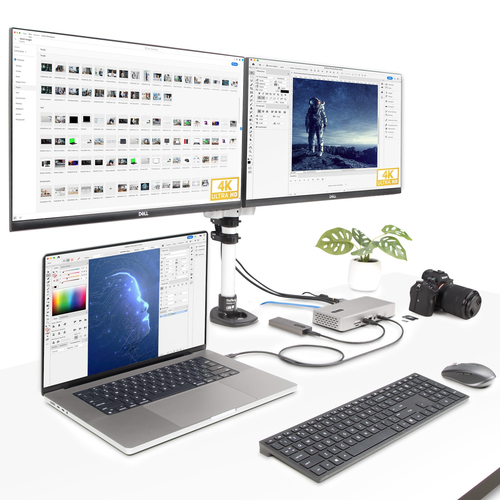

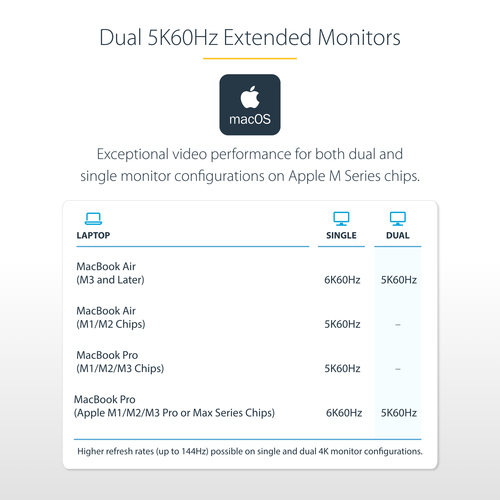

Dual Display on Mac

Experience dual extended 4K displays on MacBook Air and Pro powered by M3, M4 or M5 chips (clamshell mode required for M3), and MacBook M1 / M2 Pro or Max configurations. For Apple computers featuring the M-series base processor only a single display is supported.

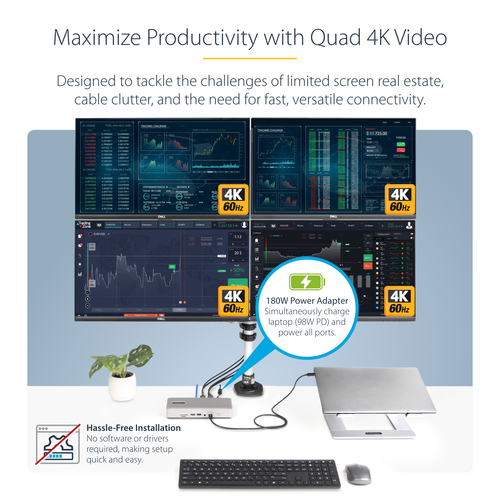

98W Power Delivery

Includes a fully spec'd 180W power adapter that enables the dock to charge the laptop with 98W Power Delivery, while preserving enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.

Enterprise Management Tools

StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.

Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management Tools.

Specifications

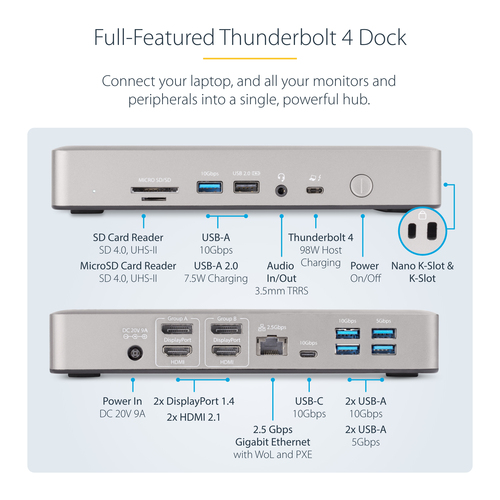

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 4
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
HDMI ports quantity: 2
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Copper ethernet cabling technology: 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T
Full duplex: Yes

Performance

Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate: 40 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Maximum refresh rate: 60 Hz
Cable lock slot: Yes
Cable lock slot type: Kensington, Nano
Product colour: Grey
On/off switch: Yes
LED indicators: LAN, Power
UASP support: Yes
Housing material: Aluminium

Power

Power source type: DC
AC input voltage: 110 - 240 V
Input current: 2.5 A
Output voltage: 20 V
Output current: 9 A
Power consumption (max): 180 W
Compatible power plug types: US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Sustainability

Sustainability compliance: Yes

Weight & dimensions

Width: 210 mm
Depth: 96 mm
Height: 34 mm
Weight: 200 g

Packaging data

Package width: 146 mm
Package depth: 232 mm
Package height: 91 mm
Package weight: 1.4 kg

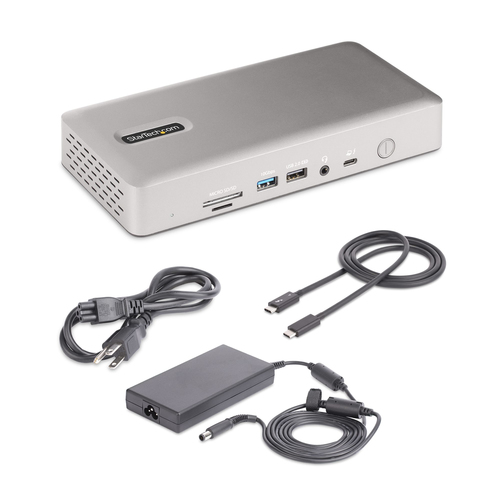

Packaging content

Cables included: Thunderbolt
AC adapter included: Yes
Quick start guide: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case width: 382 mm
Master (outer) case length: 309 mm
Master (outer) case height: 272 mm

Other features

Chipset: Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546
