Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz

High-Performance Dual Video via MST

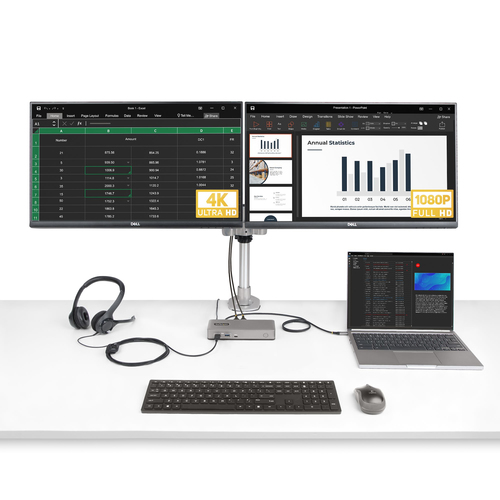

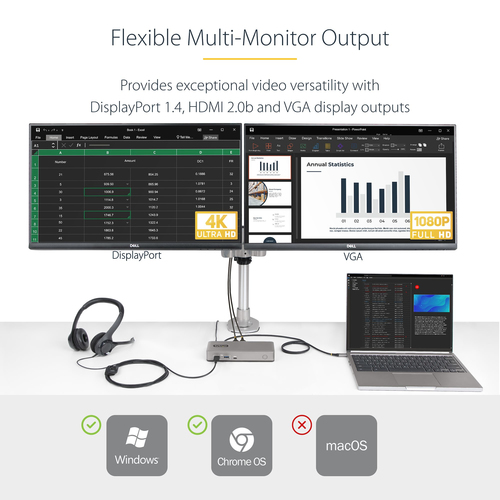

The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.

Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.

Platform

Single Monitor

Resolution

Dual Monitor

Resolution

DisplayPort 1.4

(Intel 11th Generation and Higher)

1x 4K 60Hz

2x 2560 x 1440p 60Hz

DisplayPort 1.2

(Intel 10th Generation and Below)

1x 4K 30Hz

2x 1920x1200/1080p 60Hz

Notes:

• All specified resolutions support RGB color representation (4:4:4)

• Computers with discrete graphics controllers may achieve higher performance

• Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration

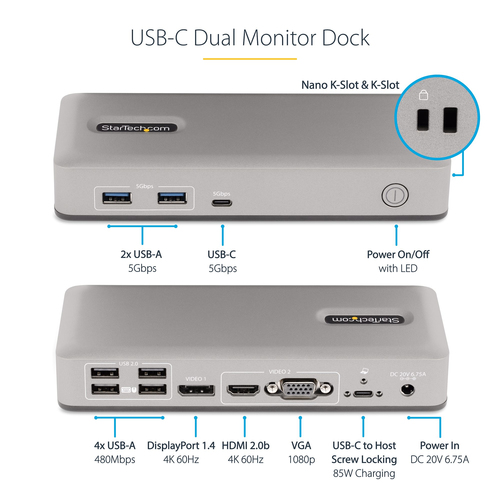

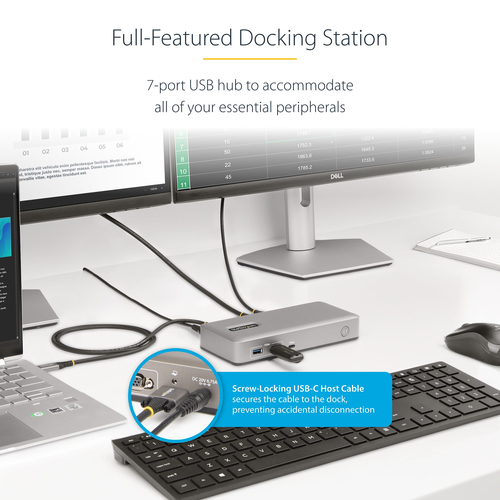

Full-Featured Docking Station with Built-in 7-Port USB Hub

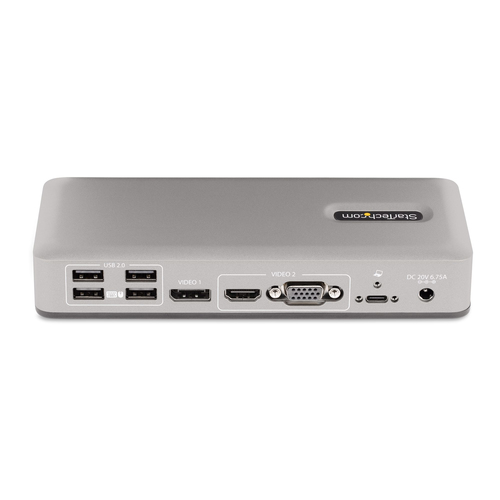

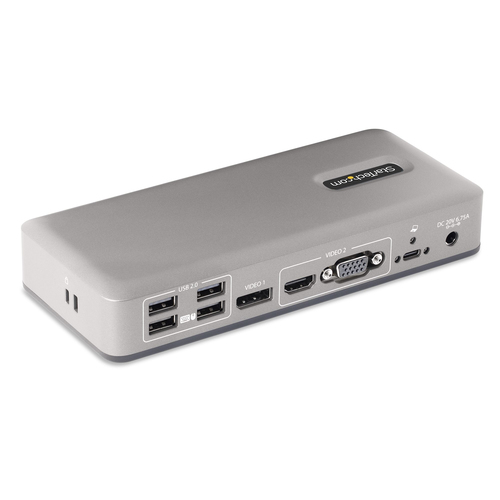

Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:

• 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.

• 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.

• 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.

• 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.

• 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.

• 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
