USB-C Triple Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 3-Port USB

Part # 117B-USBC-MULTIPORTUPC 065030896078Warranty: 3 Years0.5 lb

USB-C multiport adapter enables single/dual/triple multimonitor output (up to 1x 4K 60Hz+2x 4K 30Hz) from a combo of HDMI 2.0b and DisplayPort (DP) 1.2 video via MST
3-port USB-A 10Gbps hub | GbE | Built-in 2ft host cable w/TPE jacket
Portable USB Type-C Travel Docking Station supports Intel 11th gen or higher
Universal Mini Dock works w/USB-C/USB4/TB3/TB4 computers and Windows/ChromeOS
Bus-powered or 100W PD 3.0 pass-through (15W for adapter/85W charging) w/Type-C laptop power adapter

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Create a mobile workstation with dual or triple 4K video via HDMI and/or DisplayPort (MST support required), three USB-A ports, Gigabit Ethernet and pass-through power delivery to charge the laptop

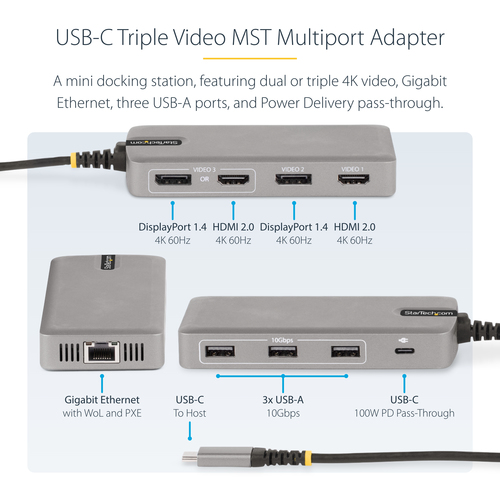

This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

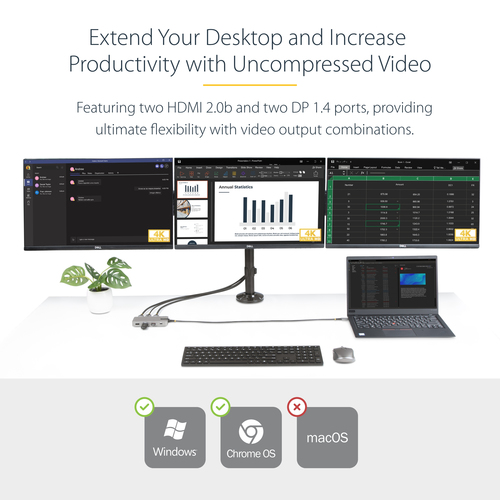

High-Performance Triple Video via MST

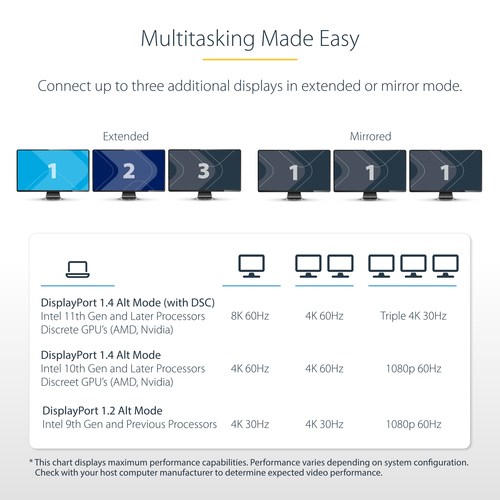

The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 1x 4K (3840 x 2160p) at 60Hz and 2x 4K (3840 x 2160p) at 30Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.

Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.

Connect USB Peripherals

The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).

Extra Long Cable & Durable Build

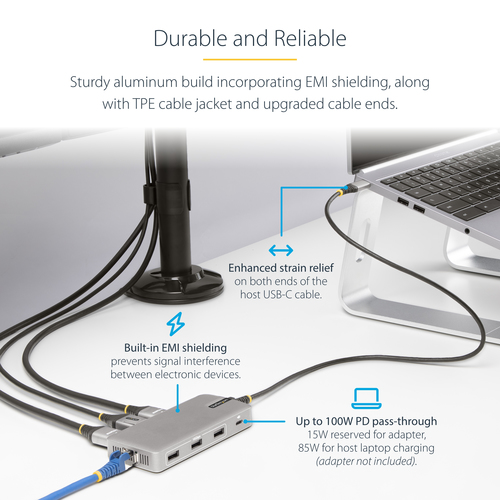

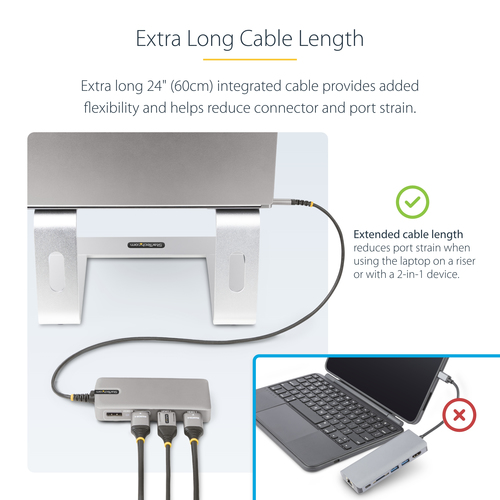

The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.

100W Power Delivery

Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• MAC Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 1.4
Microphone in: No
DC-in jack: No

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Grey
LED indicators: Yes
UASP support: Yes
Housing material: Plastic

Power

Power source type: USB
Power consumption (typical): 15 W
USB cable length: 0.6 m
Wireless charging: No

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Other operating systems supported: ChromeOS
