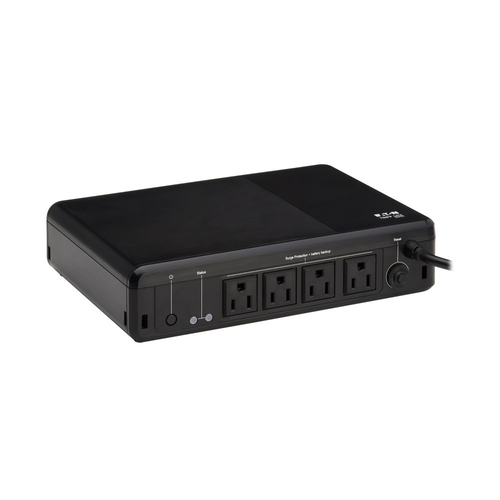

Tripp Lite BC600R Drag to turn · 13 views
Tripp LiteUninterruptible Power Supplies (UPSs)

series 600VA 300W 120V Standby UPS - 4 NEMA 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop

Part # BC600RUPC 0373322820714.9 lb

  • Standby (Offline)
  • 0.6 kVA 300 W
  • Waveform: Sine
  • 4 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Rackmount Black
Special orderPrice on request
View quote list
  • Reply within 1 business day
  • Volume & business pricing
  • Shipping across Canada & US

Overview

Dependable Battery Backup for PCs and Retail Point-of-Sale Applications

This standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It’s easy to set up in minutes. Just plug the UPS into a properly grounded wall outlet, connect equipment to the UPS outlets and press the power button.

01

Allows Time to Back Up Critical Files During a Blackout

During short blackouts and brownouts, the UPS switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable valve-regulated lead acid (VRLA) battery fully charged, so backup power is always available.

02

Filtering EMI/RFI Line Noise Helps Your Equipment Perform Better

This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Its outlets also feature surge suppression to protect your connected devices from the harmful effects of voltage spikes and power surges.

03

Easy Preventative Maintenance and Initial Troubleshooting

The self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

04

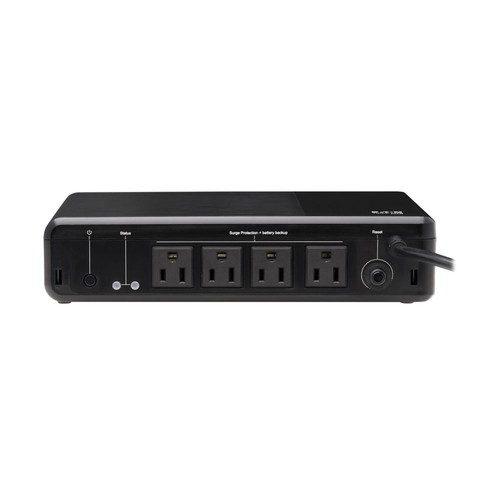

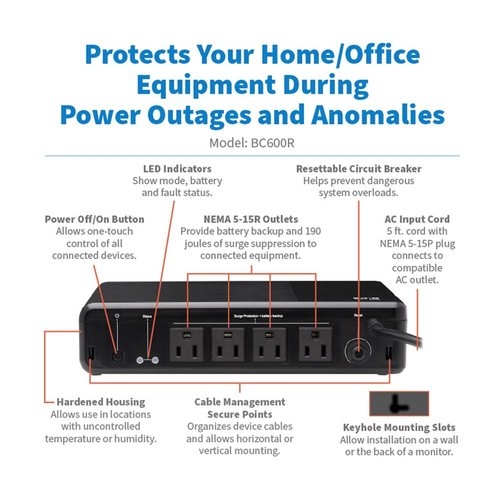

Audible Alarm and Diagnostic LEDs Keep You Informed 24/7

An audible alarm alerts you to critical events like low battery or overload conditions. LEDs indicate power status, battery mode and fault alerts.

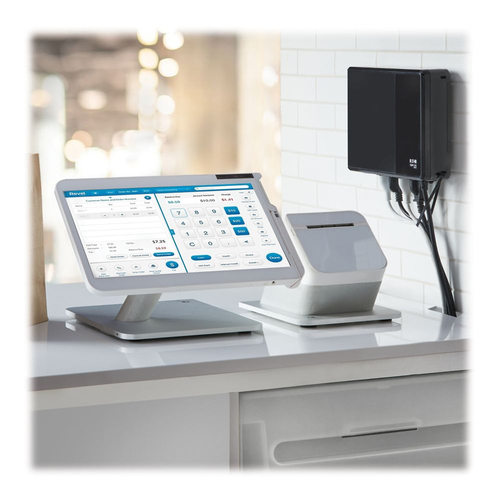

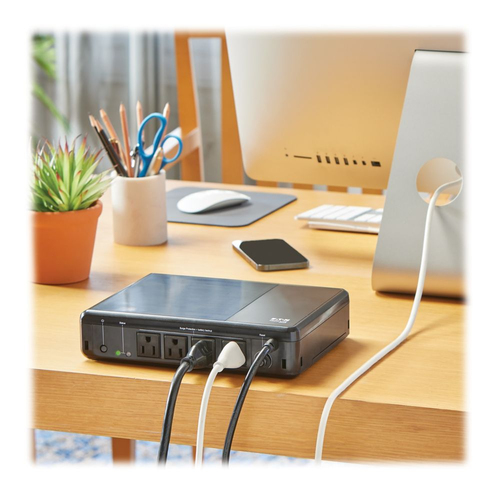

Compact Housing Compatible with Easy Desktop or Wall-Mount Installation

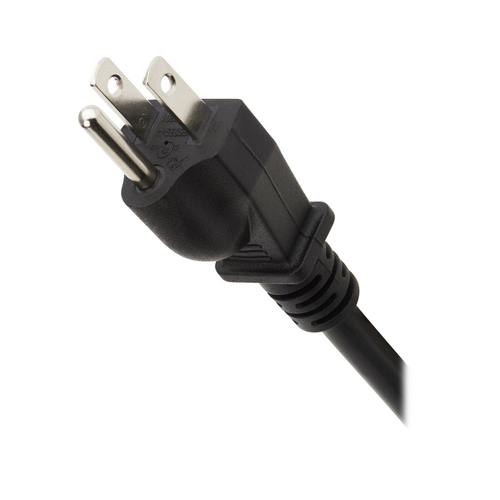

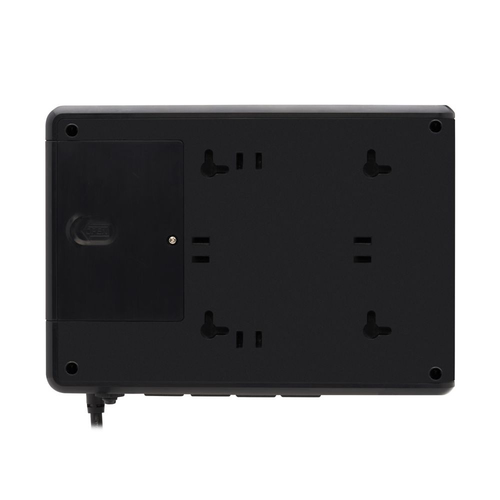

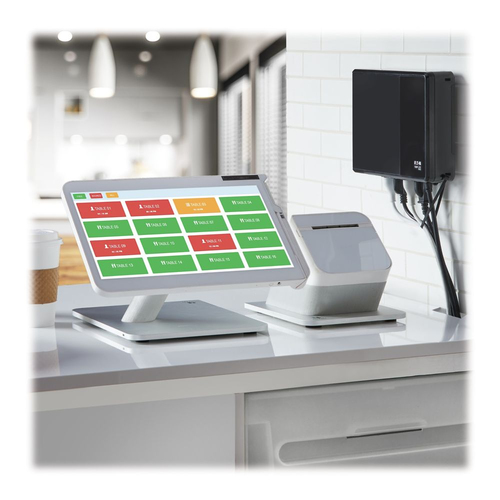

The space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.

Specifications

Features

UPS topology
Standby (Offline)
Output power capacity
0.6 kVA
Output power
300 W
Waveform
Sine
Input operation voltage (max)
120 V
Input frequency
50/60 Hz
Output operation voltage (max)
120 V
Maximum current
5 A
Surge energy rating
190 J
Number of input phases
1
Output power factor
0.5
EMI/RFI noise filtering
Yes
Noise level
40 dB
Surge protection
Yes
Audible alarm(s)
Yes

Ports & interfaces

AC outlet types
NEMA 5-15R
Power plug
NEMA 5-15P
AC outlets quantity
4 AC outlet(s)

Battery

Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
1.2 min
Typical backup time at half load
5 min
Cold start
Yes

Design

Form factor
Rackmount
Housing material
Acrylonitrile butadiene styrene (ABS)
Rack capacity
0U
Cable length
1.52 m
Product colour
Black

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-15 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Operating altitude
0 - 2000 m

Certificates

Compliance certificates
Federal Communications Commission (FCC), RoHS, CSA, Norma Oficial Mexicana (NOM), UL

Sustainability

Sustainability certificates
ENERGY STAR

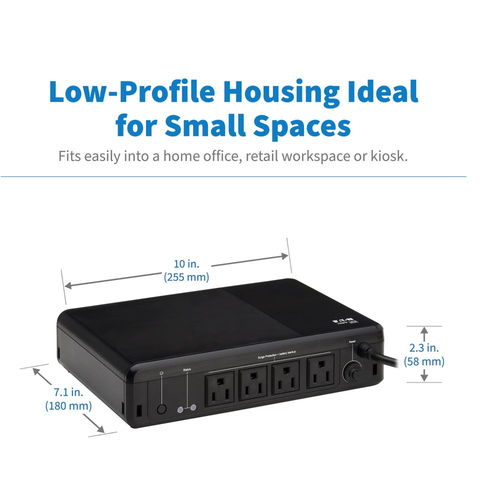

Weight & dimensions

Width
255 mm
Depth
180 mm
Height
57.9 mm
Weight
2 kg
