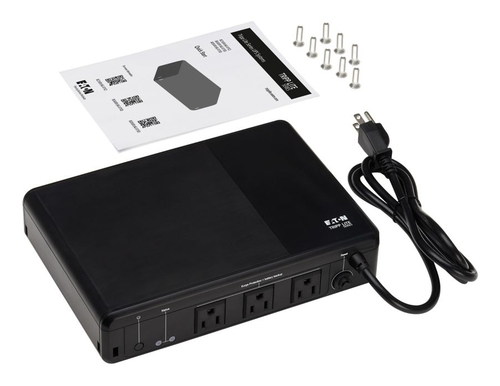

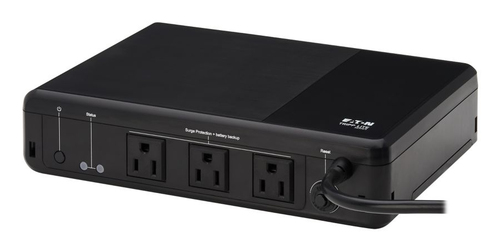

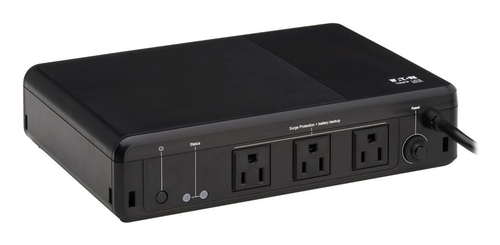

series 350VA 210W 120V Standby UPS 3 NEMA 515R Outlets Surge + Battery Backup, 515P Plug, Desktop
- Create account with two-factor authentication for an additional layer of security
- Lets you control outlets or shut down devices using your PC, tablet or smartphone
- Cloud-connected UPS sets up in minutes to start protecting your devices
- Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
- NFC technology allows easy configuration of network settings from your mobile device
- Sends you fast alert notifications and responses through email or SMS
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Dependable Battery Backup for PCs and Retail Point-of-Sale Applications
This standby UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise for computing, networking and point-of-sale equipment in retail, kiosks, food service, and light industrial environments. It’s easy to set up in minutes. Just plug the UPS into a properly grounded wall outlet, connect equipment to the UPS outlets and press the power button.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts and brownouts, the UPS switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the user-replaceable valve-regulated lead acid (VRLA) battery fully charged, so backup power is always available.
Filtering EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Its outlets also feature surge suppression to protect your connected devices from the harmful effects of voltage spikes and power surges.
Easy Preventative Maintenance and Initial Troubleshooting
The self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.

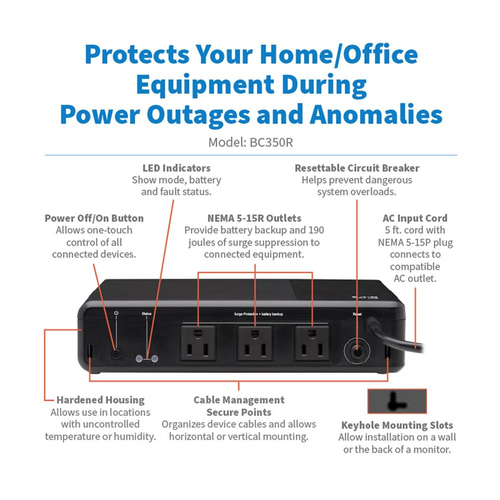

Audible Alarm and Diagnostic LEDs Keep You Informed 24/7

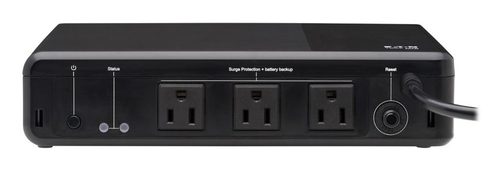

An audible alarm alerts you to critical events like low battery or overload conditions. LEDs indicate power status, battery mode and fault alerts.

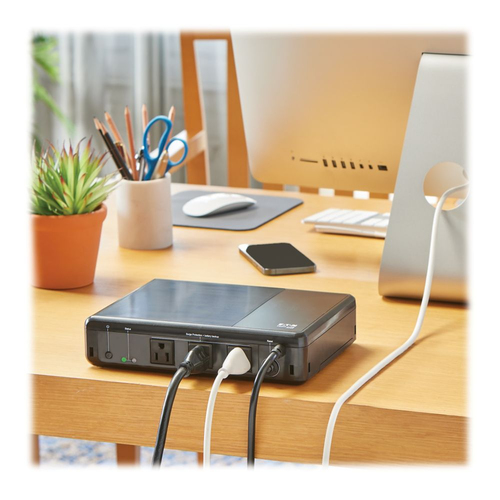

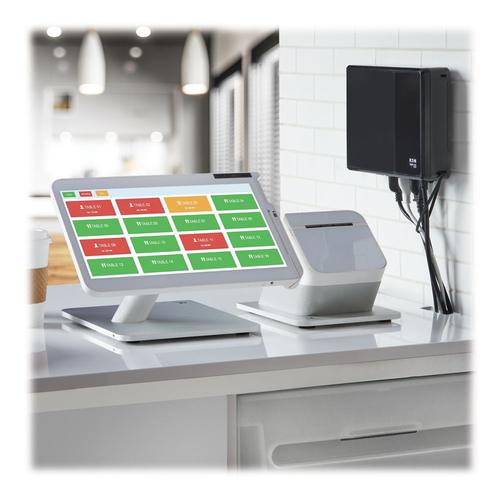

Compact Housing Compatible with Easy Desktop or Wall-Mount Installation

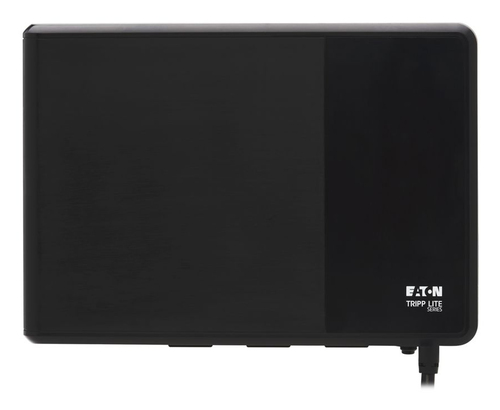

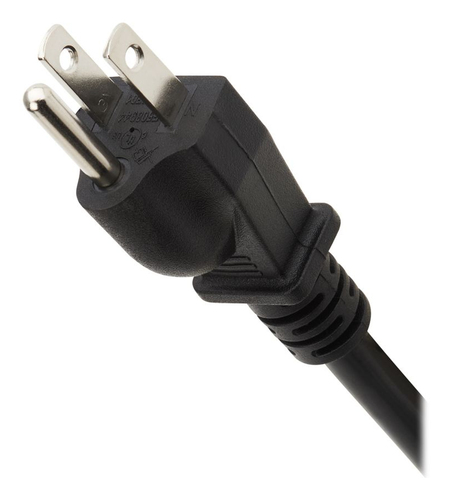

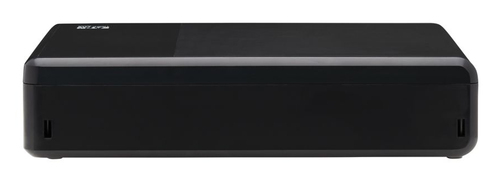

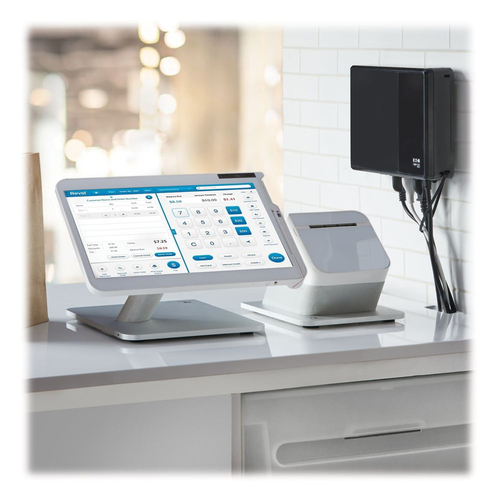

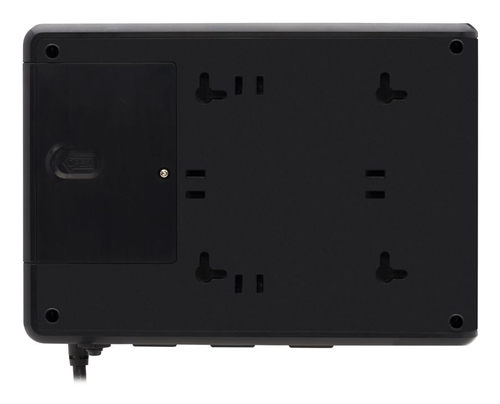

The space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
Specifications
Features
- UPS topology
- Standby (Offline)
- Output power
- 210 W
- Waveform
- Sine
- Input operation voltage (min)
- 120 V
- Input frequency
- 50/60 Hz
- Maximum current
- 5 A
- Noise level
- 40 dB
Ports & interfaces
- AC outlet types
- NEMA 5-15R
- AC outlets quantity
- 3 AC outlet(s)
Battery
- Battery recharge time
- 8 h
Design
- Form factor
- Desktop
- Product colour
- Black
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -15 - 50 °C
- Operating relative humidity (H-H)
- 0 - 95%
Certificates
- Compliance certificates
- RoHS, Federal Communications Commission (FCC), CSA, ICES, Norma Oficial Mexicana (NOM)
Weight & dimensions
- Width
- 255 mm
- Depth
- 180 mm
- Height
- 58 mm
