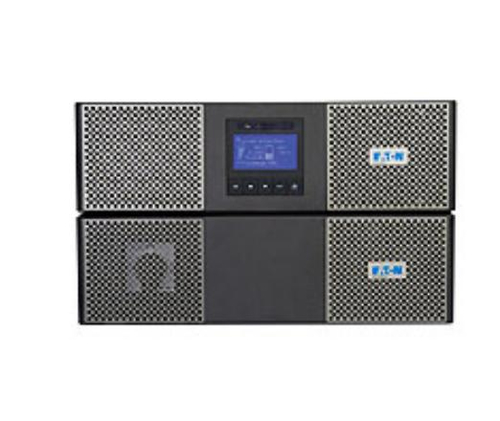

Home/Catalogue/Eaton/9PX3K3UNP1
EatonUninterruptible Power Supplies (UPSs)
Kit: 9PX3K3UN + 9PXPPDM1
- Double-conversion (Online)
- 3 kVA 3000 W
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black, Silver
Special orderPrice on request
- Reply within 1 business day
- Volume & business pricing
- Shipping across Canada & US
Overview
Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 3 kVA
- Output power
- 3000 W
- Input operation voltage (min)
- 100 V
- Input operation voltage (max)
- 276 V
- Input frequency
- 50/60 Hz
- Output operation voltage (min)
- 120 V
- Output operation voltage (max)
- 240 V
- Output voltage regulation
- 1%
- Efficiency
- 92%
- Input power factor
- 0.99
- Output power factor
- 1
- Emergency Power Off (EPO)
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 2%
- Noise level
- 45 dB
- Surge protection
- Yes
- Web-based management
- Yes
- Management protocols
- SNMP
Ports & interfaces
- AC outlet types
- NEMA L14-30R, NEMA L5-20R, NEMA L6-30R
- Power plug
- NEMA L6-30P
- AC outlets quantity
- 8 AC outlet(s)
- USB port
- Yes
- USB 2.0 ports quantity
- 1
- Serial interface
- Yes
- Serial interface type
- RS-232
- RS-232 ports
- 1
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Hot-swap battery
- Yes
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Rack capacity
- 6U
- Product colour
- Black, Silver
- Display type
- LCD
- LED indicators
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 60 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
Certificates
- Compliance certificates
- RoHS
- Certification
- IEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class A CE / cULus / NOM
Packaging content
- Cables included
- RS-232, USB cable
- Manual
- Yes
- Quick installation guide
- Yes
Sustainability
- Sustainability certificates
- ENERGY STAR
Weight & dimensions
- Width
- 439 mm
- Depth
- 721 mm
- Height
- 259 mm
- Weight
- 92 kg
Other features
- Nominal output voltage
- 120 - 240 V
- Nominal input voltage
- 208 V
