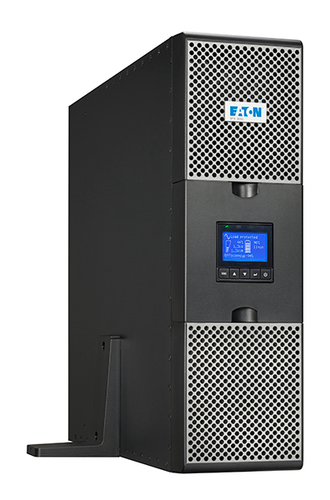

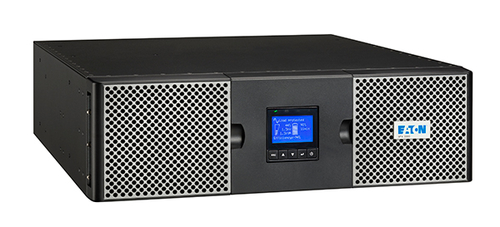

9PX Marine 3000VA UPS Rack/Tower

Part # 9PX3000IRTMUPC 743172081667Warranty: 3 years on electronics, 2 years on batteries68 lb

Double-conversion (Online)
3 kVA 3000 W
Waveform: Pure sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.

Specifications

Features

UPS topology: Double-conversion (Online)
Output power capacity: 3 kVA
Output power: 3000 W
Waveform: Pure sine
Input operation voltage (min): 176 V
Input operation voltage (max): 276 V
Input frequency: 40/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Number of input phases: 1
Efficiency: 0.94%
Power factor: 1
Noise level: 40 dB

Ports & interfaces

AC outlet types: C13 coupler, C19 coupler
Power plug: C20 coupler
AC outlets quantity: 10 AC outlet(s)
USB port: Yes
USB 2.0 ports quantity: 1
Serial interface: Yes
Serial interface type: RS-232
RS-232 ports: 1

Battery

Battery technology: Sealed Lead Acid (VRLA)
Typical backup time at half load: 9.5 min
Hot-swap battery: Yes
Automatic battery test: Yes

Design

Form factor: Rackmount/Tower
Rack capacity: 3U
Product colour: Black
Display type: LCD
LED indicators: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Certificates

Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
