Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand

Part # USB3SDOCKDDUPC 065030858267Warranty: 3 Years1.35 lb

Dual-monitor USB 3.0 docking station lets you connect your Mac or Windows laptop to two monitors
USB 3.0 dock supports your existing displays two display adapters (DVI to VGA and HDMI) included
USB 3.0 port replicator features two front facing USB ports that are USB-fast charge ports to charge your mobile devices faster
Dual DVI docking station has 5x USB 3.0 (AKA USB 3.1 Gen 1) ports and a GbE port
Dual monitor docking station backed by a 3-year warranty and free lifetime tech support

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Laptop Docking Station | Mac & Windows® | DVI to VGA & HDMI® Adapters | 2x Charge Ports

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.

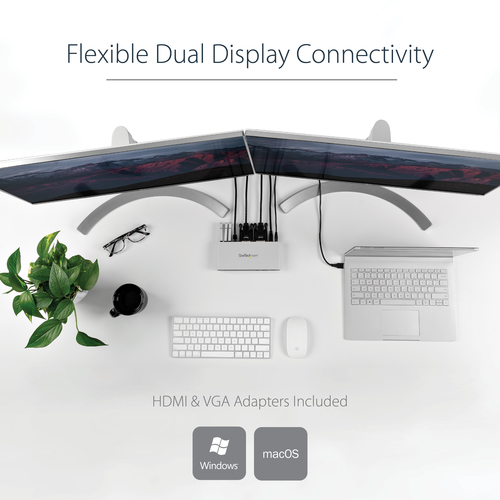

Display Flexibility

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.

Powerful Connections and Fast Device Charging

Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.

Save Desktop Space

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.

The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
DVI-I ports quantity: 1
DVI-D ports quantity: 1
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Wake-on-LAN ready: Yes
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance

Card reader integrated: No
Data transfer rate: 5 Gbit/s
Maximum analog resolution: 2048 x 1152 pixels
Product colour: Black, Silver
LED indicators: Power
Charging function: Yes
UASP support: Yes
Rubber feet: Yes
Housing material: Aluminium, Plastic
Brand compatibility: Any brand
Certification: CE, FCC, REACH

Power

Power source type: AC
AC input voltage: 100 - 240 V
Input current: 0.8 A
Output voltage: 5 V
Output current: 4 A
Power consumption (typical): 20 W
Power plug type: Type M
Compatible power plug types: AU, EU, UK, US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 5 - 85%

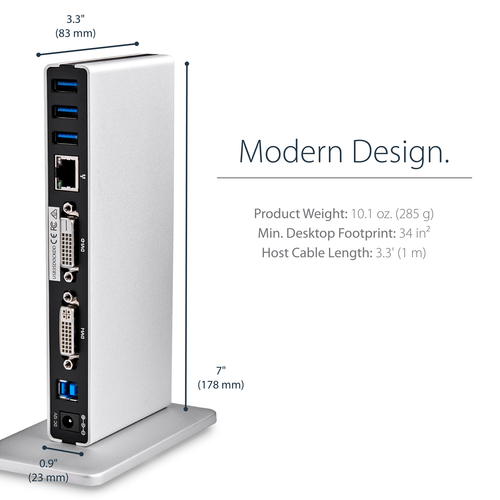

Weight & dimensions

Width: 23 mm
Depth: 83 mm
Height: 178 mm
Weight: 285 g

Packaging data

Package width: 255 mm
Package depth: 186 mm
Package height: 95 mm
Package weight: 1.02 kg

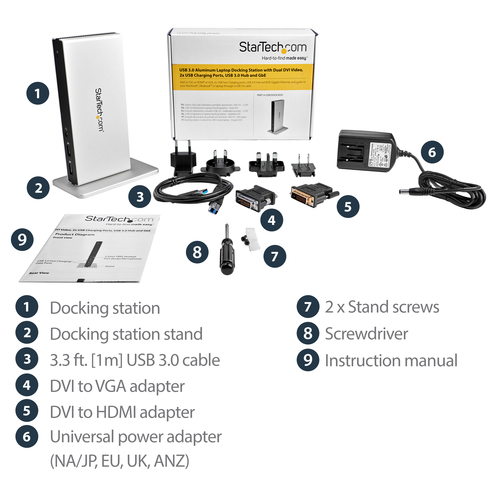

Packaging content

Cables included: USB
AC adapter included: Yes
Manual: Yes
Drivers included: Yes
Interface adapters included: DVI-I male - HDMI female, DVI-I male - VGA female
Stand included: Yes
