StarTech.comLaptop Docks & Port Replicators

Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power

Part # TB3DOCK2DPPDUPC 065030863667Warranty: 3 Years4.05 lb

Certified Thunderbolt 3 docking station
Driverless setup
Dual monitor 4K 60Hz w/DisplayPort + TB3 (USB-C) video output or single 5K
Works w/all TB3/4 laptops
Extended dual displays on Apple M3 MacBook Air/Pro and M1/M2 /M3 Max and Pro MacBooks (single Display on Apple M1/M2 entry level)
Downstream TB3 port for 2nd display/daisy chain

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

Laptop Docking Station | Mac & Windows® | SD Card Reader | USB-C to DP Cable | 85W PD

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

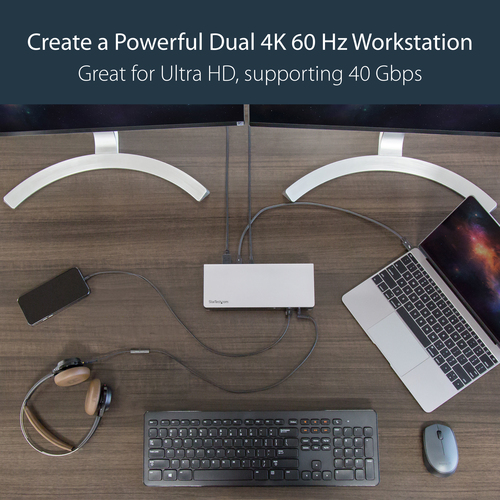

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

• 1 x 4K monitor via the DP Port

• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

• 1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

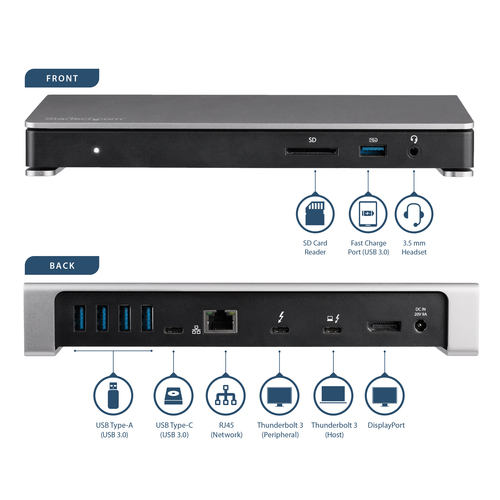

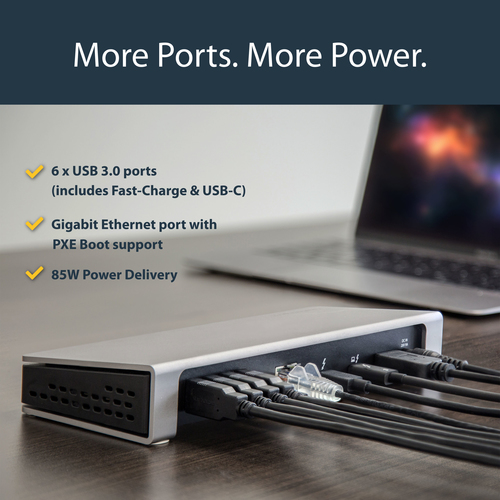

Plenty of Ports Including SD Card Reader

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery

Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• Mac Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 5
USB Power Delivery (USB PD): Yes
USB Power Delivery up to: 85 W
DisplayPorts quantity: 1
Thunderbolt 3 ports quantity: 2
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes

Performance

Card reader integrated: Yes
Compatible memory cards: MMC, MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate: 40 Gbit/s
Maximum digital resolution: 5120 x 2880 pixels
Product colour: Black
UASP support: Yes
Housing material: Aluminium
Certification: CE, FCC, REACH

Power

AC input voltage: 100 - 240 V
Input current: 2.5 A
Power supply type: External
Output voltage: 20 V
Output current: 9 A
Power consumption (standby): 180 W
Power plug type: Type N
Compatible power plug types: AU, JP, US

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

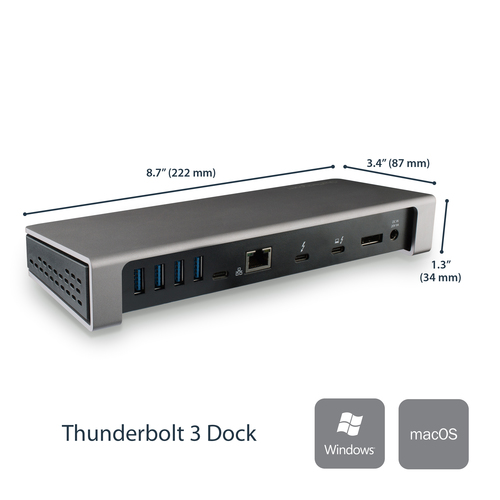

Weight & dimensions

Width: 87 mm
Depth: 222 mm
Height: 34 mm
Weight: 492 g

Packaging data

Package width: 148 mm
Package depth: 298 mm
Package height: 95 mm
Package weight: 1.5 kg

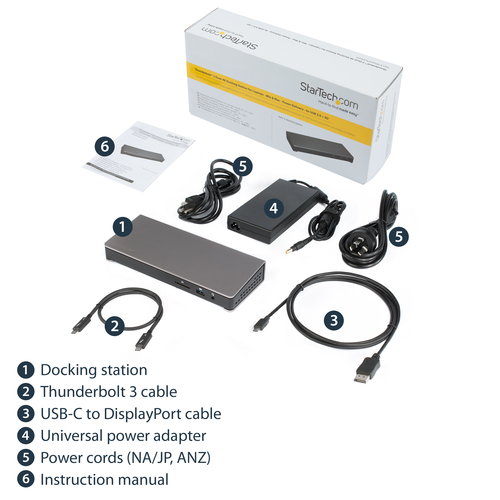

Packaging content

Cables included: AC, Thunderbolt, USB Type-C
AC adapter included: Yes
Manual: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 318 mm
Master (outer) case length: 480 mm
Master (outer) case height: 320 mm

Other features

Chipset: Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226
