StarTech.comLaptop Docks & Port Replicators

USB C Multiport Adapter - USB Type-C Mini Dock with HDMI 4K or VGA 1080p Video - 100W Power

Part # DKT30CHVSCPDUPC 065030879170Warranty: 3 Years0.3 lb

USB-C Multiport adapter with 4K 30Hz HDMI or 1080p VGA video/3x 5Gbps USB-A Hub/SD/microSD/Gigabit Ethernet/1x headset/mic jack
Mini travel dock w/up to 100W Power Delivery passthrough | 15W for adapter and remainder to power laptop
Simultaneous access to SD and microSD card readers
USB 3.0 Type-A port supports BC 1.2 1.5A fast-charge to charge tablets/smartphones
Works w/ HP Dell Lenovo MacBook iPad Pro Surface Chromebooks and Samsung Galaxy devices on multiple OS
Auto driver setup

Special orderPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

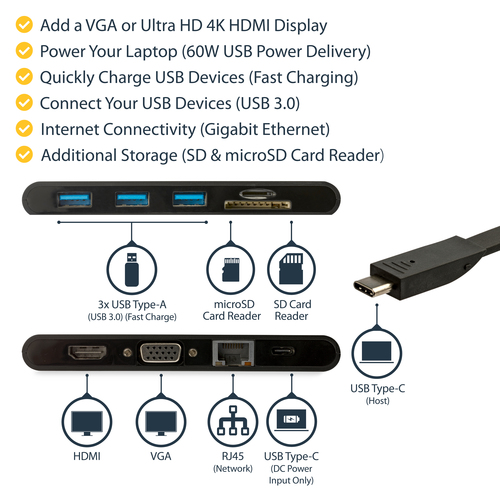

Add video output, three USB 3.0 ports, SD/micro SD card readers, and GbE port to your laptop through a single USB-C port

Turn your USB-C™ equipped laptop into a mobile workstation. This sleek, compact USB-C multiport adapter makes it easy to connect your MacBook Pro or Windows laptop to an HDMI or VGA monitor. Power through your workday, with three USB 3.0 (Type-A) ports with Fast-Charge support, SD™ and microSD™ card slots, and a Gigabit Ethernet port.

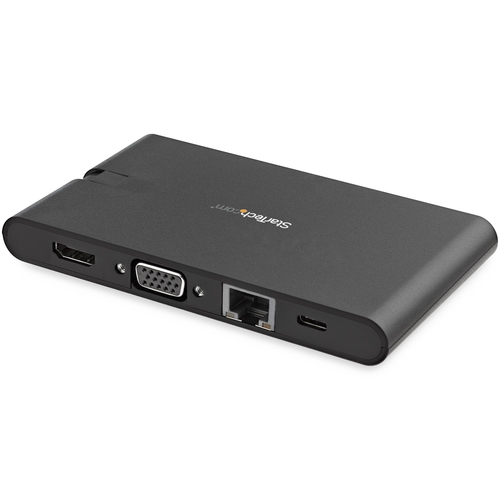

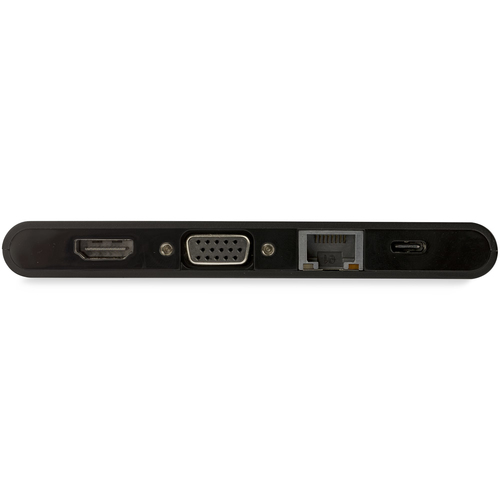

Connect to an external monitor

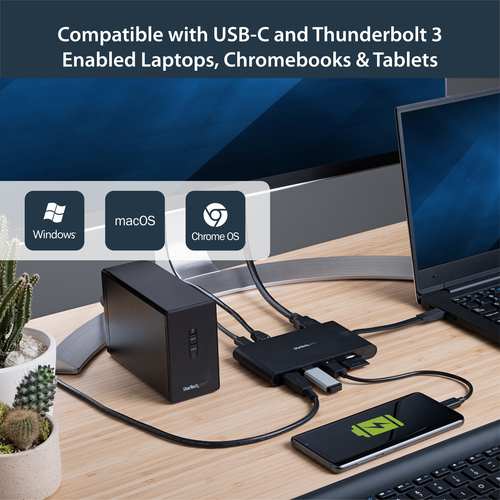

The universal USB Type-C™ multiport adapter (Thunderbolt 3 port compatible) offers enhanced productivity in the boardroom or classroom. Connect your laptop to one external monitor:

• 4K HDMI (3840 x 2160p @ 30Hz) or VGA (1920 x 1200 @ 60Hz)

Charge your laptop and peripherals

With support for USB Power Delivery 3.0 (up to 85W), the USB-C multiport adapter lets you power and charge your laptop, and power your peripherals at the same time. PD 3.0 features Fast Role Swap to prevent USB data disruption when switching power sources (bus power and USB-C power adapter).

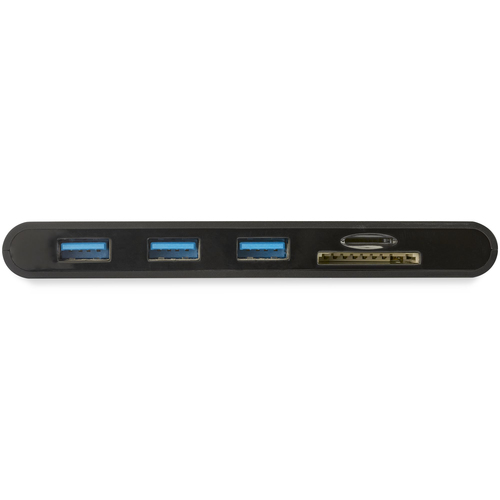

Connect USB devices

Connect your USB devices using the three USB 3.0 (Type-A) ports. Each USB port is a fast-charge and sync port, to ensure your tablet and smartphone are charged and ready. Each port offers 7.5W of charging power, with a combined total of 10W with all three ports in use.

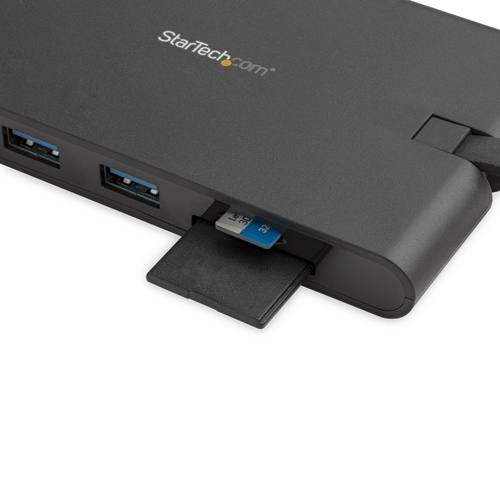

SD/microSD card access

Access the SD and microSD slots at the same time, and easily move data from one card to the other.

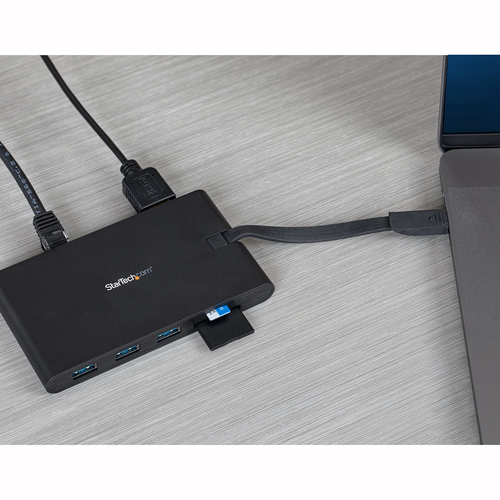

Easy portability

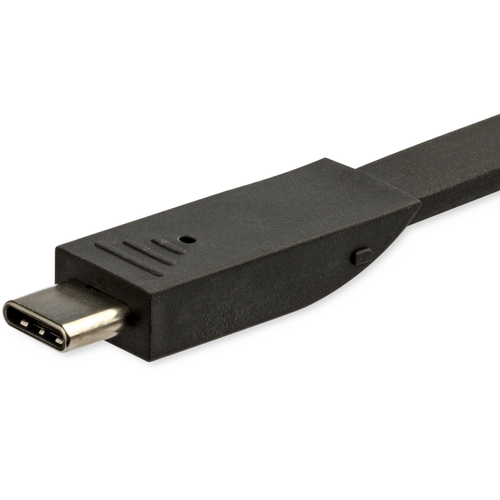

For mobile use, the USB-C adapter is bus-powered and lightweight, with a wraparound USB-C cable.

DKT30CHVSCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Microphone in: No

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X: Yes
Full duplex: Yes
10G support: No

Performance

Card reader integrated: Yes
Compatible memory cards: MMC, MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Black
UASP support: Yes
Housing material: Plastic
Certification: CE, FCC, REACH

Power

Power source type: USB

Software

Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility: Yes
Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

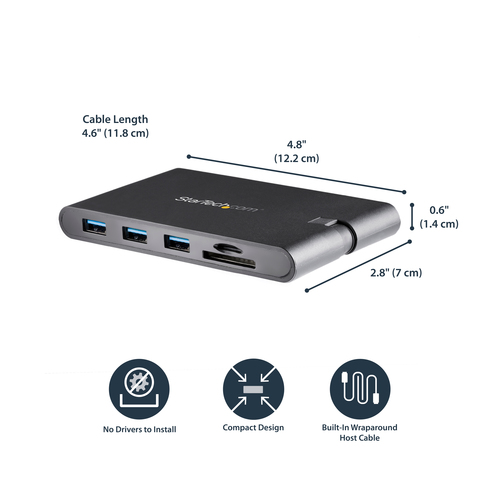

Weight & dimensions

Width: 70 mm
Depth: 122 mm
Height: 14 mm
Weight: 129 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 170 mm
Package depth: 142 mm
Package height: 30 mm
Package weight: 137 g

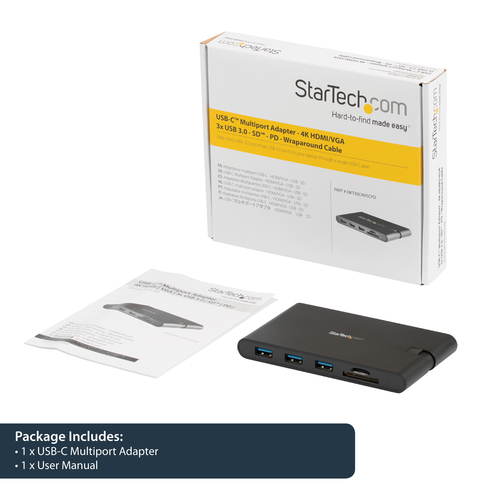

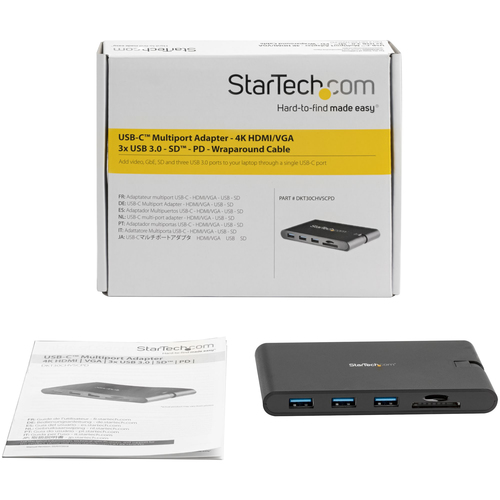

Packaging content

Manual: Yes

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 60 pc(s)
Master (outer) case width: 330 mm
Master (outer) case length: 530 mm
Master (outer) case height: 310 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.118 m
Chipset: VIA/VLI - VL102, VIA/VLI - VL817, Parade - PS8338B, Parade - PS176, Analogix - ANX9833, ALCOR MICRO - AU84612, Realtek - RTL8153
