StarTech.comLaptop Docks & Port Replicators

USB-C Docking Station - Multi Monitor HDMI/DP/DP Alt Mode USB-C Dock - 3x 4K30 / 2x 4K60 - 7-Port

Part # DK31C3MNCRUPC 065030891967Warranty: 3 Years2.3 lb

Works With Chromebook (WWCB) USB-C Laptop Docking Station
Multi-monitor via HDMI 2.0 DisplayPort 1.4 and USB-C Video Output
Port Replicator supports multimonitor video: Dual 4K 60Hz | Triple 4K 30Hz | Single Display 5K 60Hz (DP 1.4 HBR3 for max performance)
7-Port USB Hub: 2x USB-A (10Gbps) | 1x USB-A/1xUSB-C (10Gbps w/BC 1.2) | 2x USB-A (480Mbps) | 1x USB-C (10Gbps or DP Alt Mode)
3ft USB-C cable (screw-locking)
60W PD

In stockPrice on request

Reply within 1 business day
Volume & business pricing
Shipping across Canada & US

Overview

USB-C Docking Station | Triple/Dual 4K | 7x USB Hub | 60W USB Power Delivery | GbE

Connect a USB Type-C/Thunderbolt™ 4 enabled Chromebook and a combination of DisplayPort and HDMI monitors to this USB-C Docking Station. This dock supports Chromebooks and Ultra HD 4K monitors. The 3.3ft (1m) USB-C Screw Lock to USB-C Cable ensures a secure connection to the dock and host device.

Works With Chromebook (WWCB) certified

This USB-C Docking Station is tested and certified to meet Google's compatibility standards. The certification ensures seamless operation with Chromebook devices. This is the ideal dock to deploy in business and education environments. Automatic firmware updates are available through ChromeOS for maximum security, compatibility, and performance.

Enhance Productivity with Triple-4K Video

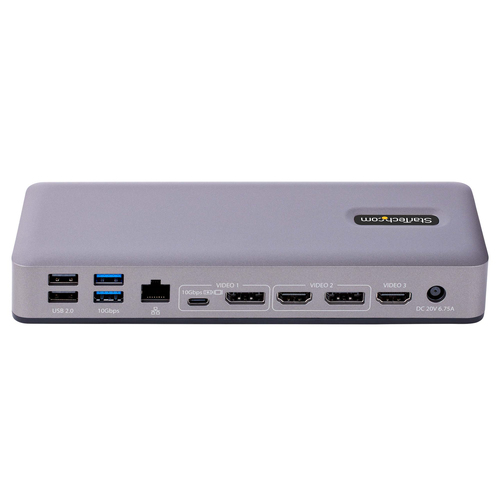

Connect a combination of one USB-C DP Alt Mode, one HDMI, and/or up to two DisplayPort monitors to the Video 1 and Video 2 Ports and connect one HDMI monitor to the Video 3 Port for a triple-monitor setup at 4K 30Hz, and features up to 4K 60Hz. High-resolution video performance is vital for applications involving detailed graphics, enhancing workplace productivity by expanding the display capabilities of Chromebook devices.

Works With Chromebook Docking Station Features

Connect the docking station to a Chromebook's USB Type-C/Thunderbolt™ 4 port to enable a variety of connectivity options and features.

• 3x USB-A ports with support for USB 10Gbps - one 1.5A charging port

• 2x USB-A ports with support for High-Speed 2.0 (480 Mbps) ports for USB-peripheral devices

• 2x USB-C ports with support for USB 10Gbps and Type-C data and 1.5A charging port, Video 1 Port (DP Alt Mode)

• 1x Gigabit Ethernet port

• 1x 3.5mm Audio Jack 4-pole TRRS for a 3.5mm headset

• 2x Kensington Security Lock Slots

60W USB Power Delivery 3.0

The USB-C Docking Station supports 60W USB Power Delivery, using the universal power adapter.

This product is backed for 3-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

This product works with devices capable of running the latest version of ChromeOS and has been certified to meet Google's compatibility standards. Google is not responsible for the operation of this product or its compliance with safety requirements. Chromebook and the Works With Chromebook badge are trademarks of Google LLC. USB Type-C® and USB-C® are trademarks of USB Implementers Forum. Thunderbolt™ is trademark of Intel.

Specifications

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 60 W
HDMI ports quantity: 2
HDMI version: 2.0b
DisplayPorts quantity: 2
DisplayPort version: 1.4
Combo headphone/mic port: Yes
Headphone outputs: 1
Headphone connectivity: 3.5 mm
DC-in jack: Yes
USB Type-C DisplayPort Alternate Mode: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Card reader integrated: No
Data transfer rate: 10 Gbit/s
HD type: 5K Ultra HD
Maximum digital resolution: 5120 x 2880 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Cable lock slot: Yes
Cable lock slot type: Kensington
Product colour: Grey
LED indicators: Activity, Power

Power

Power source type: DC
AC input voltage: 100 - 240 V
Input current: 2.37 A
Output voltage: 20 V
Output current: 6.75 A
Power consumption (typical): 135 W
Compatible power plug types: JP, US

Software

Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Sustainability

Sustainability compliance: Yes

Weight & dimensions

Width: 80 mm
Depth: 210 mm
Height: 32 mm

Packaging data

Package width: 150 mm
Package depth: 300 mm
Package height: 94 mm
Package weight: 253 g

Packaging content

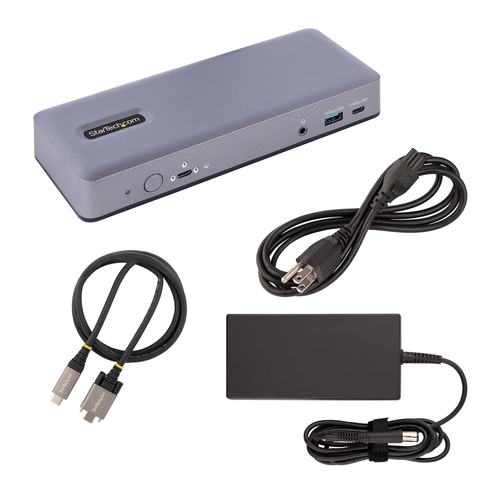

Cables included: USB Type-C to USB Type-C
AC adapter included: Yes
Quick start guide: Yes

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 487 mm
Master (outer) case length: 320 mm
Master (outer) case height: 328 mm

Other features

Chipset: Synaptics - VMM5320, Realtek -RTS5420 Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822, Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B
